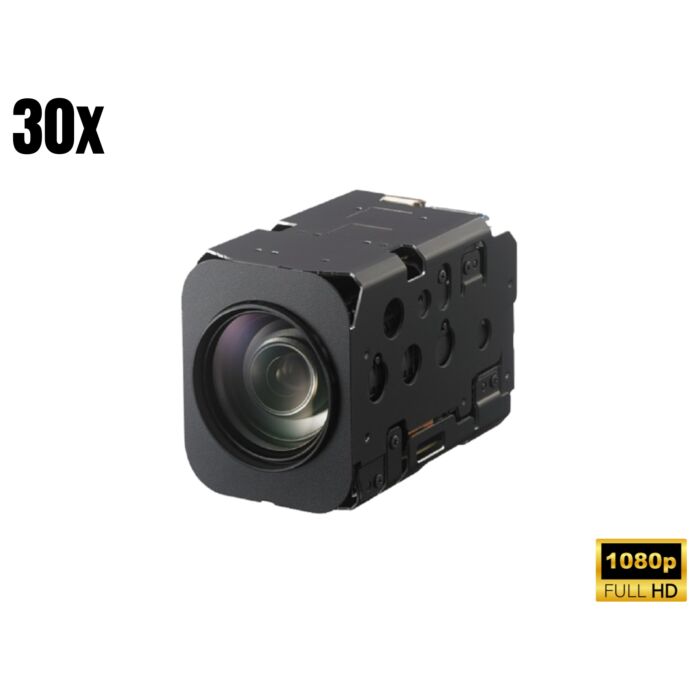

Sony FCB-EV7520 (FCBEV7520) 30x Zoom Full (1080/60p) HD Block Camera

Quick Overview

We currently have these units in stock and are accepting orders, call today for fast delivery!

Full HD Block Camera 1920 x 1080/60p, 1/2.8-type Exmor R CMOS imager, 30x optical zoom.

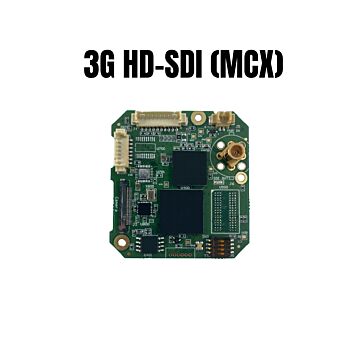

Interface Board Homepage

The Sony FCBEV7520 is discontinued on 3/31/2018.

Replacement Camera: FCBEV7520A



Utilizing the very latest Sony CMOS sensor technology the new EV series camera blocks can achieve unprecedented levels of sensitivity. The FCB-EV7520 (FCBEV7520) is equipped with a 30x optical zoom lens offering the usual flexibility expected of the Sony FCB line up. All cameras inherit a multitude of features from Sony’s world-renowned FCB Series including VISCA command protocol, Advanced Noise Reduction, Auto ICR, Spherical Privacy Zone Masking and Visibility Enhancer. These market leading features are suitable for a variety of demanding applications.

The Sony’s FCBEV-7520 (FCBEV7520) Full HD block camera is the newest of Sony’s releases in its popular block camera product line up.  This camera has become very successful in drone and UAV markets because of its high sensitivity.  A key feature is that this camera can be operated in both standard and high definition modes, allowing integration upgrades to high definition.  Aegis also offers a close up kit, housings, interfaces, etc.

Other FCB-EV7520 features include but are not limited to:

  • Capture crisp, clear Full HD (1080/60p) images
  • Fast, bright lens with rapid 30x optical zoom
  • Get a steadier picture with image stabilizer
  • StableZoom™
  • 2D/3D Noise Reduction
  • See more clearly with Visibility Enhancer and De-fog
  • Clear vision round the clock with Day/Night
  • Auto ICR (Auto IR-cut Filter Removal)
  • Spherical privacy zone masking
  • One-cable connection for simpler integration
  • Wide range of features for versatile operation

  • Applications:

  • Security Surveillance
  • Intelligent Traffic
  • Remote Monitoring
  • Video Conferencing
  • Drones
  • UAV's
  • Medical

  • Press Release

    Image Sensor 1/2.8-type Exmor R CMOS
    Number of Effective Pixels Approx.2.13 Megapixels
    Signal System Less than 1.4 lx (F1.6, ICR off)
    Minimum illumination (50%)
    High Sensitivity Mode Colour: 0.01 lx (F1.6, AGC on, 1/30s)
    Normal Mode Colour: 0.1 lx (F1.6, AGC on, 1/30s)
    S/N Ratio More than 50 dB
    Gain Auto/Manual 0 dB to 50.0dB (0 to 28 steps +2 step/ total 15 steps) - Max. Gain Limit 10.7 dB to 50.0 dB (6 to 28 steps +2 tep/ total 12 steps)
    Shutter Speed 1/1 s to 1/10,000 s, 22 steps
    Sync System Internal
    Exposure Control Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE
    Backlight Compensation Yes
    Aperture Control 16 Steps
    White Balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
    Lens 30x optical zoom f = 4.3 mm (wide) to 129.0 mm (tele) F1.6 to F4.7
    Digital Zoom 12x (360x with optical zoom)
    Focusing System Auto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF, Focus compensation in ICR on
    Horizontal Viewing Angle
    1080p Mode 63.7° (wide end) to 2.3° (tele end)
    720p Mode 63.7° (wide end) to 2.3° (tele end)
    SD 47.8° (wide end) to 1.7° (tele end)
    Minimum Object Distance 10 mm (wide end) to 1200 mm (tele end) (Default: 300 mm)
    Auto ICR Yes
    Wide-D Yes (120 dB)
    Visibility Enhancer Yes
    De-fog Yes
    HLC Yes
    Noise Reduction Yes (6 steps)
    Image Stabilization Yes
    StableZoom Yes
    Spherical Privacy Zone Masking Yes
    Motion Detection Yes
    Alarm Yes
    Slow AE Response Yes
    Picture Effects E-Flip, Nega Art, Black & White, Mirror image, Colour enhancement
    Slow Shutter Yes
    Temperature Readout Yes
    Title Display 20 characters/line, max. 11 lines
    Camera Mode Display Yes
    Key Switch Control No
    Camera Operation Switch  No
    Video Output
    HD N/A
    SD Digital: Y/Cb/Cr 4:2:2 via LVDS (Signal format conforms to SMPTE 274/SMPTE 296) - VBS
    Camera Control Interface VISCA (CMOS 5 V level) - Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 115.2 Kbps, Stop bit: 1 bit
    Power Requirements 6.0 V to 12.0 V DC
    Power Consumption 3.2 W (zoom/focus inactive) - 4.0 W (zoom/focus active)
    Operating Temperature -5°C to +60°C (23°F to 140°F)
    Storage Temperature -20°C to +60°C (-4°F to 140 °F)
    Operating Humidity 20% to 80%, Absolute humidity: 36 g/m3
    Dimensions (W x H x D) 50.0 x 60.0 x 89.7 mm (2 x 2 3/8 x 3 5/8 inches)
    Mass 255 g (9.0 oz)

    Sony FCBEV7500 Vs. Sony FCBEV7520
