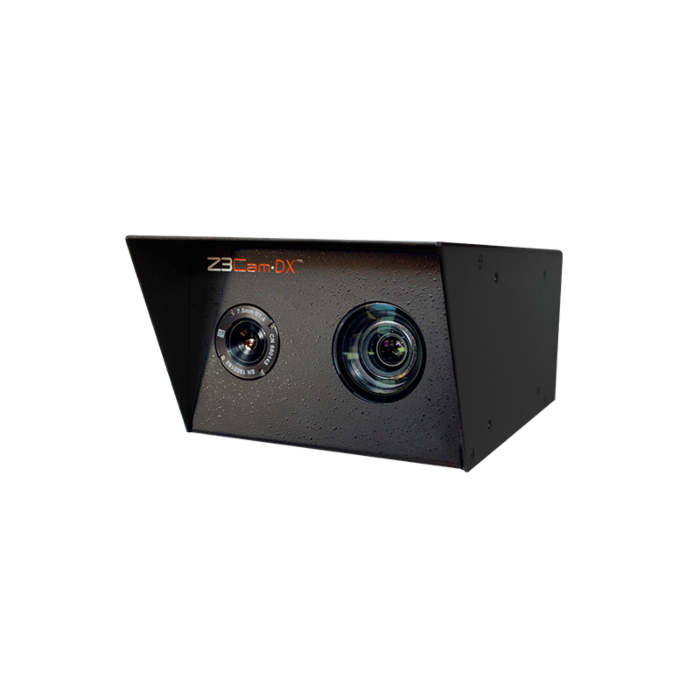

Z3 Technology Z3CAM-DX (Z3CAMDX) Dual Spectrum IP Camera

The Z3Cam-DX offers a distinctive combination of 4K Visible Video and Thermal imaging providing detailed situational awareness. The Z3Cam-DX combines video compression expertise from Z3 Technology with Sony’s worldwide leading 4K camera technology and DRS Tamarisk’s renown thermal imaging. Independently and remotely control both the 4K and thermal camera while recording and simultaneously monitoring the streams in dual or Picture-in-Picture mode.

$0.00 Please call for pricing

SKU

Z3Cam-DX model Z320-Z3

Overview

The Z3CAM-DX's latency video encoding and streaming allow for use in a variety of use cases including Industrial Applications, Intelligent Monitoring Applications, and Military Surveillance Requirements. The Z3Cam-DX brings 4K visible imaging with high contrast thermal imaging into one dynamic pairing to provide you with the ultimate imaging solution.

Features:

Real-Time Dual Camera Streaming
40x zoom using Sony’s patented super Resolution Zoom
High Contrast Thermal Imaging
Supports Sony VISCA™ camera control and DRS Tamarisk camera control simultaneously

Applications:

Industrial Applications
Intelligent Monitoring Applications
Military Surveillance Requirement

Specifications

VIDEO OUTPUTS
Composite: 1

Encode Video Codecs: H.265 H.264
Audio Interfaces: Line Level Audio

INTERFACES
GigE: 1 (with PoE support)
USB: 1 (2.0)

SOFTWARE

Output Formats: Up to 4K Ultra HD
Output Formats: RTP MPEG-2 TS

Features
VISIBLE CAMERA FEATURES 1/2.3in 4K CMOS image sensor Image capture up to 8.51 mega pixels 30x zoom in 2160p30 using Sony’s patented Super Resolution zoom 40x zoom in 1080p Noise reduction algorithm for high frequency and high detail areas Optional built in Analytics Visibility enhancer ICR (Day and Night) High sensitivity image processor and wide dynamic range Leverages Sony’s FCB-ER8530 4K camera module THERMAL CAMERA FEATURES High contrast thermal imaging camera Integrated Shutter for imaging calibration Supports 320 x 240 resolution Digital Video Pass Tamarisk control commands over IP via Web GUI or SSH Serial RS-232 control also available Image control Wht Hot, Blk Hot, Invert Revert Image contrast enhancement Leverages DRS Tamarisk camera module STREAMING FEATURES** H.265, H.264 or MJPEG encoded video over IP with no additional equipment and no distance limitations Supports 4K UHD and HD resolutions up to 30 fps (2160p, 1080p, 720p,and lower) Outputs RTP, RTSP, MPEG-2 TS or RTMP* Simultaneously stream and/or record in multiple resolutions and bitrates Supports unicast and multicast streaming Compatible with Wowza Streaming Engine™* and You Tube Live* Dual Camera Streaming Dual monitor view optional; or visible with thermal overlay picture-in-picture mode
