  • MQ013RG-ON Near IR Camera

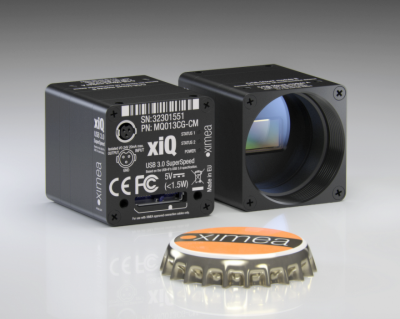

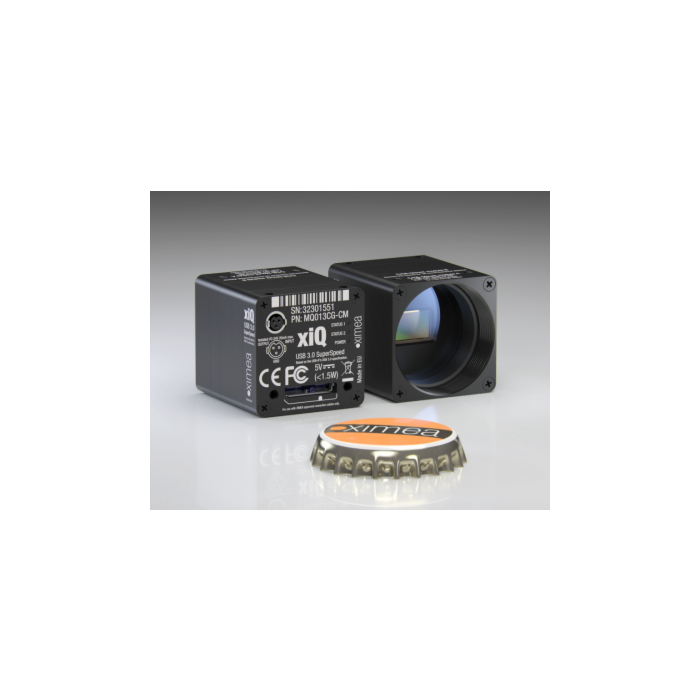

Ximea MQ013RG-ON 1.3 MP Near IR CMOS Camera

Quick Overview

The MQ013RG-ON is a 1.3 MP at 210 fps; With a flat ribbon flex cable ideal for Embedded vision systems; USB3 Vision Compliant.
Overview

1.3 Megapixel Near Infrared (NIR) enhanced CMOS Camera with USB 3.0 Check conditions for the model version with angled connector.



Features:



  • Smallest dimensions: 26 x 26 x 24 mm, 26 grams
  • 1.3 MP at 210 fps
  • With flat ribbon flex cable ideal for Embedded vision systems
  • USB3 Vision Compliant
  •


    Applications:



  • In-situ optical inspection camera
  • Fast process capturing, e.g. golf club swings
  • Intelligent Transportation Systems (ITS)
  • Open road tolling and Traffic monitoring
  • Industrial Automation
  • Machine Vision Facial Recognition
  • Motion Capture
  • Automotive crash testing
  • OCR/ OCV
  • 3D scanning
  • Robotic Arms
  • Material and Life science Microscopy
  • Ophthalmology and Retinal imaging
  • Medical Imaging
  • Flat panel inspection
  • Dental
  • Kiosks
  • Security
  • Biometrics
  • Specifications
    Specifications:
    Resolution 1.3 MP 1280 × 1024 pixels
    Sensor type CMOS Matrix B/W
    Sensor model Onsemi PYTHON 1300 NOIP1FN1300A-QDI
    Sensor size 1/2"
    Sensor active area 6.2 × 5 mm
    Pixel size 4.8 µm
    Bits per pixel 8, 10
    Dynamic range 56 dB
    Frame rates 210 fps
    Image data interface USB 3.0
    Data I/O GPIO IN, OUT
    Power requirements 1.3 Watt
    Lens mount C or CS Mount
    Weight 26 grams
    Dimensions WxHxD 26 x 26 x 26 mm
    Operating environment 50 °C
    Customs tariff code 8525.80 30 (EU) / 8525.80 40 (USA)
    ECCN EAR99
    No Video available

    MQ013RG-ON Near IR CMOS Camera
