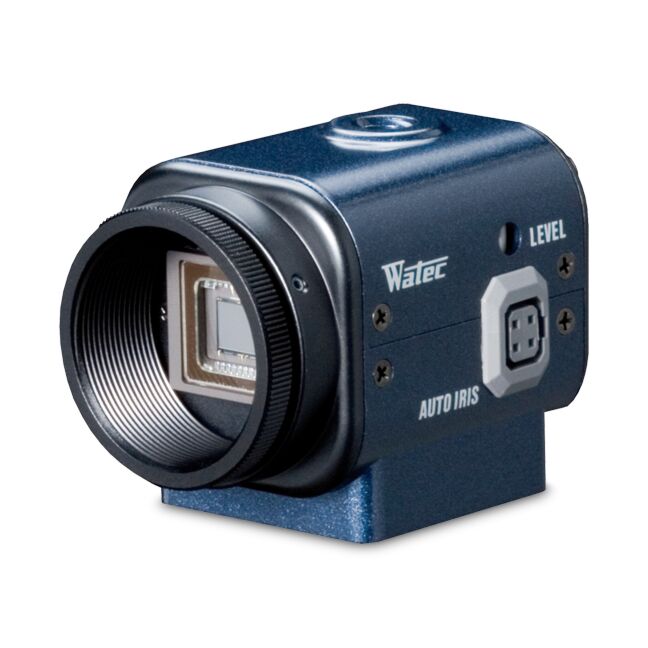

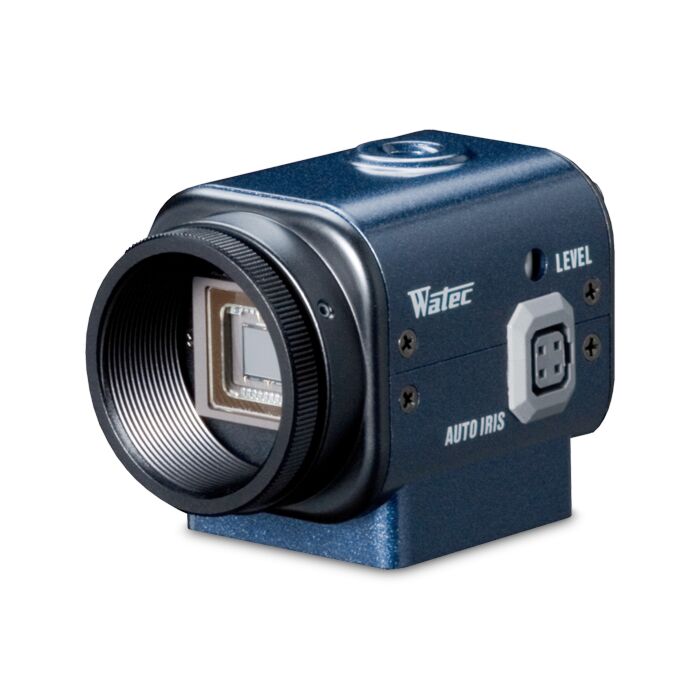

Watec WAT-902H2-SUPREME (EIA) Monochrome Industrial Camera
Monochrome Analog Industrial Camera
*Product is discontinued, Replacement Option: WAT-3500
SKU
WAT-902H2-SUP-EIA
Features:
|
|
WAT-902H2 SUPREME
|
|
Signal System
|
EIA |
|
Effective pixels
|
380k(E), 440k(C)
|
|
Resolution |
(H) 570TVL (Center) |
|
Minimum illumination
|
0.0003 lx. F1.4(2), 0.0005 lx. F1.4(3)
|
|
Gain control
|
AGC(HI:5-50dB, LO:5-32dB)
|
|
Back light compensation
|
ON
|
|
S/N ratio
|
46dB
|
|
Shutter speeds |
EI(1/60(E) or 1/50(C)-1/100,000), FL, OFF |
|
White balance |
N/A |
|
Synchronizing system |
Internal sync. |
|
Video output |
1Vp-p, 750hms, unbalanced |
|
SIN ratio |
46dB (AGC OFF) |
|
AGC |
HI: 5-50dB, LO: 5-32dB |
|
Back light compensation |
ON (Center + lower) |
|
Gamma correction |
0.45 |
|
Power supply |
DC12V±10% |
|
Current |
160mA |
|
Operating temperature |
-10°C - +40°C |
|
Storage temperature |
-30°C - +70°C |
|
Dimensions(WxHxL) |
35.5 x 36 x 63 (mm) |
|
Weight |
90g |
