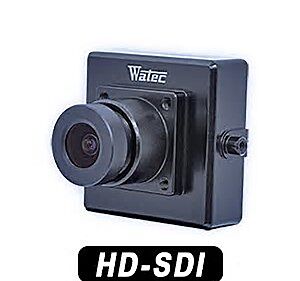

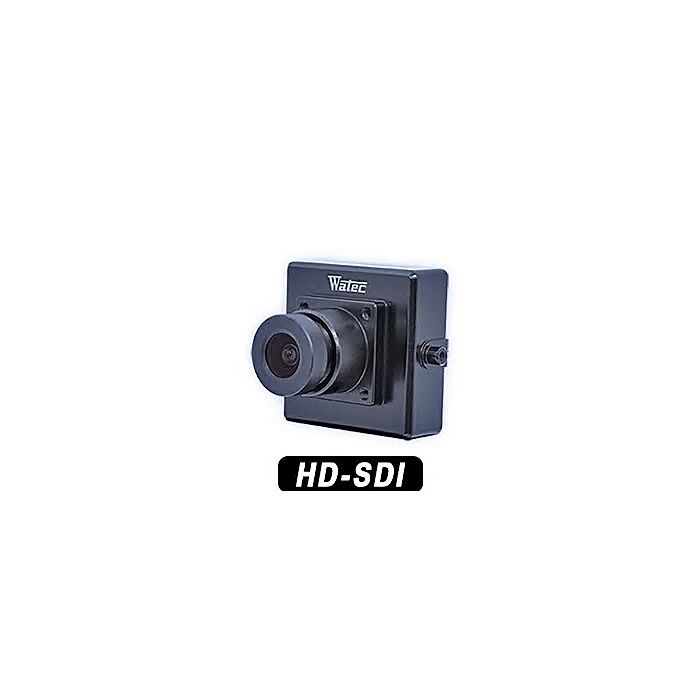

Watec WAT-30HD (WAT30HD) G3.7 Day/Night Hybrid HD-SDI Ultra-Compact Camera

The Watec WAT-30HD G3.7 HD-SDI Camera is ultra small and discreet with full HD imaging capabilities. It is ideal for limited space environments in a number of different applications, particularly when you need an unobtrusive design.

*Product is discontinued Replacement Options: WAT-06U2D

SKU
WAT-30HD/CS

The Watec WAT-30HD G3.7 HD-SDI Camera also features a double shutter function, with advanced settings available via its on screen display.

Features:

  • Only 30mm square with 35g achieves 2.1 Megapixel HD-SDI
  • “Double shutter” & “Digital” wide dynamic range selectable
  • Advanced setting available by OSD (On screen display) through on-camera joystick
  • SD/analogue output for checking image at set up
  • Various optional M12 lenses available
  • Sensor type 1/3 inch CMOS image sensor
    Number of total pixels 1944(H) × 1092(V)
    Unit cell size 2.75μm × 2.75μm
    Imaging system RGB primary color bayer arrangement mosaic filters on chip
    Synchronizing system Internal
    Scanning system Progressive
    Video output HD-SDI / Composite video
    Output format 1080/30p, 1080/25p, 720/60p, 720/50p, NTSC, PAL
    Resolution 9000TVL
    Minimum illumination 0.1lx F1.8 (DSS=OFF), 0.01lx F1.8 (DSS=MAX)
    S/N More than 52dB
    Function settings OSD (On Screen Display) operated by joystick
    AE mode AUTO, MANUAL, FLICKER
    Shutter speed 1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000, 1/30000, 1/60000 sec
    Slow shutter OFF, x2, x4, x8, x16, x32
    White balance AUTO, AUTO EXT, PUSH LOCK, MANUAL
    AGC 12 - 60dB
    Day/Night AUTO, COLOR, B&W
    3D noise reduction OFF, LOW, MIDDLE, HIGH
    Wide dynamic range Double shutter: ON / OFF
    Digital: ON / OFF
    Back light compensation ON (Area selectable) / OFF
    White blemish correction Yes
    Defog ON (LOW, MIDDLE, HIGH) / OFF
    Digital zoom 1.0x - 20.0x
    Privacy mask 16 masks
    Mirror image OFF, H-FLIP, V-FLIP, HV-FLIP
    Motion detection ON / OFF
    HLMASK ON / OFF
    Power Supply DC+12V±10%
    Power Consumption 1.44W (120mA)
    Operating Temperature -10 - +50℃
    Storage Temperature -20 - +60℃
    Operating / Storage Humidity 80% RH or less / 95% RH or less (Without condensation)
    Lens Mount M12
    Weight Approx. 35g
    Accessory Cable
