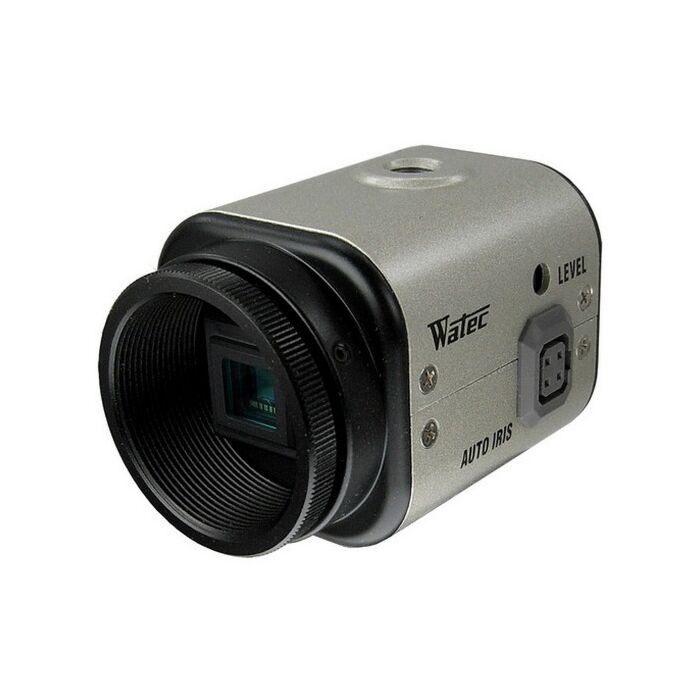

Watec WAT-250D NTSC, DSP Color Analog Camera

DSP Color Analog Camera


*Product is discontinued, Replacement Option: WAT-1200CS

SKU
Watec WAT-250D

The WAT-250D is a 1/3" formatted color camera solution for those industries which demand image perfection in a miniature package. The WAT-250D provides high resolution images and is smaller in size then its brother the WAT-231S.

The WAT-250D's light weight, compact size and easy to use functionality, make it the top choice for Medical Imaging, Hobby Related, Rapid deployment and Security applications. It's affordable, convenient and easy to use.

Features:

  • 1/3" CCD
  • 450 Lines
  • 0.1 Lux
  • Auto Iris
  • Ultra Compact & Lightweight

  • Applications:
  • Medical Imaging
  • Hobby Related
  • Rapid Deployment
  • Security Applications
  • Industrial
  • Signal System
    NTSC
    Pick-up element
    1/3 inch Interline transfer CCD image sensor
    Number of total pixels
    811(H)×508(V) (NTSC)
    Effective pixels
    768(H)×494(V) (NTSC)
    Unit cell size 6.35μ m(H)×7.4μ m(V)(NTSC)
    Scanning system 2:1 interlace
    Synchronizing system Internal
    Video output Composite video, 1Vp-p, 75ohm Unbalanced
    Resolution(Horizontal) 450TV lines (Center)
    Minimum illumination 1.0 lx. F1.2 (AGC High)
    4.0 lx. F1.2 (AGC Low)
    Gamma Correction γ≒0.45(ON), 1.0(OFF)
    AGC ON=8~ 36dB(High), 8~ 24dB(Low) / OFF=fix 12dB
    S/N Ratio 50dB(AGC OFF, γ=1.0)
    AE mode

    EI(Electronic Iris):1/60~ 1/10000sec.(NTSC)

    FL(Flicker Less):1/100sec.(NTSC)

    ES(Electronic Shutter):OFF 1/60 NTSC

    Back light compensation ON / OFF selectable
    White balance Auto trace
    Preset: 3200K, 4200K, 5100K, 6300K
    Push lock White Balance
    Lens mount CS-mount
    Installation screw U 1/4inch (D=5mm) (Top/Bottom)
    Connection terminal Video out(BNC), Power, Auto iris
    Power supply DC +10.8~ 13.2V (12V±10%)
    Current max. 190mA
    Operating temperature -10℃ ~ +40℃
    Storage temperature -30℃ ~ +70℃
    Dimensions 43.5(W)×44.0(H)×64.5(D)mm
    Weight Approx. 160g
    Accessories DC-plug(WPDC12), Hex key wrench, Iris-plug(AIC)
