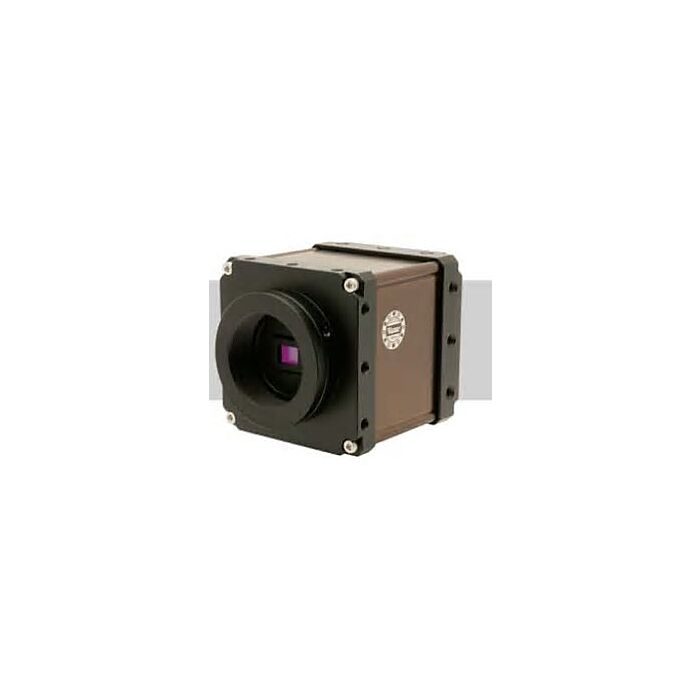

  • Watec WAT-2300 Image 1

Watec WAT-2300 (WAT2300) HD-TVI Full HD Color Camera

Quick Overview

1/2.8-inch 2M CMOS sensor w/ 0.1lux. HD resolution of 1080p30 Full HD. White blemish correction, Defog, Mirror Image and RS-232 compatible w/ OSD.

The Watec WAT-2300 has been replaced with the WAT-2200P.


This is our high quality solution to the TVI output requests. The new 2300 is miniature in size abundant in features! The TVI format affords you the ability to make longer video cable runs, making it a drop in replacement to those installations where you previously had a low resolution camera set. Fully adjustable via our RC-01 (remote control), the OSD menu tree offers the ability to make necessary function changes as you require.


  • 1/2.8-inch 2M CMOS image sensor with 0.1 lux native light sensitivity
  • Digital interface HD-TVI without latency and degradation, HD resolution of 1080p30 Full HD
  • Long transmission distance without boost (3C-2V:150m, 5C-2V:300m)
  • Existing infrastructure doesn’t need to be replaced, just change their old analog cameras and DVRs to TVI cameras and DVRs to get a brand new 1080p surveillance system without extra cost
  • White blemish correction, Defog, Mirror Image, RS-232 compatible
  • OSD (On screen display) – Easy installation through a controller provided in kit
  • Specifications
    Sensor Type 1/2.8-inch CMOS image sensor
    Number of total pixels 1952(H) x 1236(V)
    Number of effective pixels 1080i/1080p: 1920(H) x 1080(V) / 720p: 1280(H) x 720(V)
    Unit cell size 2.8µm × 2.8µm
    Imaging system RGB+W array mosaic filters on chip
    Synchronizing system Internal
    Scanning system Progressive
    Video output HD-TVI
    Output format 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p/25
    Minimum illumination  0.1 lx. F1.2
    S/N More than 50dB
    Function settings OSD(On Screen Display) / RS-232, Remote Controller
    AE mode E.I+AGC, AGC, FL, MANUAL
    Shutter speed OFF, 1/100, 1/120, 1/200, 1/500, 1/1000, 1/2000, 1/5000, 1/10000 sec.
    Flickerless mode AUTO, 50Hz, 60Hz, OFF
    MGC 0 - 30dB
    Gamma Characteristics ON / OFF
    Noise reduction HIGH, MEDIUM, LOW, OFF
    Wide Dynamic Range ON (ART) / OFF
    Lens Iris DC
    Back light compensation ON / OFF
    White blemish correction 1023 pixels
    Defog ON / OFF
    Mirror Image ON (H-FLIP, V-FLIP, ROTATE) / OFF
    Power Supply DC+12V±10%
    Power Consumption 1.92W/160mA (720p60)
    Operating Temperature -10 - +50℃
    Storage Temperature -30 - +70℃
    Operating / Storage humidity 95%RH or less (Without condensation)
    Lens mount CS mount (Back focus adjustable)
    Weight Approx. 130g
    Accessories WPDC12-R (DC plug), Hex. wrench, RC-02 (Remote controller), Tripod adaptor
