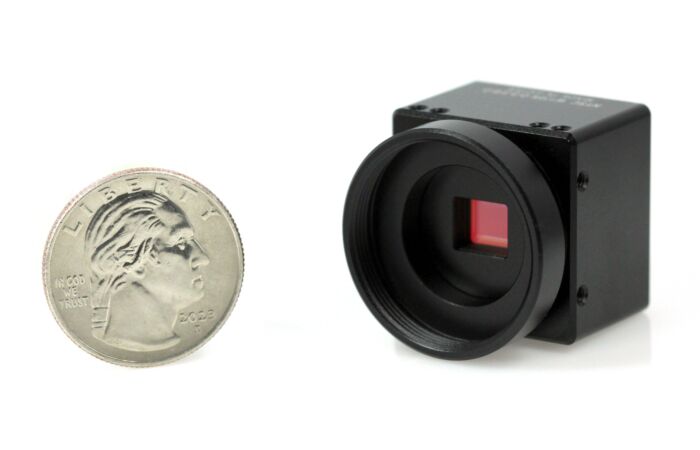

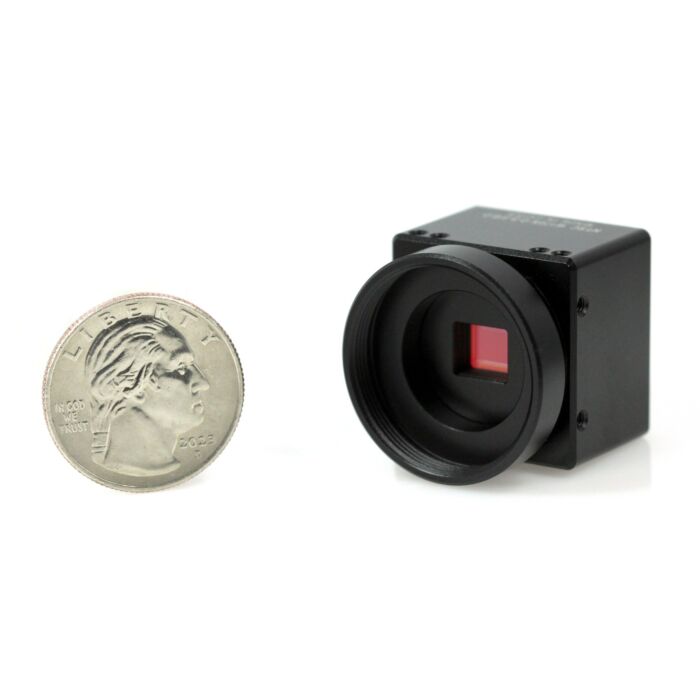

Watec WAT-1200CS 1/3.2" CCD High Sensitivity Color Day/Night Camera

Quick Overview

The WAT-1200CS is Watec's new high resolution (750tvl), low light, day/night solution provided to you in an ultra-miniature package!

Call For Quantity Pricing!!!


Availability: In stock


At nearly an inch all the way around, this miniature enclosed, CS mount type day/night camera has OSD interface allowing you to customize the camera features making it compatible with nearly all applications. Upon request this camera can be modified to accommodate RS232 interface for full custom controls.


  • High sensitivity min. illumination 0.005 lx F1.8 (AGC 54dB) Wide dynamic range, ICR Mechanical less Day/Night function
  • Advanced setting available by OSD (On Screen Display) through an optional controller
  • 2DNR ON (Level adjustable)
  • Noise Reduction
  • Wide Dynamic Range
  • Defog and Privacy Mask
  • Mirror Image

  • Applications:

  • Surveillance
  • Low Light and low visibility
  • Security
  • Inspection
  • POV Functions
  • UAV
  • Specifications
    CCD Sensor 1/3.2"
    Resolution 750
    Power DC+5V - +12V
    P-Supply AD901 1212P5
    Version NTSC/PAL
    Lux 0.002
    SNR (S/N) 55dB
    Shutter 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/20000, 1/50000, 1/100000
    CSen/LFno F1.2
    Dimension 26 x 26 x 30
