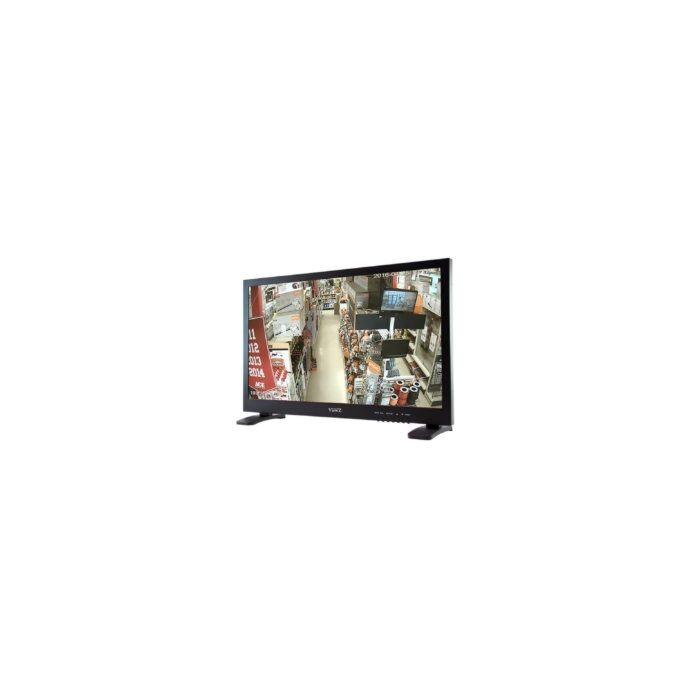

VZ-27HX (VZ27HX) 27″ Hybrid Premium Full HD CCTV Monitor
The VZ-27HX is a Premium Metal Bezel Hybrid Full HD LED CCTV Monitor for Professional Security applications. The VZ-27HX is the replacement for the VZ-27LX.
SKU
VZ-27HX
Get the knowledge and service to choose the perfect ViewZ Monitor for your application.
Features:
Applications:
Display
| Screen Size | 27″ |
| Max Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.3114 mm x 0.3114 mm |
| Brightness | 300 cd/m²(Typical) |
| Contrast Ratio | 3000 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 Million |
| Response Time | < 21ms |
Interface
| AV (AHD, TVI, CVI) In / Out | 1 / 1 |
| AV (CVBS) In / Out | 1 / 1 |
| HDMI In | 1 |
| VGA In (15Pin D-Sub) | 1 |
| USB In (Media Player) | 1 |
| PC Audio In / AV Audio In | 1 / 1 |
Audio
| Built in speaker | 5W X 2 |
Special Features
| Filter Type | 3D Comb-filter / De-Interlace |
| Image Retention | Support |
| Hybrid Input – AHD, TVI, CVI | Support |
| Multi-Lingual Language | English, Deutsch, French, Spanish, Italian |
Media Player
| External Storagel | Support SD CARD (Max.64GB), USB (2TB) |
| VIDEO Format | RM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4 |
| AUDIO Format | MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCM |
| Image Format | JPEG, TIF, PNG, BMP |
| VIDEO Resolution | 1080P @60Hz |
Dimensions & Weight
| Outline Dimension (W x H x D) | 25.33” x 16.82” x 7.08” / 643.5 mm x 427.3 mm x 180 mm |
| Net Weight | 20.65 lbs / 9.37 kg |
| Gross Weight | 29.80 lbs / 13.52 kg |
Mount
| Vesa | 75mm x 75mm & 100 mm x 100 mm / ( M4 x L10 mm ) x 4 |
General Summary
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | AC 100-240V (50/60Hz) |
| Power – Consumption | ≤ 45 w |
| Regulations | FCC(A), CE, WEEE |
| Operating Temperature | Humidity | 14°F ~ 122°F / -10°C ~ 50°C | 20 ~ 70% RH |
| Compatible Mounts – Wall | VZ-WM50, VZ-AM02-A |
| Compatible Mounts – Ceiling | VZ-CMKiT-01, VZ-CMKiT-02 |
