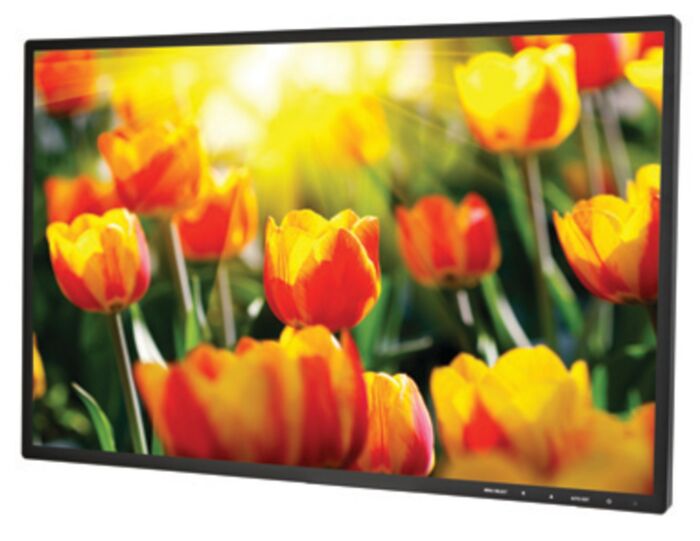

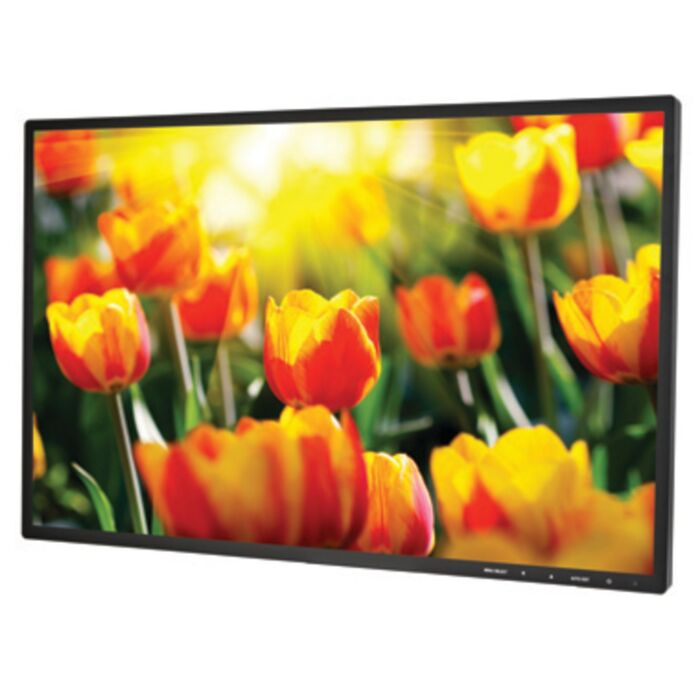

Tru-Vu VMHTP-55H (VMTHP55H) 55" High-Bright Touch Screen Monitor
The VMHTP-55H high-bright touchscreen monitors provide excellent image quality in bright ambient light conditions. The projected capacitive touchscreen provides exceptional accuracy and multi-touch capability on a huge 55” screen.
SKU
VMHTP-55H-TruVu
The VMHTP-55 is ideal for controlling systems on ships, in factories, command and control centers, ticket kiosks, vending systems and more. The VMHTP-55H can also be customized from an extensive list of available options.
Features:
Applications:
| Model | VMHTP-55H |
| LCD Panel | LED Backlights |
| Display Resolution | 1920 x 1080 (Full HD) 1080p/60 |
| Viewable Area | 46.62” (W) x 26.79” (H) (1209.6 x 680.4 mm) |
| Pixel Pitch | 0.63mm |
| Display Colors | 16.7 M |
| Aspect Ratio | 16:9 |
| Brightness | 500 nits |
| Contrast Ratio | 4,000:1 |
| Viewing Angle | 178° (H) x 178° (V) |
| Response Time | 6.5 msec (gray to gray) |
| Control | OSD (On-Screen Display) via Pushbutton or Remote Control |
| Video Inputs | VGA, HDMI, DisplayPort |
| Power Requirement | 90-240 VAC |
| Power Consumption | TBD |
| Enclosure | Black Powder-Coated Steel |
| Mounting | 200x200mm, 200x400mm Rear VESA Holes |
| Operating Temperature | --4°F to +140°F (-20° to +60°C) |
| Humidity | 10-90% RH |
| Vibration | 1.5G RMS 10-300Hz |
| Dimensions | TBD |
| Weight | TBD |
