Tru-Vu VMOBWP-8.4B (VMOBWP8.4B) 8.4” Daylight Readable Waterproof Panel- Mount Monitor

VMTRWP-15 Image #1

Tru-Vu VMTRWP-15 (VMTRWP15) 15” Panel-Mount Waterproof Touch Screen Monitor

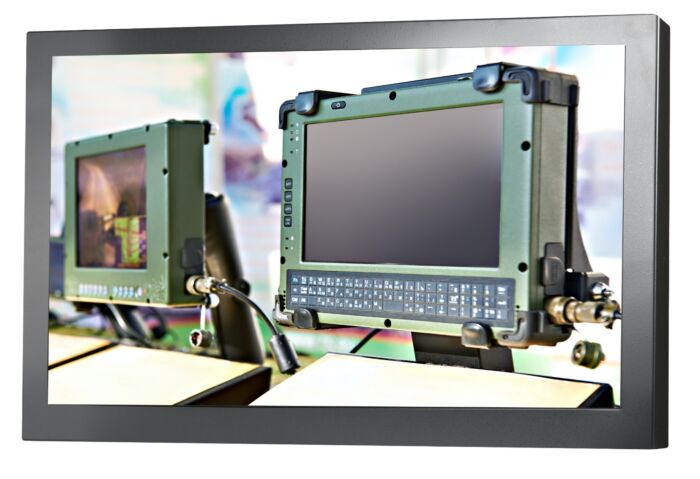

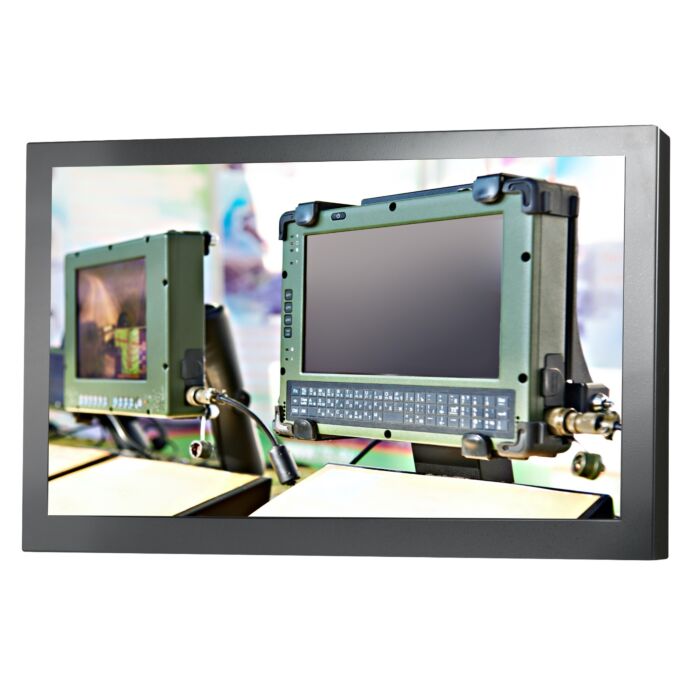

Tru-Vu VM-13.3 (VM13.3) 13.3” Industrial-Grade LCD Monitor

Tru-Vu's VM-13.3 Series industrial-grade LCD monitors ofer brilliant color and superb image quality while providing the reliability and rugged performance required by demanding applications.
SKU
VM-13.3

The VM-13.3 Series monitors are built with industrial-grade components, and receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes: RTV silicone on all connections and critical components; all wires are dressed, tie-wrapped and secured; and ThreadLock on all screws.



Features:



  • Full HD Resolution: 1920 x 1080 (1080p/60)
  • Video Inputs: VGA, HDMI, DVI
  • Rugged Powder-Coated Steel Enclosure
  • Lockable On-Screen Display (OSD) Controls
  • Auto Re-Start After Power Loss
  • TRU-Tuf Ensures Maximum Shock and Vibration Resistance
  • Can Be Customized to Meet Your Needs
  • 3 Year Warranty
  •


    Applications:



  • Industrial
  • Mobile
  • Military
  • Inspection
  • Applications
  • Model VM-13.3H VM-13.3C
    LCD Panel 13.3” AHVA LCD; LED Backlights
    Display Resolution 1920 x 1080 (1080P/60 Full HD
    Viewable Area 11.55” (W) x 6.50” (H) (293.472 x 165.078 mm)
    Pixel Pitch 0.15285mm
    Display Color 16.2 M
    Aspect Ratio 16:9
    Brightness 400 nits
    Contrast Ratio 800:1
    Viewing Angle 178° (H) x 178° (V)
    Response Time 25msec Trf
    Control OSD (On-Screen Display) via Rear Panel Pushbuttons
    Video Inputs VGA, HDMI                   VGA, DVI
    Power Requirement 12 VDC (90-240 VAC via Included Power Brick)
    Enclosure Powder-Coated Steel
    Mounting 100 x 100mm Rear VESA Mount Holes
    Operating Temperature 32° to 158° F (0° to +70° C)
    Humidity 5-90% RH
    Shock 50 G (20 msec, 1/2 sine)
    Vibration 1.5G RMS 10-200 HZ
    Dimensions 12.39” (W) x 7.66” (H) x 1.06” (D) (314.6 x 194.6 x 37 mm)
