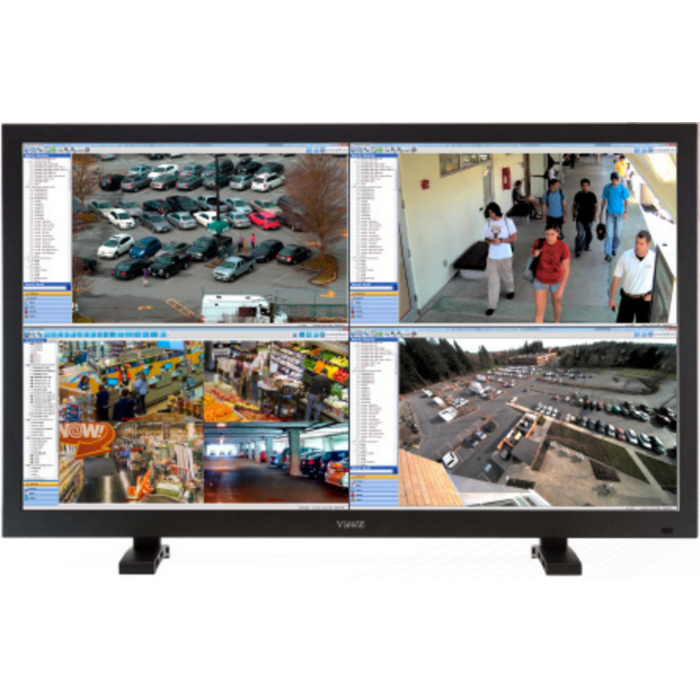

ViewZ VZ-65UHD (VZ65UHD) 4K UHD/Quad View LED Monitor
Experience the Power of ViewZ VZ-65UHD 4K UHD/Quad View LED Monitor
Unlock the potential of your industrial and machine vision applications with the ViewZ VZ-65UHD 4K UHD/Quad View LED Monitor. This professional-grade display boasts a generous 65” LED ULTRA HD panel, offering unparalleled clarity and precision in visual data analysis. With its stunning 4K resolution of 3840x2160 and a wide 16:9 aspect ratio, every detail is rendered with breathtaking clarity. The monitor's IPS panel technology ensures a wide viewing angle of 178°/178°, perfect for collaborative environments or monitoring stations.
Equipped with advanced features such as MVA technology and V-by-One® INTERFACE, the ViewZ VZ-65UHD delivers exceptional image quality and performance. Its multi-display functionality allows for Picture-in-Picture (PIP), dual, or quad-view configurations, enhancing productivity and workflow efficiency. Whether it's security surveillance, application monitoring, or production monitoring, this monitor excels in diverse industrial settings.
Featuring a sleek design and robust construction, the ViewZ VZ-65UHD is built to withstand the rigors of industrial environments. Its Auto Source/Power Recovery feature ensures uninterrupted operation, while the included Universal Wall Mount offers flexible installation options. Elevate your machine vision applications with the ViewZ VZ-65UHD and experience the ultimate in visual clarity and reliability.
Features:
- 65” LED ULTRA HD Panel
- 4K Resolution (3840x2160)
- Wide Viewing Angle (IPS Panel)
- MVA Technology & V-by-One® INTERFACE
- Multi-Display Functionality (PIP/Dual/Quad)
- Auto Source/Power Recovery
- Sleek Design and Robust Construction
- Universal Wall Mount Included
Applications:
- Security Surveillance
- Application Monitoring
- Production Monitoring
| VIDEO | |
| Screen Size | 65" |
| Max. Resolution | 3840 x 2160 @ 60Hz |
| Active Display Area (H/V) | 0.124mm x 0.374mm |
| Brightness | 400cd/m² (Typical) |
| Contrast Ratio | 400:1 |
| Aspect Ratio | 16 : 9 (1.78 : 1) |
| Viewing Angle (H/V) | 178° / 178° |
| Display Color | 1.07G (8-bit+FRC) |
| Response Time | < 9.5 ms |
| INTERFACE | |
| Diplay Port In | 1 |
| HDMI (2.0) / HDMI (1.4) In | 1/3 |
| Audio Out (L/R) | 1 |
| SPECIAL FEATURES | |
| Multi Display Function | PIP / Dual / Quad |
| Image Retention | Yes |
| DIMENSIONS & WEIGHT | |
| Outline Dimension | 57.15(W)” x 33.18(H)” x 2.2(D)” 1451.7 mm x 842.9 mm x 55.8 mm |
| Net Weight | 127.86 lbs (58.0 kg) / 136.68 lbs (62.0 kg) |
| MOUNT | |
| Universal Wall Mount | 400mm x 400mm |
| GENERAL | |
| Power | AC100 ~ 240V(50/60Hz) ≤ 150 W |
| Power - Consumption | 215W |
| Warranty - Parts | 3 Year / 3 Year |
| Warranty - MTBF (Approx.) | 50,000 Hours |
| Operating Temperature | 32 - 122°F / 0°C ~ 50°C |
| Operating Humidity | 40~60% R |
| Compatible Mounts - Wall | VZ-WM71 |
