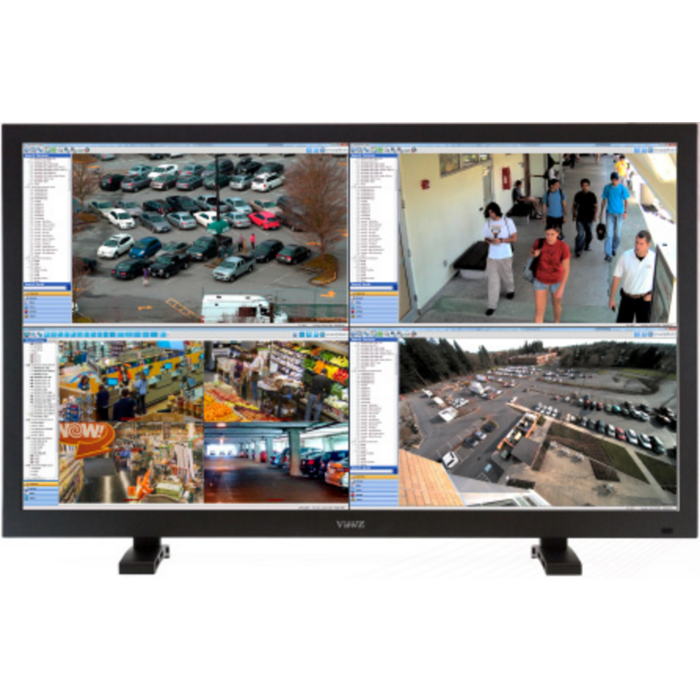

ViewZ VZ-55UHD (VZ55UHD) 4K UHD/Quad View LED Monitor
Experience Superior Visuals with ViewZ VZ-55UHD 4K UHD/Quad View LED Monitor
Elevate your industrial monitoring with the ViewZ VZ-55UHD 4K UHD/Quad View LED Monitor, offering unparalleled clarity and precision in visual data analysis. With its expansive 55” LED ULTRA HD panel, this monitor supports 4K (3840X2160) resolution, ensuring every detail is captured with utmost clarity. Whether in Mode 1 for pristine 4K resolution or Mode 2 for Picture-by-Picture (PBP), Picture-in-Picture (PIP), or Quad view, this monitor delivers versatile performance tailored to your needs.
Utilizing MVA technology and the V-by-One® interface, the ViewZ VZ-55UHD guarantees exceptional color reproduction and image stability, crucial for accurate analysis in machine vision applications. Its wide viewing angle and quick response time further enhance usability, while features like Auto Source/Power Recovery streamline operation.
Ideal for security surveillance, application monitoring, and production monitoring, this monitor ensures comprehensive oversight and detailed analysis. With multiple connectivity options including Display Port, HDMI, DVI-D, and VGA, seamless integration into existing setups is effortless. Don't compromise on visualization quality; invest in the ViewZ VZ-55UHD for unparalleled performance in industrial vision applications.
Features:
- 55” LED ULTRA HD Panel
- Supports 4K (3840X2160) Resolution
- MVA Technology & V-by-One® INTERFACE
- Auto Source / Power Recovery
- Wide Viewing Angle (IPS Panel)
- Multi Display Function (PIP / Dual / Quad)
Applications:
- Security Surveillance
- Application Monitoring
- Production Monitoring
| VIDEO | |
| Screen Size | 55" |
| Max. Resolution | 3840 x 2160 @ 60Hz |
| Active Display Area (H/V) | 0.315mm x 0.315mm |
| Brightness | 350cd/m² (Typical) |
| Contrast Ratio | 1200:1 |
| Aspect Ratio | 16 : 9 (1.78 : 1) |
| Viewing Angle (H/V) | 178° / 178° |
| Display Color | 1.07G (8-bit+FRC) |
| Response Time | < 6 ms |
| INTERFACE | |
| Diplay Port In | 1 |
| HDMI (2.0) / HDMI (1.4) In | 1/1 |
| DVI-D | 1 |
| VGA In (15Pin D-Sub) | 1 |
| Audio In | 1 |
| SPECIAL FEATURES | |
| Multi Display Function | PIP / Dual / Quad |
| Image Retention | Yes |
| DIMENSIONS & WEIGHT | |
| Outline Dimension | 49(W)” x 28.5(H)” x 3.14(D)” 1246.9 mm x 725.2 mm x 79.9 mm |
| Net Weight | 67.90 lbs (30.80 kg) / 83.44 lbs (37.85 kg) |
| MOUNT | |
| Universal Wall Mount | 200mm x 300mm |
| GENERAL | |
| Power | AC100 ~ 240V(50/60Hz) ≤ 150 W |
| Power - Consumption | 150W |
| Warranty - Parts | 3 Year / 3 Year |
| Warranty - MTBF (Approx.) | 50,000 Hours |
| Operating Temperature | 32 - 104°F / 0°C ~ 40°C |
| Operating Humidity | 20~80% R |
| Compatible Mounts - Wall | VZ-AM03, VZ-WM71, VZ-XMS |
| Compatible Mounts - Ceiling | VZ-CMKiT-04 |
