ViewZ VZ-43CMP 43″ Black Panel Widescreen LED “A” Commercial-Grade Monitor

ViewZ VZ-43UHD (VZ43UHD) 4K UHD/Quad View LED Monitor

Enhance industrial vision with ViewZ VZ-43UHD 4K UHD/Quad View LED Monitor. Multi-display, MVA technology for crisp visuals. Perfect for production and security.
SKU
VZ-43UHD

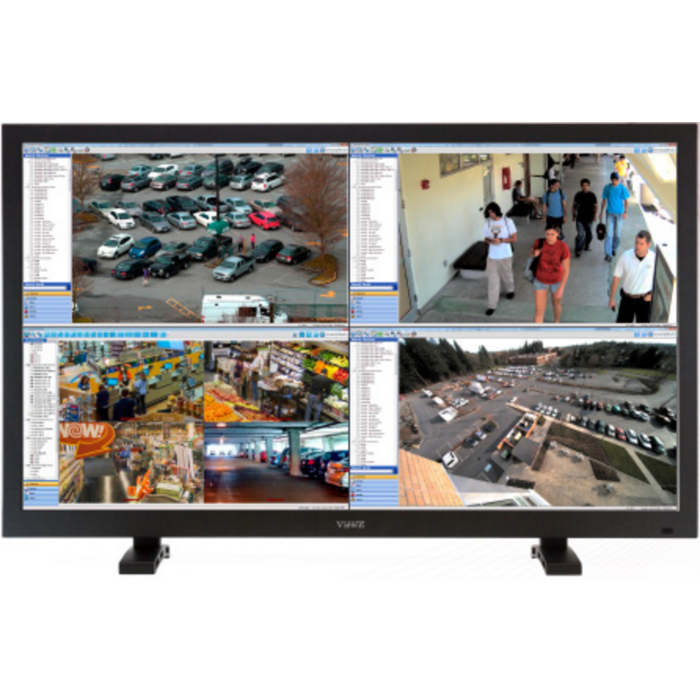

ViewZ VZ-43UHD 4K UHD/Quad View LED Monitor

Unleash the power of precision with the ViewZ VZ-43UHD 4K UHD/Quad View LED Monitor, designed to meet the demanding needs of industrial and machine vision applications.

This 43-inch LED Ultra HD panel boasts a stunning 4K (3840x2160) resolution, ensuring every detail is captured with unparalleled clarity. Equipped with advanced features such as Multi-Display Functionality, MVA Technology, and V-by-One® INTERFACE, this professional monitor delivers crisp visuals and enhanced performance.

Its wide viewing angle, powered by an IPS panel, ensures optimal visibility from any vantage point. With modes for Picture-in-Picture, Picture-by-Picture, and Quad View, it offers versatile display options tailored to your specific requirements.

Whether used for security surveillance, application monitoring, or production control, the ViewZ VZ-43UHD excels in delivering real-time insights and facilitating informed decision-making.

Featuring a range of connectivity options including DisplayPort, HDMI, DVI-D, and VGA, along with audio input, this monitor seamlessly integrates into existing setups. Robust construction, combined with a sleek design, makes it suitable for various mounting options, further enhancing its adaptability.

Elevate your industrial vision with the ViewZ VZ-43UHD, where precision meets performance.

Features:

  • 43” LED ULTRA HD Panel
  • Supports 4K (3840X2160) Resolution
  • Multi-Display Functionality (PIP / Dual / Quad)
  • MVA Technology & V-by-One® INTERFACE
  • Wide Viewing Angle (IPS Panel)
  • Picture-in-Picture, Picture-by-Picture modes
  • Versatile Connectivity (DisplayPort, HDMI, DVI-D, VGA, Audio)
  • Robust Construction
  • Sleek Design

Applications:

  • Security Surveillance
  • Application Monitoring
  • Production Control
VIDEO
Screen Size 43"
Max. Resolution 3840 x 2160 @ 60Hz
Active Display Area (H/V) 0.2451mm x 0.2451mm
Brightness 260cd/m² (Typical)
Contrast Ratio 1100:1
Aspect Ratio 16 : 9 (1.78 : 1)
Viewing Angle (H/V) 178° / 178°
Display Color 1.07G (8-bit+FRC)
Response Time < 8 ms
INTERFACE
Diplay Port In 1
HDMI (2.0) / HDMI (1.4) In 1/1
DVI-D 1
VGA In (15Pin D-Sub) 1
Audio In 1
SPECIAL FEATURES
Multi Display Function PIP / Dual / Quad
Image Retention Yes
DIMENSIONS & WEIGHT
Outline Dimension 38.11(W)” x 22.51(H)” x 3(D)” 968.2 mm x 565.2 mm x 78.5 mm
Net Weight 40.23 lbs (18.25 kg) / 49.38 lbs (22.4 kg)
MOUNT
Universal Wall Mount 200mm x 300mm
GENERAL
Power  AC100 ~ 240V(50/60Hz) ≤ 150 W
Power - Consumption 90W
Warranty - Parts 3 Year / 3 Year
Warranty - MTBF (Approx.) 50,000 Hours
Operating Temperature 32 - 104°F / 0°C ~ 40°C
Operating Humidity 20~80% R
Compatible Mounts - Wall VZ-AM03, VZ-WM71, VZ-XMS
Compatible Mounts - Ceiling VZ-CMKiT-04
