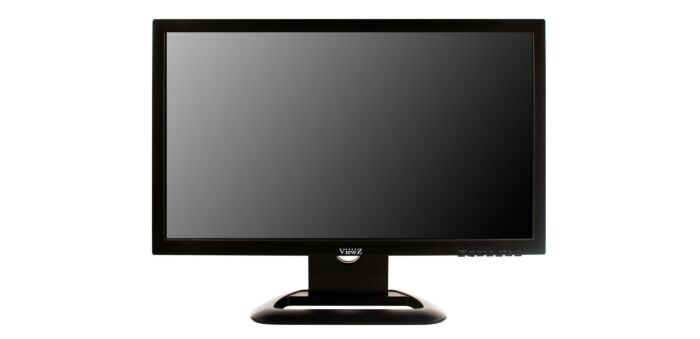

ViewZ VZ-215iPM (VZ215iPM ) 21.5" Full HD LED IP Input Monitor

Elevate your industrial vision systems with the ViewZ VZ-215iPM monitor. Experience Full HD clarity and effortless multi-camera viewing. Simplify your setup today!
SKU
VZ-215iPM

Unleash Enhanced Industrial Vision with ViewZ VZ-215iPM

ViewZ VZ-215iPM stands as a pinnacle solution for industrial and machine vision applications, offering a seamless blend of innovation and functionality. Boasting a 21.5" Full HD LED display, this monitor ensures unparalleled clarity and precision, crucial for intricate visual inspections and monitoring tasks. Its IP input capability elevates compatibility, allowing seamless integration with various IP cameras, including popular models like Axis, Bosch, Vivotek, and ViewZ IP-PVM series.

Designed with efficiency in mind, the VZ-215iPM streamlines operations by eliminating the need for a client PC. Equipped with one Ethernet 10/100 port, two USB ports, and a micro SD port, it provides versatile connectivity options to meet diverse industrial needs. This monitor excels in multitasking, capable of handling 4 to 8 cameras simultaneously. Furthermore, its sequential and 9-camera viewing modes offer flexibility in monitoring setups, ensuring comprehensive coverage of critical areas.

With rugged construction and VESA wall mount compatibility, the VZ-215iPM seamlessly integrates into industrial environments, delivering reliable performance even in demanding conditions. Whether it's quality control, production monitoring, automated inspection, robotics guidance, or surveillance, this monitor empowers industries to enhance efficiency and accuracy in their visual monitoring processes. Elevate your industrial vision systems with the ViewZ VZ-215iPM, where precision meets reliability for unmatched performance.

Features:

  • 21.5" Full HD LED display
  • Ethernet and USB connectivity
  • Sequential and 9-camera viewing modes
  • Compatible with Axis, Bosch, Vivotek cameras
  • VESA wall mount support

Applications:

  • Quality control
  • Production monitoring
  • Automated inspection
  • Robotics guidance
  • Surveillance
Screen Size 21.5"
Resolution 1920 x 1080 @60Hz
Pixel Pitch 0.248mm x 0.248mm
Brightness 250cd/m²(Typical)
Contrast ratio 1000:1
Aspect Ratio 16 : 9
Viewing Angle (H/V) 170°/160°
Display Color 16.7 Million
Response Time < 5ms
Frequency (H) 31 ~ 80Khz
Frequency (V) 50 ~ 75Hz
Ethernet 10/100 1
USB 2.0 2
Micro USB 1
PGM (Manufacture Only) 1
Micro SD 1
Android OS Ver. 5.1.1
CPU RK3368 64bit Octa core Cortex A53
RAM 2GB DDR3
Storage 8GB (Nand-Flash)
External Storage Micro SD up to 32GB / USB 2.0 up to 2TB
Support Video File Format MKV, WMV/VC-1 SP/MP/AP, MPG, MPEG, AVI, MOV, MP4, RM, H.264, dat, RV 8/9/10
Support Video Codec H.264, MPEG4, RMVB, Xvid, Divx, H.264, VP8, WMV, HTML, FLASH
Support Image File Format JPG, JPEG, MJPEG, PNG
Sequential Viewing Mode Basic ViewZ App support
9Ch Viewing Mode Basic ViewZ App support
Outline Dimension 20.28 x 15.375 x 7.25 / 515 x 390 x 184 mm
Net Weight / Gross Weight 4.31 Kg (9.50 lbs) / 5.68 Kg (12.52 lbs)
VESA 100 mm x 100 mm / M4 x 10 mm
Transmitter - IR Remote Control Yes
Power - Electrical Ratings DC 12V, 3.3A (AC100 - 240V(50/60Hz)
Warranty - Parts / Labor
               - MTBF (Approx.)
3 Year / 3 Year
50,000 Hours
Operating Temperature 32 - 140°F / 0 - 60°C
Multi-lingual Language English, German, Spanish, French, Italian, Portuguese, Netherlander, Russian
Compatible Mounts - Wall VZ-WM05, VZ-WM11, VZ-AM01
Compatible Mounts - Rack VZ-RMK 08
