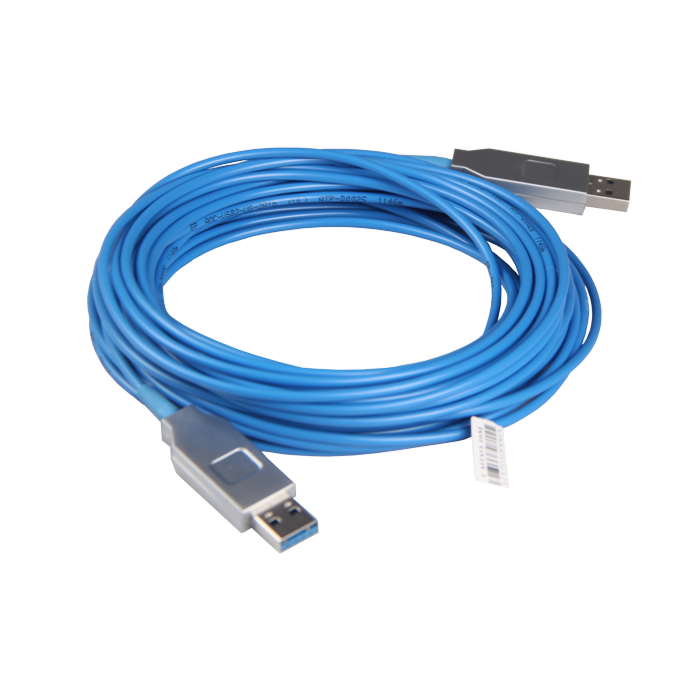

USB 3.0 High Flex Active Cables: Unibrain
The USB 3.0 High Flex Active Optical cables offer a high flex kevlar core, which can withstand more than 10 million bend cycles at a 50′ radius and exceptional durability and performance in tough industrial environments without any compromise in weight and thinness (3.0 mm).
Lengths and Order part numbers:
10m (33ft) Type-A to Type-A High Flex USB 3.0 AOC (Part # 1812)
20m (65ft) Type-A to Type-A High Flex USB 3.0 AOC (Part # 1814)
30m (99ft) Type-A to Type-A High Flex USB 3.0 AOC (Part # 1815)
50m (164ft) Type-A to Type-A High Flex USB 3.0 AOC (Part # 1816)
100m (328ft) Type-A to Type-A High Flex USB 3.0 AOC (Part # 1817)
The USB 3.0 Active Optical Cable (AOC) is designed to be compliant with SuperSpeed USB electrical specifications, offering seamless interoperability between existing USB 3.0 hosts, hubs and devices, ensuring a trouble-free plug-and-play experience and exceptional performance in harsh environments with high EMI and RFI.
Features
- Maximum Length: 100 meters (33o ft)
- Core diameter: 3.0 mm +/- 0.2 mm
- Maximum transmission speed: 5 Gbps
- Backward compatible with USB 2.0/1.1 with use of included USB Super(TM) adapter.
- Hot-plugging, no driver required
- Host side/Device Side: USB 3.0 Type-A plug. Connector dimensions: 40 mm / 17 mm/ 8 mm
- Specification of Fiber Optical Cable: OM1 dual 62.5 um core Fiber, high flex kevlar.
- Bend radius: 20 mm
- Supply voltage: 4.75 – 5.25V
- Power dissipation: 0.58W
- Device supply current: Max 5V/900mA (up to 30m), 600 mA for 50m
- Operating conditions: 0′ 55′ C, 15%-85% humidity
- Max temperature gradient: 6′ C per hour
- Compliance: CE/RoHS/UL 758
