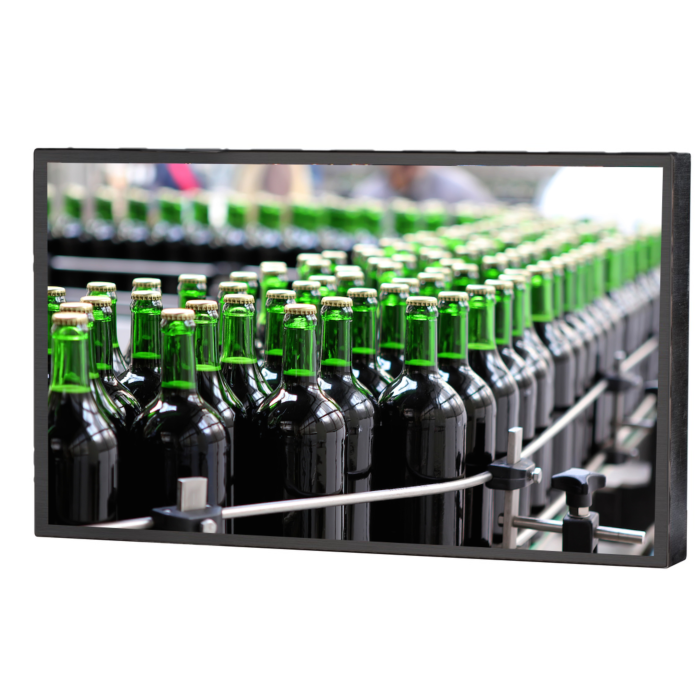

Tru-Vu VMTR-8.4C-24 (VMTR8.4C24) 8.4” Touch Screen LCD Monitor
The VMTR-8.4 Touch Screen monitor utilizes 5-wire resistive touch technology; the screen can be activated via a finger, gloved hand, credit card or stylus. State-of-the-art LED backlights to produce images that are exceptionally clear and bright; the touch contact activation points are extremely accurate.
SKU
"VMTR-8.4C-24 -TruVu"
The VMT-8.4 Series Touch Screen LCD monitors are built with industrial-grade components and receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components; all wires are dressed, tie-wrapped and secured; and ThreadLock on all screws.
Features:
Applications:
| VMTR-8.4C-24 | |
| LCD Panel | 8.4” Color LCD; LED Backlights |
| Resolution |
800 x 600 (SVGA)
|
| Viewable Area |
6.70” x 5.03” / 170.4 x 127.8 mm
|
| Pixel Pitch |
0.213 mm
|
| Display Colors |
16.2 Million
|
| Aspect Ratio |
4:3
|
| Brightness |
450 nits
|
| Contrast Ratio |
600:1
|
| Viewing Angle |
160° (H) x 140° (V)
|
| Response Time |
30 msec
|
| Control |
OSD (On-Screen Display) via Rear Panel Pushbuttons
|
| Video Inputs |
VGA, DVI
|
| Power Requirement | 12-24VDC |
| Power Consumption | 10.4W (866 mA @ 12 VDC) |
| Enclosure |
Powder-Coated Steel
|
| Mounting |
75 X 75 mm VESA
|
| Operating Temperature | -22˚to +140˚F (-30˚ to +60˚C) |
| Shock |
50G, 20ms, Half-sine wave
|
| Vibration |
1.5G (10-200 Hz, P-P) 30 mins./axis (X,Y,Z)
|
| Dimensions | 8.74” (W) x 6.30” (H) x 1.66” (D) (222 (W) x 160 (H) x 42.20 (D) mm) |
| Weight | 2.73 lbs. (1.24 kg) |
