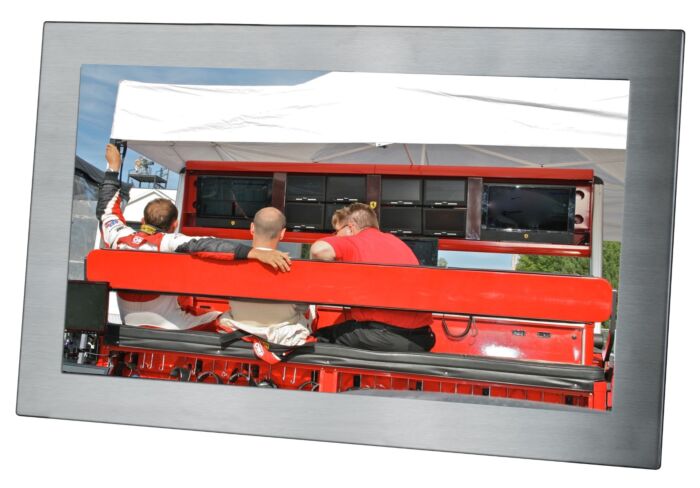

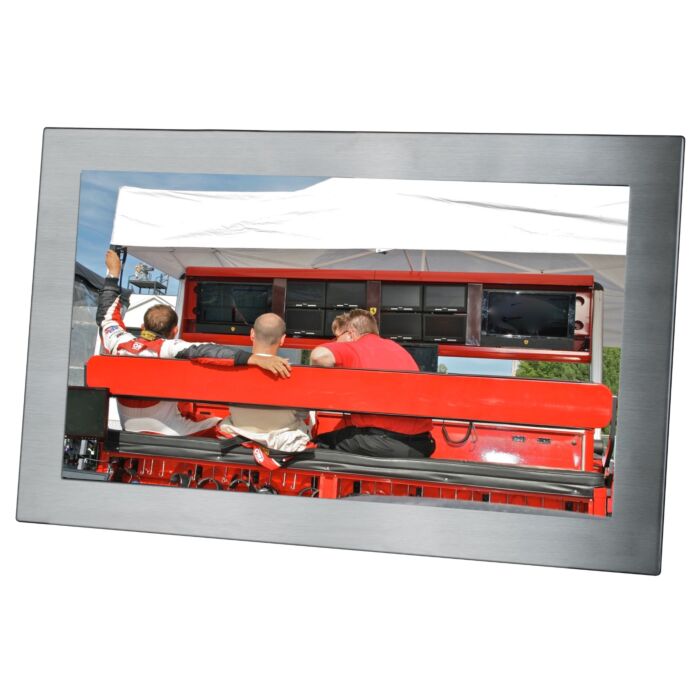

Tru-Vu SRMWP-10.1R-24 (SRMWP10.1R24) 10.1” Sunlight Readable Waterproof Panel- Mount Monitor
The SRMWP-10.1R-24 Sunlight Readable monitors with waterproof panel-mount enclosure are designed for use in direct bright sunlight or other high ambient light environments. The 1,000 nits of brightness ensure bright, crystal-clear images. The stainless steel panel-mount enclosure enables you to flush mount it into walls, dashboards, kiosks, and machinery. The NEMA 4X front face ensures resistance to water. The SRMWP-10.1R-24 is ideal for use in outdoor kiosks, on ships, for digital signage, industrial control systems, outdoor advertising, military systems, sports stadiums, and more.
SKU
SRMWP-10.1R-24 10.1” Sunlight | Waterproof Panel- Mount Monitor
TRU-Vu's SRMWP-10.1R-24 industrial LCD monitor is specifically designed for use in demanding applications. Every TRU-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability.
Features:
Applications:
| MODEL | SRMWP-10.1R-24 |
| LCD Panel | 10.1” Color TN Panel; LED Backlight |
| Resolution | 1024 x 600 |
| Viewable Area | 8.76” (W) x 4.9” (H) (222.72 x 125.28mm) |
| Pixel Pitch | .2175 x .2088mm |
| Display Colors | 16.7m |
| Aspect Ratio | 16:9 |
| Brightness | 1,000 nits |
| Contrast Ratio | 500:1 |
| Viewing Angle | 140º (H) x 120º (V) |
| Response Time | 16 msec Trf |
| Control | OSD (On-Screen Display) via Rear Panel Pushbuttons |
| Video Inputs | VGA, HDMI, DisplayPort |
| Power Requirement | 12-24 VDC (with Locking Power Pigtail) |
| Power Consumption | 13W |
| Enclosure | NEMA 4X Stainless Steel Panel-Mount with Rear Clamp |
| Operating Temp | +14° to 140° F (-10° to 60° C) |
| Shock | 50G Half-sine |
| Vibration | 1.5G RMS 10-200Hz |
