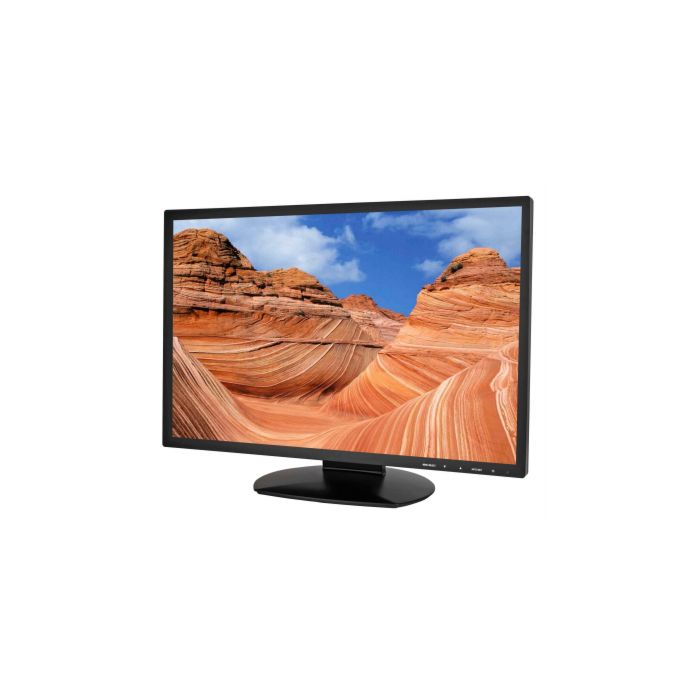

Tru-Vu VMTR-21.5R (VMTR21.5R) 21.5” Touch Screen Monitor

The VMTR-21.5R Touch Screen monitors are designed for maximum light transmission and superb optical clarity.
SKU
"VMTR-21.5R -TruVu"

They have a very durable glass surface, with the highest level of scratch-resistance of any touch technology. The VMTR-21.5R Touch Screens are ideal for use in a wide range of military, industrial, law enforcement, aviation, marine, inspection, advertising and transportation applications.

The VMTR-21.5R is a 5-Wire Resistive Touch Screen. This model can be activated with nearly any type of device: exposed finger, glove, stylus, pointer, etc. Its immunity to surface contaminants (oil, water, dirt) makes it a popular choice for more challenging environments. It is a very cost-effective choice for public access, kiosks and more.

Features:

  • Full HD Resolution: 1920 x 1080 (1080p/60)
  • SAW or 5-Wire Resistive Touch or Capacitive
  • Video Inputs: VGA, HDMI, DVI, Composite (BNC)
  • Internal Speakers
  • Lockable On-Screen Display Controls
  • Can Be Customized To Meet Your Needs
  • Auto Re-Start After Power Loss
  • 3-Year Warranty

  • Applications:

  • Military
  • Industrial
  • Law Enforcement
  • Aviation
  • Marine
  • Inspection
  • Advertising
  • Transportation Applications
  •   VMTR-21.5R
    LCD Panel 21.5” Color LCD; LED Backlights
    Touch Technology 5-Wire Resistive
    Touch Interface USB
    Resolution 1920 x 1080 (1080p/60 Full HD)
    Viewing Area
    18.76” x 10.55” (476.6 x 268.1 mm)
    Pixel Pitch
    0.248mm
    Display Colors
    16.7 Million
    Aspect Ratio
    16:9
    Brightness
    250 nits
    Contrast Ratio
    3,000:1
    Viewing Angle 178° (H) x 178° (W)
    Response Time 25 msec Trf
    Control
    OSD (On-Screen Display) via Pushbuttons
    Video Input Connectors VGA, HDMI & DisplayPort
    Video Inputs VGA, HDMI, Composite BNC Input, Composite BNC Output
    Power Requirement 12 VDC/90-240 VAC
    Power Consumption 25W
    Enclosure ABS
    Mounting Included Base or 100 x 100 mm Rear VESA Mount Holes
    Operating Temperature/Humidity 32° to 140°F (0° to +60°C); 5-90% Non-Condensing
    Shock
    50G, Half-sine Wave, 20ms, X/Y/Z
    Vibration
    Acceleration: 1.5 G RMS; Random Wave; 10-200Hz; 30 mins Per Axis (X,Y,Z)
    Dimensions 20.68” W x 12.60” H x 2.18” D (525.3 x 320 x 55.4mm)
    Weight 9.8 lbs. (4.5 Kg)
    Included Accessories VGA Cables
    Warranty 3 Years
