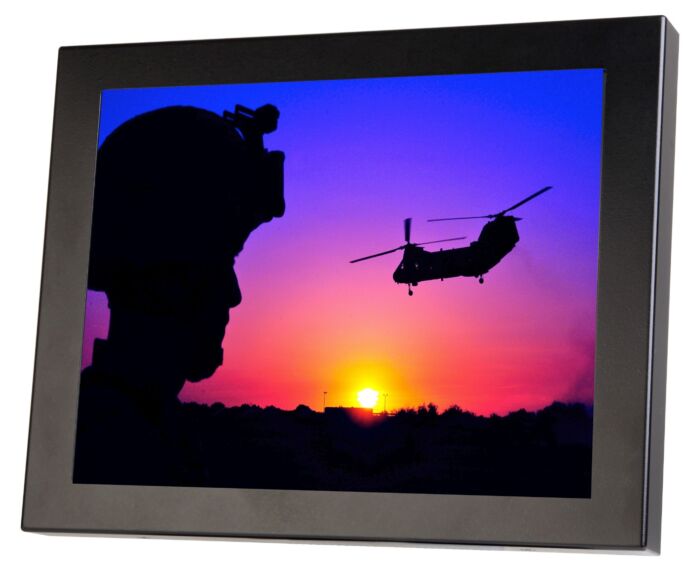

Tru-Vu VMOB-10.4S-24 10.4” Daylight Readable LCD Monitors

The VMOB-10.4 Series are optically-bonded LCD monitors, designed to dramatically improve viewability in high ambient light conditions.
SKU
VMOB-10.4S-24-TruVu

The optical bonding process injects an optical-grade epoxy bond between the surface of the LCD panel and the outer protective glass, eliminating the air gap between the two. This eliminates two reflective surfaces, and drastically reduces image wash-out due to internal reflections. The outer glass surface also has an AntiGlare coating. The net result is a dramatic reduction in unwanted reflections, and a tremendous increase in contrast ratio, making the monitor ideal for use in brightly lit areas and daylight outdoors. Optical bonding also provides other benefits such as increased ruggedness and durability, prevents condensation or fogging, and makes the outer glass shatter-proof.

The VMOB-10.4 Series Daylight Readable LCD monitors are built with industrial-grade components, and receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes: RTV silicone on all connections and critical components; all wires are dressed, tie-wrapped and secured; and ThreadLock on all screws. This, plus the rugged powder-coated steel enclosure, ensures maximum shock and vibration resistance. These monitors are ideal for a wide range of demanding applications including industrial, military, law enforcement, aviation, marine, inspection, surveying, cranes, oceanic, entertainment and transportation.

Features:

  • Optical Bonding Produces Clear, Bright Images Even in Bright Daylight Conditions
  • Anti-Glare Protective Outer Glass
  • TRU-Tuff Ensures Maximum Shock & Vibration Resistance
  • Rugged Steel Enclosure
  • Can Be Customized To Meet Your Needs

  • Applications:

  • Industrial
  • Military
  • Law Enforcement
  • Aviation
  • Marine Inspection
  • Surveying
  • Cranes
  • Oceanic
  • Entertainment
  • Transportation
  •
    VMOB-10.4S-24
    LCD Panel 10.4” LED Backlight LCD
    Display Resolution 800 x 600 (SVGA)
    Viewing Area 8.31” (W) x 6.23” (H) (211.2 x 158.4 mm)
    Pixel Pitch 0.264 mm
    Display Colors
    16.2 Million
    Aspect Ratio
    4:3
    Brightness 1,000 nits
    Contrast Ratio
    1000:1
    Viewing Angle
    160° (H) x 140° (W)
    Response Time
    30 msec Trf
    Control
    OSD (On-Screen Display) via Rear Panel Pushbuttons
    Video Inputs VGA, S-Video & Composite (BNC) NTSC/PAL Auto-Detect
    Power Requirement
     11-28 VDC (90-240 VAC with included power brick)
    Power Consumption
    10.4W (866 mA @ 12 VDC)
    Enclosure
    Powder-Coated Steel
    Mounting 75 x 75mm VESA
    Operating Temperature -31° to +167° F (-35° to +75° C)
    Shock 50G, 20ms, Half-sine wave
    Vibration 1.5G (10-200 Hz, P-P) 30 mins./axis (X,Y,Z)
    Dimensions 10.1” (W) x 7.9” (H) x 1.7” (D) / 256.53 (W) x 200.66 (H) x 43.18 (D) mm
    Weight 3.8 lbs. (1.7 kg)
