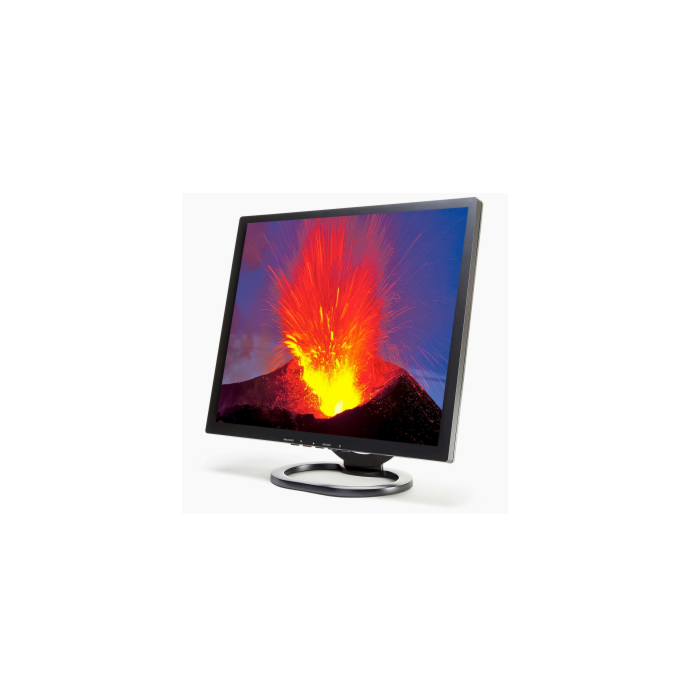

Tru-Vu VMM-19B-24 (VMM19B24) 19" Customizable Industrial-Grade Monitors
The VMM-19 Series monitors offer a variety of video inputs, 350 nits brightness, and reliable long-term performance. These are also available in standard, open frame, rack mount, panel mount, and touch screen optional configurations. An extensive list of available OEM options enables you to customize a solution to your specific needs.
SKU
VMM-19B-24
-TruVu
Tru-Vu industrial LCD monitors are specifically designed for use in demanding industrial, commercial, medical and A/V applications. Every Tru-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/ consumer-grade monitors. This ensures superior image quality, improved performance and greater durability.
Features:
Applications:
|
VMM-19B-24
|
|
| LCD Panel | 19” TFT Color LCD |
| Resolution | 1280 x 1024 (SXGA) |
| Viewing Area | 14.81” (W) x 11.85” (H) (376.17 x 300.98 mm) |
| Pixel Pitch | 0.294mm x 0.294mm |
| Display Colors |
16.7 Million
|
| Aspect Ratio | 4:3 (5:4) |
| Brightness |
350 nits
|
| Contrast Ratio |
1,000:1
|
| Viewing Angle |
170° (H) x 160° (V)
|
| Response Time |
5 msec Trf
|
| Control |
OSD (On-Screen Display) via Front Panel Pushbuttons
|
| Video Inputs | VGA, Composite (BNC Loop-Thru) NTSC/PAL Auto-Recognition |
| Analog Video In/Out | 1 BNC Input / 1 BNC Output |
| In / Output Impedance | 75Ω / Auto Terminating Output |
| Audio | Dual Front Speakers |
| Power Requirement | 24 VDC/ 90-240 VAC with Included Power Brick |
| Power Consumption | 30 Watts |
| Enclosure | ABS |
| Mounting | Via Included Mounting Stand or Rear 75x75mm VESA Mount Holes |
| Operating Temperature | 32° to 132° F / 0º to 55º C |
| Humidity |
5-90% RH
|
| Shock | 50 G (20 msec,1/2 sine) |
| Vibration | 1.5 G RMS 10-200Hz |
| Approvals | UL/cUL, FCC, CE, TUV, RoHS |
| Dimensions | 16.75” (W) x 14.83” (H) x 1.95” (D) / 425.45 (W) x 376.68 (H) x 49.52 (D) mm |
| Weight | 11 lbs. / 5 kg |
