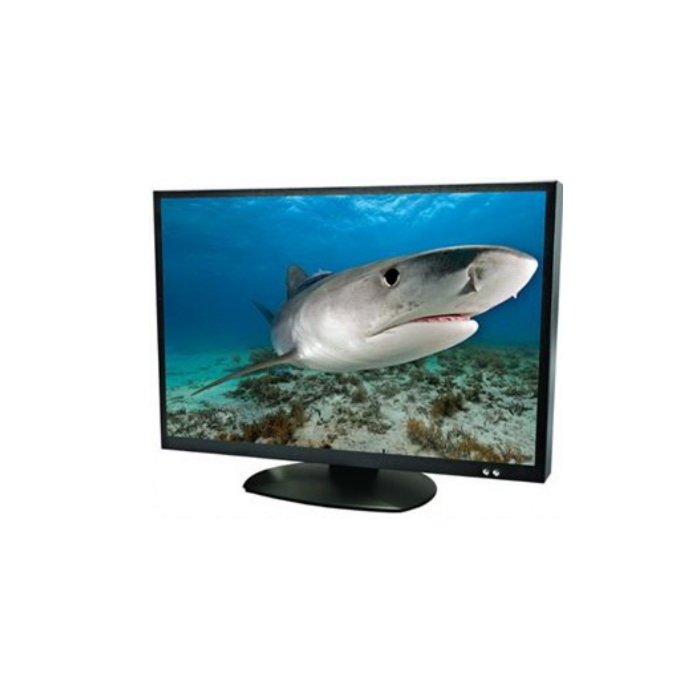

Tru-Vu VM-27D (VM27D) 27" Customizable HD LCD Monitors
*Product is discontinued, Replacement Option: VM-27U-NB
The VM-27 Series full HD widescreen LCD monitors provide brilliant color, amazing high-def resolution and incredible picture quality.
The VM-27 Series monitors ofer VGA, HDMI, DisplayPort, and DVI and Composite (BNC) analog and digital video input capabilities, as well as dual audio speakers. An extensive list of available OEM options enables you to customize the VM-27 Series monitors to your specific needs. The VM-27 Series monitors are ideal for industrial, broadcast, digital signage, medical and commercial applications.
All Tru-Vu industrial LCD monitors are specifically designed for use in demanding applications. Every Tru-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability.
Features:
Applications:
|
VM-27D
|
|
| LCD Panel | 27” TFT Color LCD |
| Touch Screen Type | 1920 x 1080 (1080p/60, Full HD) |
| Touch Interface | 23.5” (W) x 13.2” (H) (596.9 x 336.15 mm) |
| Pixel Pitch | 0.31125 mm |
| Display Colors | 16.7 M |
| Aspect Ratio | 16:9 |
| Brightness |
300 nits
|
| Contrast Ratio |
5,000:1
|
| Viewing Angle |
178° (H) x 178° (V)
|
| Response Time | 8 msec (gray to gray) |
| Video Input Connector | VGA, HDMI, 3 Composite BNC Inputs, 1 Composite BNC Output |
| Audio | Optional |
| Power Requirement | 24 VDC/100-240 VAC |
| Power Consumption | 60 W (max) |
| Plug & Play | ABS |
| Mounting | Included Base or via 100 x 100, 100 x 200 and 200 x 200 VESA Hole Pattern |
| Operating Temperature | 32° to 122° F (0° to 50° C) |
| Humidity | 5-90% RH |
| Shock | 50G Half-sine 20 msec |
| Vibration | 1.5G RMS 10-200 Hz |
| Dimensions | 25.5” (W) x 17.1 (H) x 7.5” (D) / 647.6 (W) x 434.3 (H) x 190.5 (D) mm |
| Weight | 10.8 lbs. (4.89 Kg) |
| Warranty | 3 Years |
