Tru-Vu SRMTR-21.5R (SRMTR-21.5R) 21.5” Sunlight Readable Touch Screen Monitor

Tru-Vu VM-21.5R Image # 1

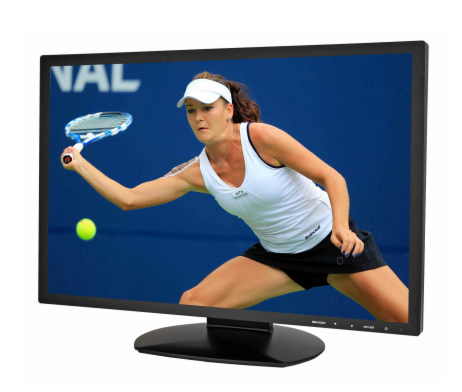

Tru-Vu VM-21.5R (VM21.5R) 21.5” Industrial-Grade LCD Monitor

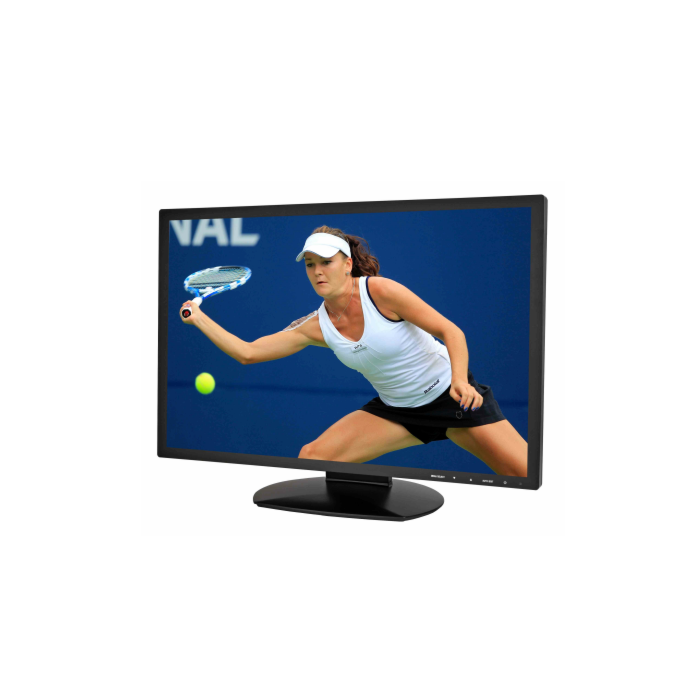

Tru-Vu VM-21.5C (VM21.5C) 21.5” Industrial-Grade LCD Monitor

The VM-21.5 Series full HD widescreen LCD monitors ofers brilliant color, amazing high-definition resolution, and incredible picture quality while providing the reliability and ruggedness that demanding applications require.

SKU
VM-21.5C-TruVu

The Tru-Vu VM-21.5C are designed to operate 24/7/365 and are backed by our 3-Year Warranty. The VM-21.5 Series monitors are ideal for demanding industrial, commercial, medical and military applications.

All Tru-Vu industrial LCD monitors are specifically designed for use in demanding applications. Every Tru-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/ consumer-grade monitors. This ensures superior image quality, improved performance and greater durability.

Features:

  • Full HD Resolution: 1920 x 1080 (1080p/60)
  • LED Backlights
  • Video Inputs: VGA, HDMI, DVI, HD-SDI, Composite BNC LoopThru, DisplayPort
  • TRU-Tuff Ensures Maximum Shock & Vibration Resistance
  • Auto Re-Start After Power Loss
  • Lockable On-Screen Display Controls
  • Can Be Customized to Meet Your Needs
  • 3-Year Warranty

  • Applications:

  • Industrial
  • Commercial
  • Medical
  • Military Applications
  •   VM-21.5C
    LCD Panel 21.5” Color LCD (MVA Type); LED Backlights
    Resolution 1920 x 1080 (1080p/60 Full HD)
    Viewing Area
    18.76” x 10.55” (476.6 x 268.1 mm)
    Pixel Pitch
    0.248mm
    Display Colors
    16.7 Million
    Aspect Ratio
    16:9
    Brightness
    300 nits
    Contrast Ratio
    5,000:1
    Viewing Angle 178° (H) x 178° (W)
    Response Time 8 msec Trf
    Control
    OSD (On-Screen Display) via Pushbuttons
    Video Inputs VGA & DVI
    Video Outputs --
    Power Requirement 12 VDC (2.1 mm Barrel Plug);
    Power Consumption 24W
    Enclosure ABS
    Mounting Via Included Tabletop Base or 100x100mm Rear VESA Mount Holes
    Operating Temperature/Humidity 32° to 140°F (0° to +60°C); 5-90% Non-Condensing
    Storage Temperature -4° to +140°F (-20° to +60°C)
    Shock
    50G, Half-sine Wave, 20ms, X/Y/Z
    Vibration
    Acceleration: 1.5 G RMS; Random Wave; 10-200Hz; 30 mins Per Axis (X,Y,Z)
    Dimensions 20.68” W x 12.60” H x 2.18” D (525.3 x 320 x 55.4mm)
    Weight 7.4 lbs. (3.4 Kg)
    Included Accessories VGA Cable
    Warranty 3 Years
