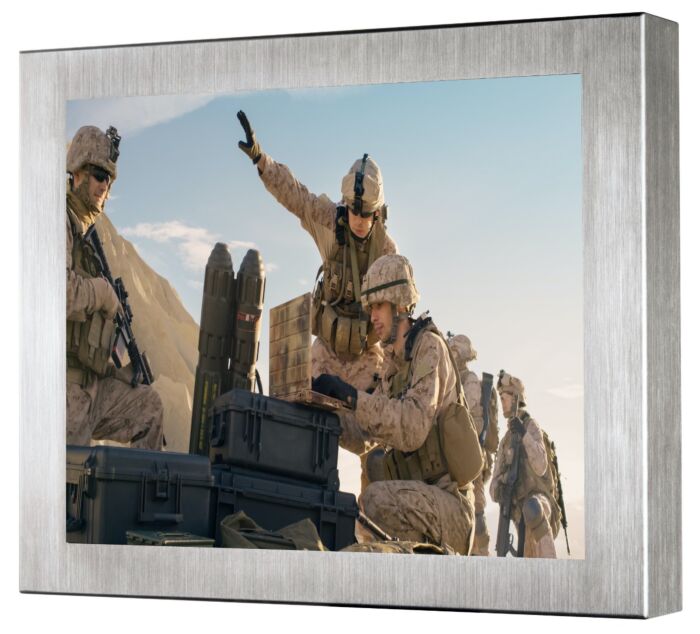

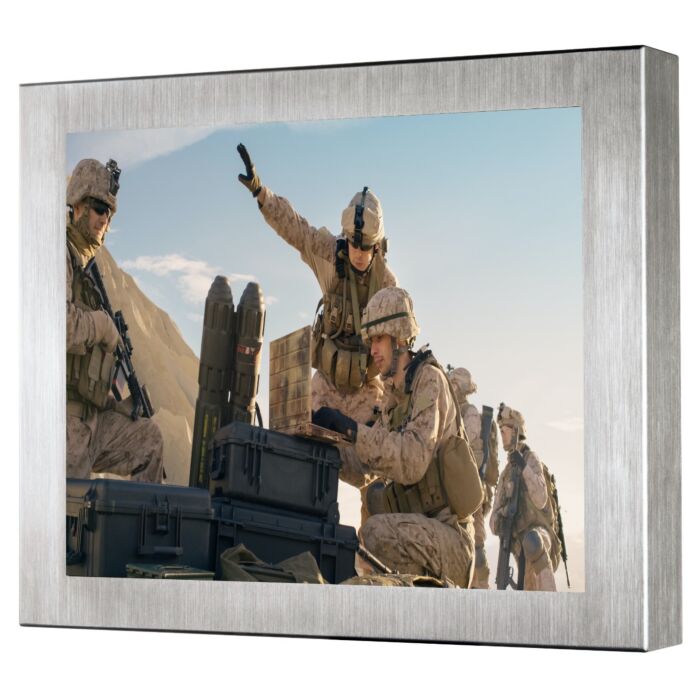

Tru-Vu SRMXOBW-10.4U (SRMXOBW10.4U) 10.4” Waterproof Sunlight Readable Monitor

The SRMXOBW-10.4U Sunlight Readable monitor is designed to operate in direct bright sunlight, or in other high ambient-light conditions. The SRMXOBW-10.4U utilize state-of-the-art LED backlights to produce over 1,000 nits of brightness (vs. 250-300 nits for standard monitors). This results in amazingly bright, crystal-clear images, even with direct, bright sunlight on the face of the screen. Optical Bonding increases contrast ratio and improves image quality.
SKU
Tru-Vu SRMXOBW-10.4U 10.4” Waterproof Sunlight Readable Monitor

The SRMXOBW-10.4U Series Sunlight Readable monitors are built with industrial-grade components and receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components; all wires are dressed, tie-wrapped and secured; and ThreadLock on all screws.



Features:



  • Produces Clear Sharp Images Even in Direct, Bright Sunlight
  • 1,000 - 1,500 nits Brightness
  • Optical Bonding Improves Image Quality
  • Protective Anti-Reflective Glass
  • NEMA 4X Waterproof Stainless Steel Enclosure •
  • TRU-Tuff Ensures Maximum Shock/Vibration Resistance
  • Lockable OSD (On-Screen Display) Controls
  • 3 Year Warranty
  •


    Applications:



  • outdoors
  • factory wash-downs
  • boats and ships
  • digital signage
  • Model SRMXOBW-10.4U
    LCD Panel 10.4” LCD; LED Backlights
    Resolution 1024 x 768
    Viewable Area 8.3” (W) x 6.2 (H) (210.4 x 157.8 mm)
    Pixel Pitch  0.2055
    Display Colors 16.2 Million
    Aspect Ratio 4:3
    Brightness 1,000 nits
    Contrast Ratio 3,000:1
    Optical Bonding Standard
    Viewing Angle 178º (H) x 178º (V)
    Response Time 30 msec
    Control OSD (On-Screen Display) via Rear Panel Pushbuttons
    Video Inputs VGA, HDMI, Composite BNC Loop-Thru
    Power Requirement 12-24 VDC/90-240 VAC
    Power Consumption 16 W
    Enclosure NEMA 4X Stainless Steel
    Mounting 75 x75 mm Rear VESA Mount Holes
    Operating Temperature -31˚ to +185˚F (-35˚ to +85˚C)
    Shock 50 G (20 msec, ½ sine)
    Vibration 1.5G RMS (10-200 HZ, P-P) 30 mins./axis (X,Y,Z)
    Warranty 3 Years
