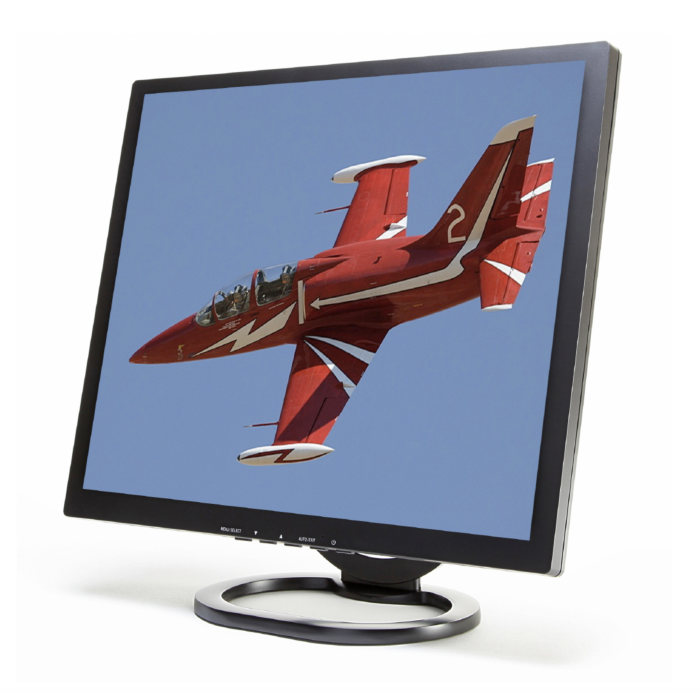

Tru-Vu SRMHTC-15C-17 (SRMHTC15C17) 15” Sunlight-Readable Touch Screen Monitors
They utilize state-of-the-art LED backlights to produce over 1,000 nits of brightness (vs. 250-300 nits for standard monitors). This results in amazingly bright, crystal-clear images, even with direct, bright sunlight on the face of the screen. The SRMHT-15 Series Sunlight Readable Touch Screens are ideal for use in a wide range of industrial, law enforcement, aviation, marine, military, inspection, advertising and transportation applications where viewability in direct bright sunlight is crucial.
All TRU-Vu industrial LCD monitors are specifically designed for use in demanding applications. Every TRU-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability. Our 3-Year Warranty ensures you of reliable worry-free operation.
Features:
Applications:
|
SRMHTC-15C-17
|
|
| LCD Panel | 15” Color LCD; LED Backlights |
| Touch Technology | Capacitive |
| Touch Interface | USB |
| Resolution | 1024 x 768 (XGA) |
| Viewable Area | 11.97”(W) x 8.98”(H) (304.03 x 228.09 mm) |
| Pixel Pitch | 0.297mm x 0.297mm |
| Display Colors | 16.2 M |
| Aspect Ratio | 4:3 |
| Brightness |
1,700 nits
|
| Contrast Ratio |
700:1
|
| Viewing Angle |
170° (H) x 160° (V)
|
| Response Time | 8 msec Trf |
| Control | OSD (On-Screen Display) via Front Panel Pushbuttons |
| Video Inputs | VGA, DVI |
| Power Requirement | 12 VDC (2.1 mm Barrel Plug); 90-240 VAC via Included Power Brick |
| Power Consumption | 48 Watts |
| Enclosure | ABS |
| Mounting | Included Base or 75x75mm VESA Hole Pattern |
| Operating Temperature | +32° to +140° F (0° to +60° C) |
| Humidity | 8-90% RH |
| Shock | 50 G (20 msec, 1 / 2 sine) |
| Vibration | 1.5G RMS 10-200 HZ |
| Approvals | UL/cUL, FCC, CE, TUV, RoHS |
| Dimensions | 13.66” (W) x 10.87” (H) x 1.78” (D) (347 x 276 x 45.20 mm) |
| Weight | 4.87 lbs. (2.21 kg) |
| Warranty | 3 Years |
