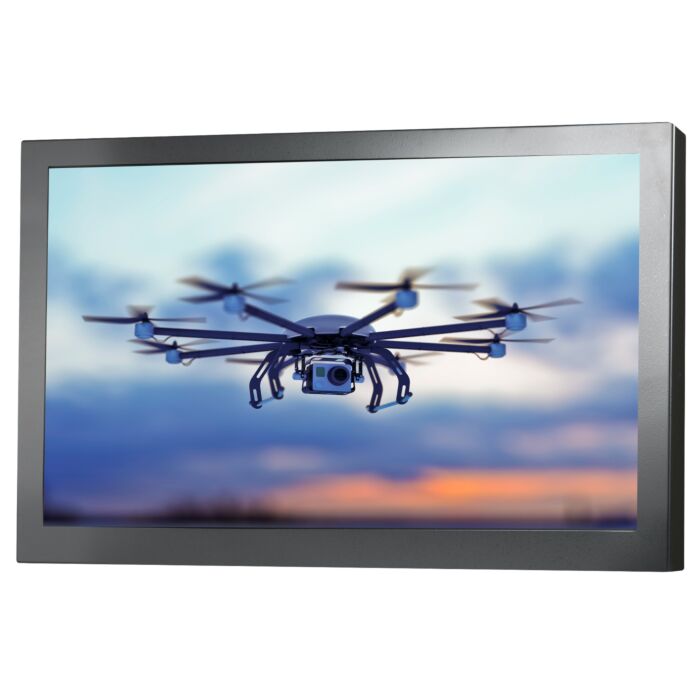

TRU-Vu SRM-10.1R-B (SRM10.1RB) Sunlight Readable LCD
*Product is discontinued, Replacement Option: Tru-Vu SRM-10.1U-36
The SRM-10.1R-B is a Sunlight Readable LCD monitor designed to operate in direct bright sunlight, or in other high ambient-light conditions. They utilize state-of-the-art LED backlights to produce over 1,000 nits of brightness (vs. 250-300 nits for standard monitors).
SKU
SRM-10.1R-B-TruVu
The SRM-10.1R-B displays amazingly bright, crystal-clear images, even with direct, bright sunlight on the face of the screen. SRM-10.1R-B will eliminate the need for sun-shields, squinting or straining to see washed-out images.
Features:
Applications:
| MODEL | SRM-10.1R-B |
| LCD Panel | 10.1” Color TN Panel; LED Backlight |
| Touch Interface | USB |
| Resolution | 1024 x 600 |
| Viewable Area | 8.77”W x 4.93”H (222.75 x 125.28 mm) |
| Pixel Pitch | 0.2088 mm |
| Display Colors | 16.2m |
| Aspect Ratio | 16:9 |
| Brightness | 1,000 nits |
| Contrast Ratio | 500:1 |
| Viewing Angle | 140º (H) x 120º (V) |
| Response Time | 16 msec Trf |
| Control | OSD (On-Screen Display) via Rear Panel Pushbuttons |
| Video Inputs | VGA, HDMI, DisplayPort |
| Power Requirement | 12 VDC (2.1 mm Barrel Plug); 90-240 VAC via Included Power Adapter |
| Power Consumption | 13W |
| Enclosure | Powder-Coated Steel |
| Mounting | 75 x 75 mm VESA Hole Pattern |
| Operating Temp | +14° to 140° F (-10° to 60° C) |
| Shock | 100G, 6ms, Half-sine wave |
| Vibration | 10-55 Hz, l.5mm Stroke 2 hrs/axis (X,Y,Z) |
| Dimensions | 9.37” (W) x 6.21” (H) x 1.18” (D) (238.1 x 157.7 x 30mm) |
| Weight | 2.31 lbs. (1.05 kg) |
