Toshiba IK-HD1D DVI-D Camera Control Unit

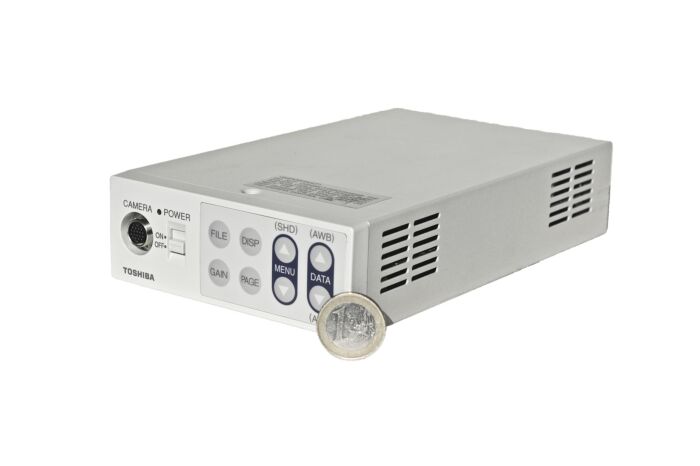

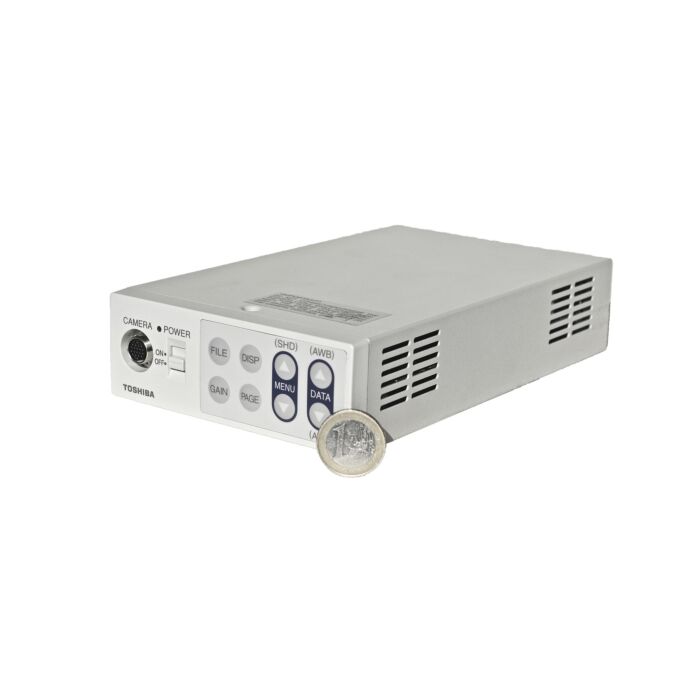

Toshiba IK-HD1D Camera Control Unit (CCU) is an interface box for connecting a Toshiba IK-HD1H 3CCD HD camera head to an HD video monitor. Nearly identical to the IK-HD1E, the 'D' model also provides analog and digital HD video connections, with the main difference being the substitution of a DVI-D output for HD-SDI. This means you can use lower-cost consumer HD monitors with DVI/HDMI connections as opposed to the more expensive HD-SDI displays. The remote interface is also different, an 8-pin mini-DIN versus a 9-pin DSUb, while the component/RGB connectors--in the form of three BNC terminals (Y/Pb/Pr)--remain the same.
Most camera controls are accessed from the front of the unit. These include a power On/Off switch, an AWB and gain switch, buttons for menu selection and a button to change scene files and display modes. The rear of the unit adds a 59.94i to 60i format switch as well as a key lock On and Off switch. Also located on the back of the unit are two sync ports, a wired remote control terminal and a 12VDC power input.
Features:
Applications:
| Power Requirements |
12 VDC ± 10%
|
| Power Consumption |
10.3W
|
| Output Signal |
DVi-D (Digital RGB): Y/Pb/Pr or RGB (Analog)
|
| Scan Frequency |
H:33.7kHz V: 59.94Hz / H: 28.1kHz V:50Hz
|
| Scene File (user memories) |
5 files (A, B, C, D, E)
|
| White Balance |
ATW (automatic tracing balance), AWB (automatic white balance), MANUAL
|
| Gain |
AUTO (automatic gain control), MANUAL, OFF (0 dB)
|
| Ambient Temperature |
0°C to 40°C (32°F to 104°F)
|
| Ambient Humidity | Less than 90% |
| Dimensions |
110 mm (W) x 40 mm (H) x 186 mm (D)
|
| Weight |
730 grams (1.61 lbs)
|
