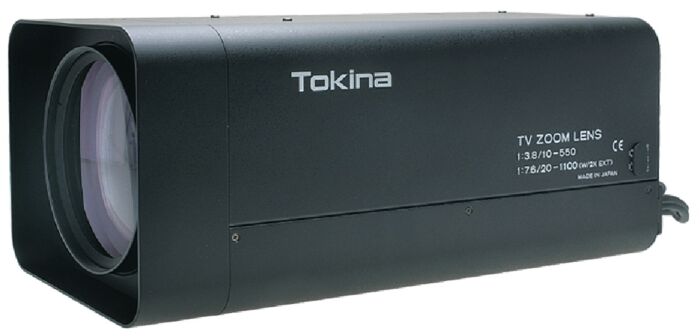

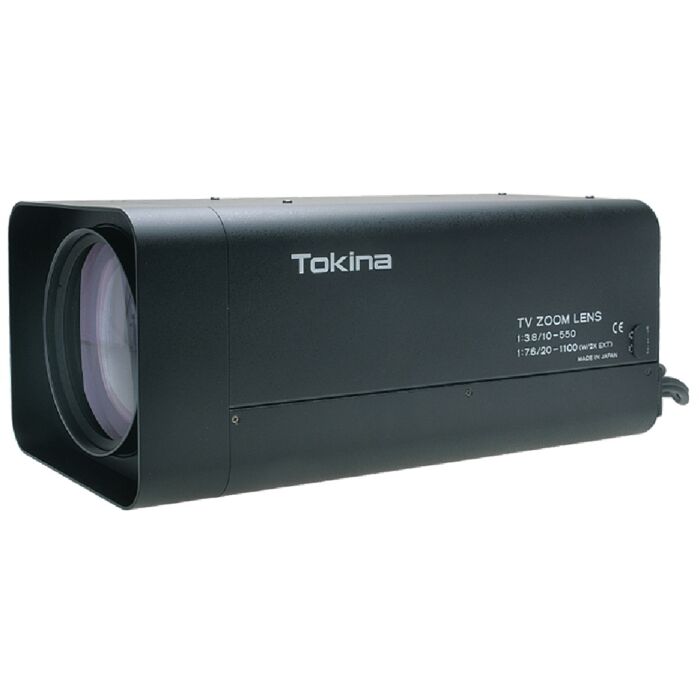

Tokina TM55Z1038GAIDCPNx2-iAF (232C) Auto-Focus Motorized Zoom Lens

The Tokina TM55Z1038GAIDCPNx2-iAF (232C) Auto-Focus Motorized Zoom Lens is designed for 1/2" image sensors. This CCTV lens with 55x zoom has DC auto iris and motorized focus to help achieve correct exposures. Featuring a motorized zoom, this lens is suitable for applications that require you to quickly focus on a person or object for better identification. You can set preset points for the motorized zoom and focus functions, which can then be accessed via a one-touch button on the lens controller device. Moreover, this lens comes with a C-type lens mount and has an aperture of f/3.8-360 (7.6-720).Compatible with fixed and detachable lens cameras, the included TOK-2x extender is used to reduce the amount of light reaching the lens. When placed between the camera body and lens, this extender doubles the lens’ focal length from 10-550mm to 20-1100mm and changes the horizontal wide angle view from 34.57° to 17.67° (for 1/2" sensors).
SKU
TM55Z1038GAIDCPNx2-iAF (232C)

Features:

  • Designed for C-mount CCTV cameras with 1/2" sensors
  • 55x zoom with 2x extender zoom
  • Aperture range of f/3.8-360 (7.6-720) for effective surveillance in low-light as well as bright light conditions
  • Auto Iris mechanism ensures that the camera captures detailed images even in areas with varying light intensity
  • SD (Super-low dispersion) glass reduces chromatic aberration for improved image quality
  • Preset points can be set for the motorized functions of the camera, and these are accessible via a one-touch button from a CCTV lens controller device
  • Image Format
    1/2"
    Mount C
    Focal Length 10 - 550mm (20 - 1100mm)
    Aperture Range F3.8 - 360 (F7.6 - 720)
    Zoom x55
    Angle Of View (Horizontal)

    Wide : 34.57°

    Tele : 0.69°

    M.O.D. 5.0m
    Filter Size M95mm P=1.0
    Back Focal Length 47.37mm
    Dimensions (W x H x L) 132.0 x 120.5 x 298.5mm
    Weight 4170g
    Operating Temperature Range -5 - 45° C
    Operating

    Iris : DC Auto Iris or Motorized

    Focus : Motorized w/ preset

    Zoom : Motorized w/ preset

    Note -
