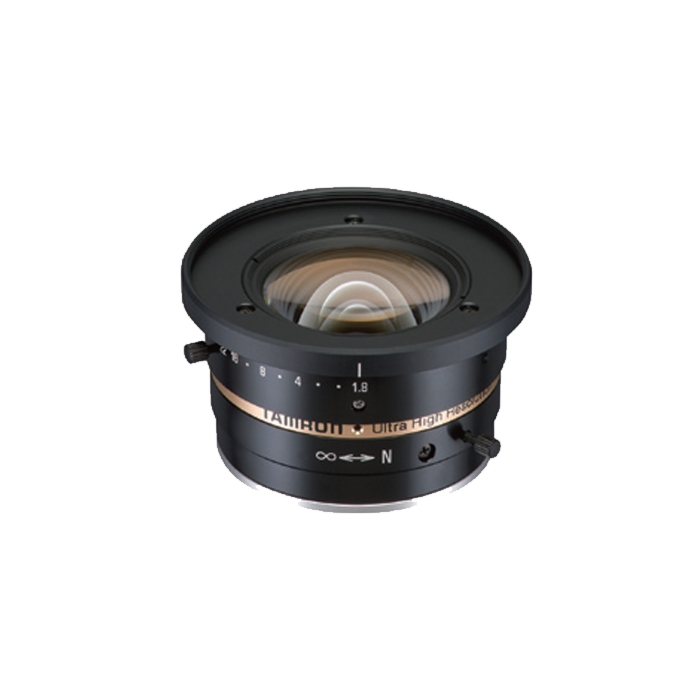

Tamron M23FM06 6-Megapixel Machine Vision Fixed Lens, 6mm

Overview Tamron has been long recognized as an innovative source for Mega-Pixel Fixed-Focal length lenses for precision industrial applications such as PCB production, inspection machines and engineering devices, affording them valuable insight into industry needs and trends. Trending higher in recent years and growing rapidly is the demand for substantially higher-resolution cameras, requiring exacting, task-specific optics.

As part of an ongoing initiative to address this need, Tamron has released 7 models specifically for use with 2/3" 2.um pitch size sensor cameras. By this new lineup, Tamron’s dedication to meeting customer requirements will be further realized.

Features:
Ultra High Resolution

Designed to match pixel pitch 2.5? sensors. Realize high resolution from center to periphery (image height 90%).

MOD 10cm (6, 8, 12, 16, 25mm), 15cm (35, 50mm)

Low distortion

6 iris blades maintain same performance as 8 blades through a unique iris blade design.

High Durability

Optimized focus lock screws for each focal length design.

Metal mount and components for high durability.

Vibration and shock resistant design maintains the initial optical performance.

High Versatility

Newly designed mechanics enable the focus rotation to be larger and reduces troublesome focus adjustment.

Designed to fix the mechanical length of the lens, while considering

Specifications

Image Size	2/3"
Mount	C
Focal Length	6mm
Aperture Range	F/1.8 ～ 22
Field of View (H x V)	2/3 - 74.3°×58.4° 1/2 - 56.8°×43.6° 1/3 - 43.6°×33.1°
Focusing Range	0.1m～∞
Operation	Focus - Manual with Lock Screw Iris - Manual with Lock Screw
Filter Size	M67 P=0.75
Corresponding Wavelength	Visible Light

No Video available

Tamron M23FM06 Spec Sheet
