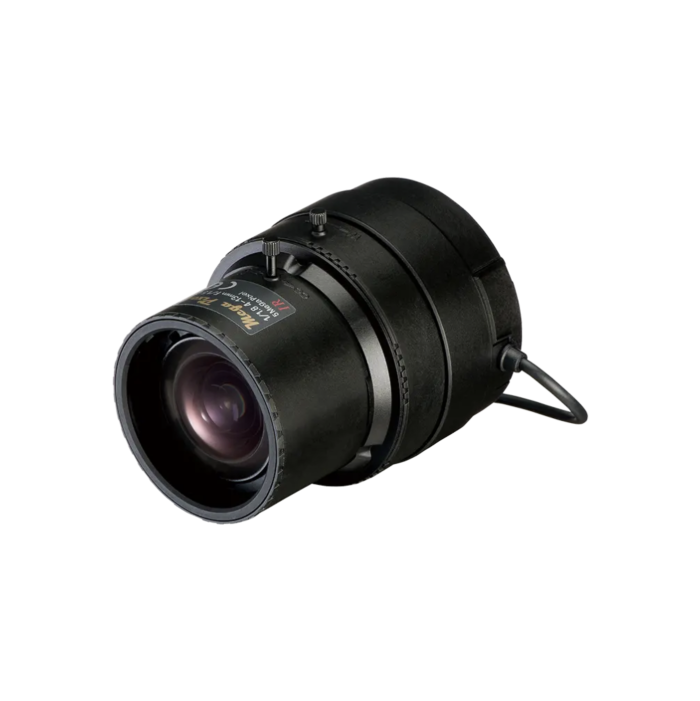

Tamron M118VP413IR 5 Mega Pixel Near IR Corrected Lens
1/1.8" 4-13mm F/1.5 Mega Pixel Near IR Corrected Lens
SKU
M118VP413IR
The Tamron M118VP413IR is a C mount high grade lens compatible with 5MP cameras with 1/1.8" sensors. The Optical design is optimized for both night and day use, with megapixel imaging availabe in near-IR range.
Features:
| Focal Length (mm) | 4-13mm |
| Iris Range | F 1.5 - Close |
| Focus Operation | Manual w/Lock |
| Zoom Operation | Manual w/Lock |
| Mount | C |
| 1/1.8" Angle of View (wide/telephoto) | 105.4° x 77.6°/ 33.0° x 24.8° |
| 1/2" Angle of View (wide/telephoto) | 91.7° x 67.9°/ 29.0° x 21.8° |
| 1/3" Angle of View (wide/telephoto) | 67.9° x 50.6°/ 21.8° x 16.3° |
| Focusing Range | 0.3m ~ INF |
| Back Focus (in air) | 15.235mm |
| Wave Length | Visible Light ~ Near Infrared |
| Excitation | Bi-Polar Type |
| Operating Voltage | 3.0V - 5.0V |
| Weight | 167 grams ±5 grams |
| Operating Temperature | -20° ~ +60° C |
