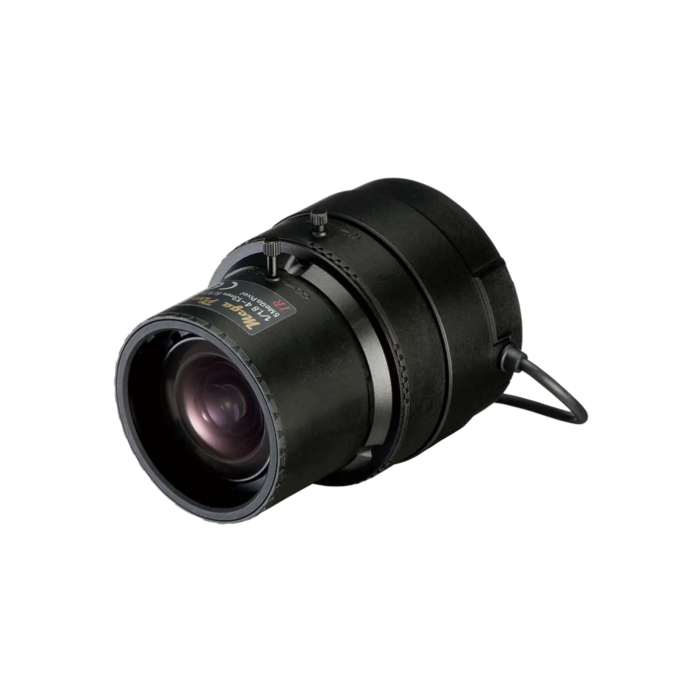

Tamron M118VG413IR 5 Mega Pixel Near IR Corrected Lens

1/1.8" 4-13mm F/1.5 Mega Pixel Near IR Corrected Lens
SKU
M118VG413IR

The Tamron C-Mount 4-13mm DC Auto Iris Varifocal Lens supports 5MP cameras with 1/1.8” format sensors. The lens features near IR corrected abilities for use in a variety of lighting conditions from visible light to near IR range. The lens has a focal length of 4 to 13mm and an aperture range of f/1.5 to close. Using a DC auto iris mechanism, the lens is suitable for traffic monitoring where high-resolution images are essential for identification.

Features:

  • Compatible with C Mount Cameras
  • Supports 1/1.8" Sensors
  • f/1.5-Close Aperture
  • DC Auto Iris
  • Supports Near IR Lighting and up to 5MP
  • IR Corrected
  • Focal Length (mm) 4-13mm
    Iris Range F 1.5 - Close
    Iris Operation DC Auto Iris
    Focus Operation Manual w/Lock
    Zoom Operation Manual w/Lock
    Mount C
    1/1.8" Angle of View (wide/telephoto) 105.4° x 77.6°/ 33.0° x 24.8°
    1/2" Angle of View (wide/telephoto) 91.7° x 67.9°/ 29.0° x 21.8°
    1/3" Angle of View (wide/telephoto) 67.9° x 50.6°/ 21.8° x 16.3°
    Focusing Range 0.3m ~ INF
    Back Focus (in air) 15.235mm
    Wave Length Visible Light ~ Near Infrared
    Filter Size  ---
    Operating Voltage OPEN: 3.0V
    CLOSE: 0.7V
    Weight 167 grams ±5 grams
    Operating Temperature -20° ~ +60° C
