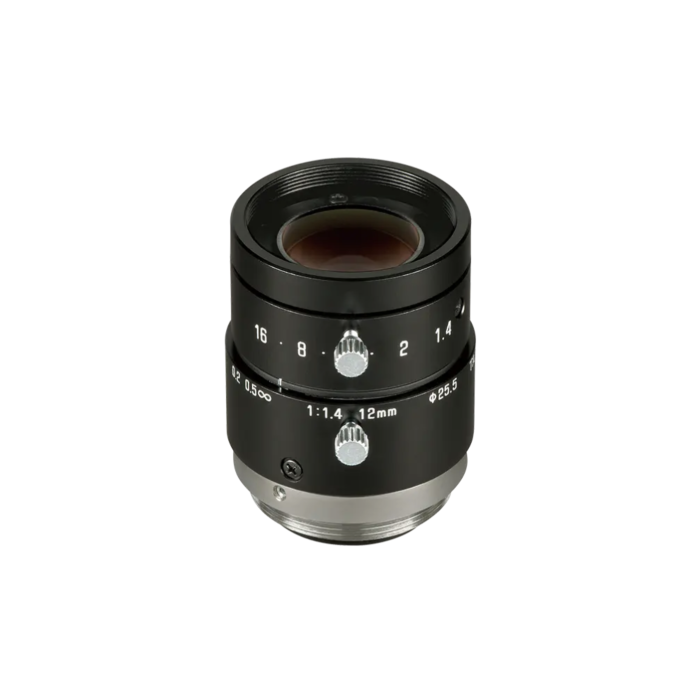

Tamron M118FM12 1/1.8 12mm F/1.4 Aspherical Mega Pixel Fixed-Focal

12mm, F/1.4-16, C-Mount Lens.
SKU
M118FM12

Tamron M118FM12 1/1.8" 12MM F1.4 Manual Iris C-Mount W/ Lock, 2 Megapixel Rated

Features:

  • Focal length: 12 mm
  • Maximal image circle: 1/1.8"
  • Aperture range (F): 1.4-16
  • Minimal object distance (M.O.D.): 0.1 m
  • Angel of view (HxV): 34.2° x 25.8°
  • Back focal length: 12.4 mm
  • Immersion depth: 5.9 mm



Focal Length
12mm
Iris Range F/1.4-16
Iris Operation Manual w/Lock
Focus Operation Manual w/Lock
Mount C
1/1.8" Angle of View (horizontal/vertical) 34.2° x 25.8°
1/2" Angle of View (horizontal/vertical) 30.2° x 22.7°
1/3" Angle of View(horizontal/vertical) 22.7° x 17.1°
Focusing Range 0.1m ~ INF
Back Focus (in air) 12.40mm
Wave Length Visible Light
Filter Size M34 P=0.5m
Operating Voltage N/A
Weight TBA
Operating Temperature -10°C ~ +60° C
