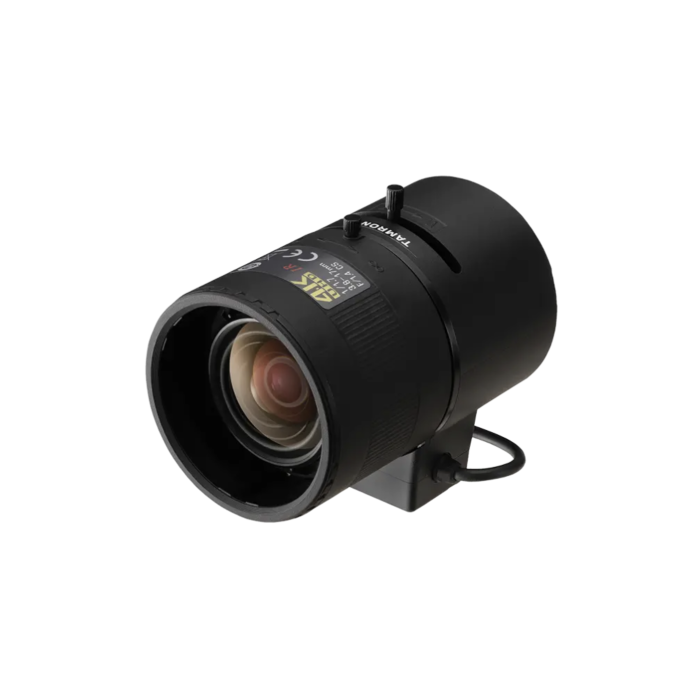

Tamron M117VG3817IR 4K/8-Mega-Pixel Resolution Lens

The M117VG3817IR is a 4K/8 mega-pixel resolution 1/1.7” 3.8-17mm F/1.4 Standard Vari-Focal Lens (Model:M117VG3817IR) that delivers outstanding high-fidelity images over the entire visual and near-IR bandwidth spectrum.
SKU
Tamron M117VG3817IR 4K/8-Mega-Pixel Resolution Lens

The need for high-fidelity surveillance in 4K/8 mega-pixel resolution is growing in the surveillance camera market. In addition to high-fidelity, high-sensitivity is also a mandatory feature in a lens. Tamron, addressing this growing market need, announces the release of a 1/1.7” 3.8-17 mm F/1.4 Vari-Focal Lens compatible with a 4K/8-mega-pixel resolution, high-sensitivity, NIR- bandwidth, and CS-mount cameras. The new lens offers distinguished values in both high resolution and high sensitivity.

Features:

  • High Optical Performance Compatible
  • High Sensitivity Enhanced by F/1.4 Aperture
  • Conformance to the Widely-Used Focal Length of 3.8 – 17mm with the Horizontal FOV (Field of View) Angle of 121.2°
  • High-Fidelity 5-Mega-Pixel Resolution
  • Substantial Reduction in Chromatic Blur, Ghosting, and Flare
  • Adoption of a Metal Mount for Higher Reliability


Applications:

  • Security
  • Surveillance
  • Military
  • Policing
  • ITS
  • Monitoring

Focal Length

3.8-17mm

Iris Range

F/1.4-Close

Iris Operation

DC Auto Iris

Focus Operation

Manual w/Lock

Zoom Operation

Manual w/Lock

Mount

CS

1/1.8" Angle of View (wide/telephoto)

110.7° x 82.3°/ 25.9° x 19.6°

1/1.7" Angle of View (wide/telephoto)

113.8° x 63.4°/ 26.5° x 15.2°

Focusing Range

0.3m ~ INF

Back Focus (in air)

8.66mm

Wave Length

Visible Light ~ Near Infrared

Operating Voltage

OPEN: 4V
CLOSE: 0.5V

Weight

180 grams ±5 grams

Operating Temperature

-20° ~ +60° C
