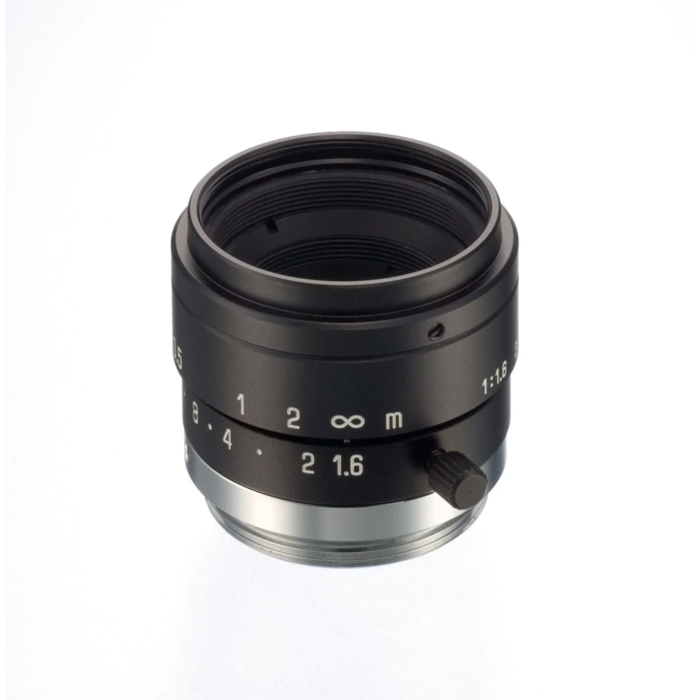

  • Tamron 23FM25L Standard High Resolution C-Mount Lens image
  • Tamron 23FM25L Standard High Resolution C-Mount Lens blueprint

Tamron 23FM25L Standard High Resolution C-Mount Lens

Quick Overview

2/3", 25mm, F/1.6, Standard High Resolution C-Mount Lens with Lock.

The Tamron's 23FM25L 2/3" 25mm F/1.6 lens utilizes a screw mechanism to lock-in the focus and iris rings and is ideal for use in environments experiencing significant vibrations. Compact in size with a solid built mechanism, this high resolution lens needs only a distance of 0.3m to achieve sharp image clarity and maintains optimum performance under long periods of use. Built for factory automation and machine vision applications.


  • 25mm F1.6-16
  • Manual Iris
  • Manual Zoom w/lock
  • C-Mount

  • Applications:

  • Sports Photography
  • Long Range Photography
  • Factory Automation
  • Machine Vision
  • Inspection
  • Specifications
    Type Manual Iris
    Code 23FM25L
    Model 23FM25L
    Format 2/3 inch
    Focal Length 25mm
    IRIS Range 1.6-16
    Mount C
    Width 30.5mm
    Weight 40g
    HAV 2/3" 20.0°x15.0°
    HAV 1/3" 11.0°x 8.2°
    HAV 1/2" 14.6°x11.0°
    HAV 2/3" N/A
    HAV 1" N/A
    Filter M25.5 P=0.5
    Comment High Performance Large Format CS-Mount Manual Iris lens
    Description The Tamron lens offers exceptional picture quality while maintaining a compact size.
