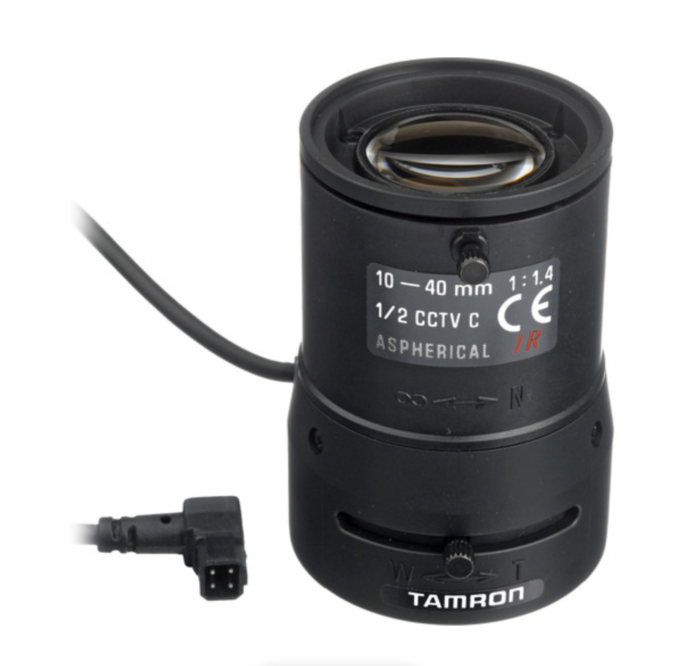

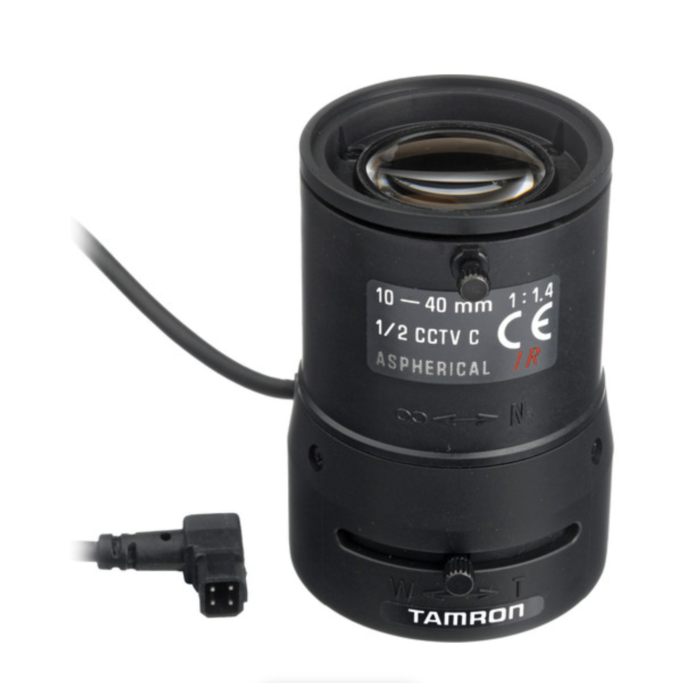

Tamron 12VG1040ASIR-SQ 1/2" Aspherical IR Vari-Focal Lens

Tamron 12VG1040ASIR-SQ: High-Performance Vari-Focal Lens for Industrial and Machine Vision Applications

The Tamron 12VG1040ASIR-SQ 1/2" Aspherical IR Vari-Focal Lens, available from Aegis Electronic Group Inc., stands out in the industrial and machine vision sectors, offering exceptional performance and versatility. Designed for imager sizes of 1/2" and equipped with a C-mount, this lens boasts a focal length range of 10-40mm, enabling users to achieve both wide-angle and telephoto views. Its aperture range of f/1.4 to f/360 ensures that it can adapt to various lighting conditions, providing outstanding image clarity even in challenging environments.

This lens is specifically engineered to be compatible with 3-megapixel sensors, guaranteeing high-resolution images without degradation across the full visible and near-infrared spectrums. With a horizontal field of view angle ranging from 37.5° to 9.3° and a vertical range from 27.6° to 7.0°, the Tamron lens excels in a variety of applications, including security surveillance, automation inspection, and robotics.

The manual zoom and focus features come with locks for precision, while the DC auto iris ensures optimal exposure in fluctuating light conditions. With an operating temperature range of -20°C to +60°C, this robust lens is built to withstand diverse industrial environments, making it an excellent choice for professionals seeking reliability and high performance in their vision systems.

Features:

• Imager Size: 1/2"
• Mount Type: C-mount
• Focal Length: 10-40mm
• Aperture Range: f/1.4 - f/360
• Field of View Angle:
  • 1/2" Wide: 37.5° x 27.6°
  • 1/2" Tele: 9.3° x 7.0°
  • 1/3" Wide: 27.6° x 20.4°
  • 1/3" Tele: 7.0° x 5.3°
• Focusing Range: 0.5m to infinity
• Operation:
  • Focus: Manual with lock
  • Zoom: Manual with lock
  • Iris: DC auto iris
• Back Focus (in air): Wide 12.166mm - Tele 18.602mm
• Operating Voltage: Open 3.0V, Close 0.5V
• Weight: 87g
• Operating Temperature: -20°C to +60°C
• Resolution Compatibility: Supports 3-megapixel resolution for high-quality images

Applications:

• Security and Surveillance: Enhanced image capture for monitoring and safety.
• Automation and Inspection: Precision imaging for quality control and process monitoring.
• Robotics: Vision systems for navigating and interacting with environments.
• Medical Imaging: High-resolution imaging for diagnostic applications.
• Agricultural Monitoring: Assessing crop health and growth through visual analytics.
