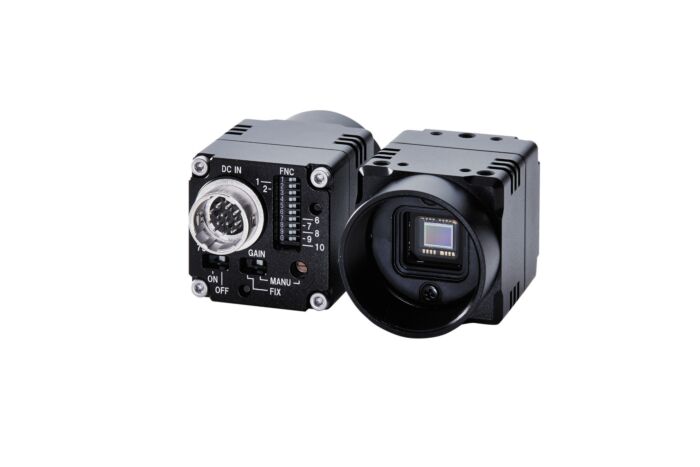

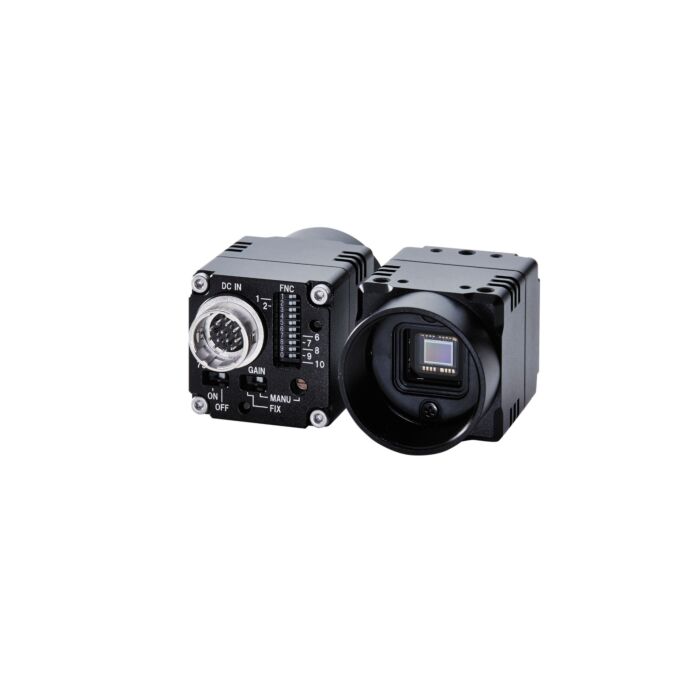

Sentech STC-MB33A (659x494) Machine Vision Cased Camera

Quick Overview

1/3" Progressive Monochrome CCD, 480 TV Lines, C Mount.
Overview

The Sentech MB33A is a 1/2", monochrome, progressive scan, cube camera with 648 x 494 resolution. This series features a VGA sensor with a scan rate of 30, 60 and 90fps, analog output and variable integration shutter trigger.

Features:

  • 1/3'' CCD Image Sensor, EIA
  • 30 FPS
  • 570 TV Lines

  • Applications:

  • Remote Viewing
  • Surveillance
  • Inspection
  • Industrial
  • Security
  • Specifications
    Image Sensor 1/3" Progressive Monochrome CCD (Sony: ICX424AL)
    Total picture elements 659 (H) x 494 (V)
    Effective picture elements 659 (H) x 494 (V)
    Active picture elements VGA: 648 (H) x 494 (V
    Chip size 7.40 (H) x 7.4 (V) mm
    Cell size 5.79 (H) x 4.89 (V) μm
    Scanning system Progressive
    Scanning method -
    - *1: un-support on 90fps Full scanning, Partial full scanning, 1/2partial scanning,1/4 partial scanning, Variable partial scanning, Binning 1/2 partial scanning, Binning 1/4 partial scanninG Binning variable partial scanning
    Vertical frequency (Frame rate) 31.47 (30 fps) / 62.94 (60 fps) / 94.784 (90 fps) Hz
    Horizontal frequency 15.7343 (30 fps) / 31.4685 (60 fps) / 47.2028 (90 fps) kHz
    Pixel frequency 12.2727 (30 fps) / 24.5454 (60 fps) / 36.8181 (90 fps) MHz
    Resolution 480 TV Lines
    S/N ratio (standard deviation) 56 dB (GAIN 0 dB)
    Minimum scene illumination 0.1 Lux at F1.2
    Sync. system Internal / External (Auto Select)
    Video output 1.0 Vp-p / 75 Ω, DC coupling
    Shutter speed

    -

    - Dip switch

    OFF, 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 seconds (30fps) OFF, 1/200, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/8,000, 1/20,000 seconds (60fps) OFF, 1/300, 1/750, 1/1,500, 1/3,000, 1/6,000, 1/12,000, 1/30,000 seconds (90fps)

    - Communication

    OFF, 1/3 ~ 1/40,000 seconds (Variable at every H and clock) (30 fps) OFF, 1/7 ~ 1/80,000 seconds (Variable at every H and clock) (60 fps) OFF, 1/11 ~ 1/120,000 seconds (Variable at every H and clock) (90 fps)

    ALC

    Support (AE,AGC), (Defalut: AE:OFF, AGC:OFF)

    Gain 0 to 27 dB
    Gamma 1.0 / 0.45
    Operational mode Edge Preset Trigger (V-reset, Non-Reset) Pulse Width Trigger (V-reset, Non-Reset)
    Pixel defect correction Up to 64 pixels (Default: ON)
    Field update function Support
    Communication RS232 via 12 Pin Connector
    Power -
    - Input voltage DC12V +/- 10%
    - Consumption Less than 2.5 W
    Dimensions 28 (W) x 28 (H) x 40 (D) mm (excluding the connector)
    Lens mount C Mount
    Optical filter No IR cut filter
    Optical center accuracy Positional Accuracy in H and V Directions: +/- 0.31 mm, Rotational accuracy of H and V: +/- 2.1 deg.
    Material -
    - Case Aluminum alloy
    - Tripod Polycarbonate ABS
    Interface connector HR10A-10R-12PB (Hirose) or equivalent
    Tripod Tripod can be attached to 2 plates
    (4 screws on the bottom plate, 3 screws on the top plate)
    Weight Approximately 42 g
    Operational Temp Environmental Temperature: 0 to +50 deg. C, Environmental Humidity: 0 to 85%
    Storage Temp Environmental Temperature: -25 to +65 deg. C, Environmental Humidity: 0 to 90%
    Vibration 20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, XYZ 3 directions 30 min. each
    Shock Acceleration 70G, half amplitude 6 ms, XYZ 3 directions 3 times each
    Standard compliancy EMS: EN61000-6-2, EMI: EN55011 (Class B)
    RoHS RoHS compliance
