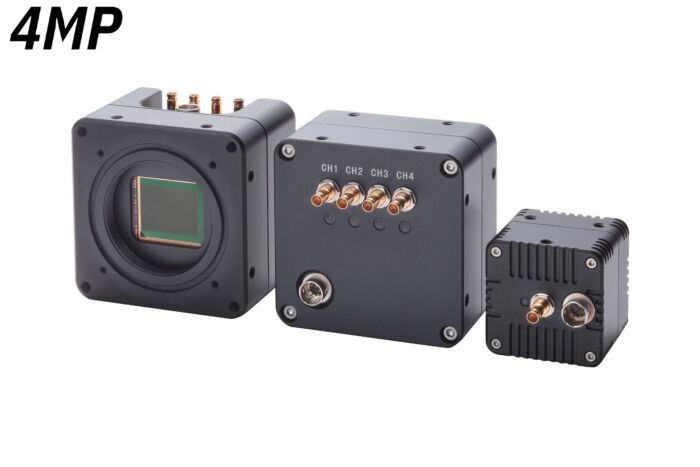

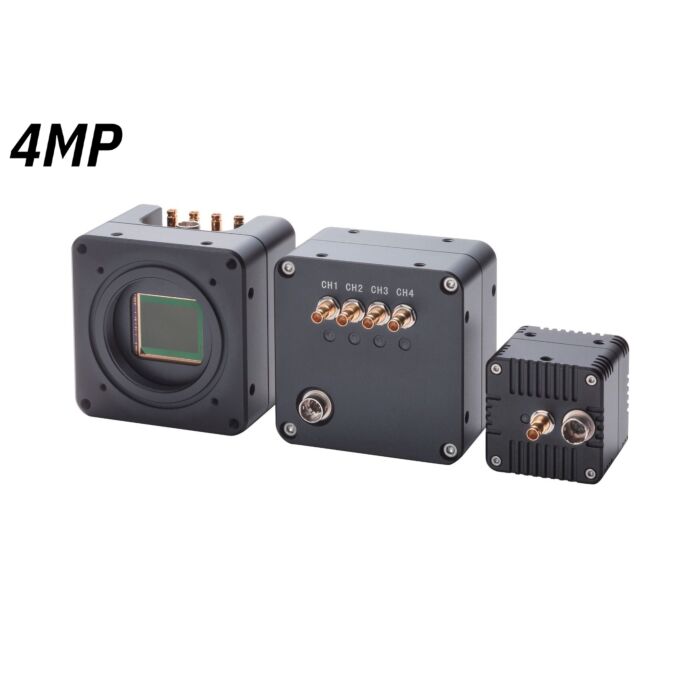

Omron STC-CMC401ACXP (STCCMC401ACXP) 4MP Color CoaXPress Camera

Omron has introduced a brand new line of CoaXPress cameras that feature 4 or 12 Megapixel cameras running at 142 or 180 FPS. The STC-CMC401ACXP is one of the 4-megapixel cameras in the line (CMOS Sensor: CMOSIS CMV4000)
SKU
STC-CMC401ACXP 4MP Color CoaXPress Camera

The STC-CMC401ACXP features a global shutter sensor which will capture brilliant high res images at high speeds with little to no motion blur.


Features:

  • 4 Megapixel Resolution
  • 180 Max FPS
  • CoaXPress Interface
  • Global Shutter
  •
    Application:

  • Machine Vision
  • Industrila Applications
  • Industrial Inspection
  •  Imaging



    Model No

    STC-CMC401ACXP

    Image Sensor

    1.76 “ Type 12Meg monochrome progressive CMOS (CMOSIS: CMV4000)

    Shutter

    Global Shutter

    Active Picture Element

    4096 (H) x 3072 (V)

    Chip Size

    22.5 × 16.9 mm

    Cell Size

    5.5 (H) x 5.5 (V) μm

      Function



    Scanning System

    Full scanning, Variable ROI

    Scanning Method

    Full scanning, Variable ROI

    Frame Rate

    180fps (8bit 4-Lane)

    Video Output Interface

    CXP-6(6.25Gbps) 4 Lane

    Noise level (8bit)

    <= TBD Digit (Gain 0 dB)

    Minimum Scene Illumination

    TBD Lux at F2.25

    Sync System

    Internal

    Shutter Speed

    16[us] to 16[s]

    Gain

    -

    - Digital

    1 to x5

    - Analog

    x1,x2,x3

    Trigger Mode

    FreeRun / Edge Preset Trigger / Pulse Width Trigger / CXP Tigger Packet

    Communication

    Protocol: CoaXPress Standard Version 1.1 Interface: GenIcam

    ROI

    Adjustable Steps for image size: 16 pixels in horizontal direction and 4 lines in vertical direction

    I/O

    3 GPIO

    Binning

    N/A

    HDR

    Support

    Pixel Defect Correction

    Support

    Vertical Line Correction

    Support

    Power

    -

    - Input Source

    PoCXP, (IO connector CH1 Only) *1

    - Input Voltage

    TBD (18.5Vdc to 26Vdc (24V Nominal))

    - Consumption

    120

      Mechanical



    Dimensions

    68 (W) x 68 (H) x 40 (D) mm (Excluding the connector)

    Optical Filter

    No IR cut filter

    Material

    Aluminum alloy

    Lens Mount

    M42×P1.0, FB = 10.0mm (in Air)

    Interface Connector

    CXP connector (camera: DIN1.0/2.3, Jack x 4, 75Ω) Power/IO connector: HR10A-7R-6PB (Hirose) or equivalent

    Weight

    120

      Environmental



    Operating Temperature

    TBD (-5 to 40 deg. C)

    Storage Temperature

    TBD (-30 to 65 deg. C)

    Vibration

    20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, XYZ 3 directions 30 min. each

    Shock

    Acceleration 38G, half amplitude 6ms, XYZ 3 directions 3 times each

    Standard Compliancy

    EMS: EN61000-6-2, EMI: EN55022 (Class B)

    RoHS

    RoHS, REACH compliance
