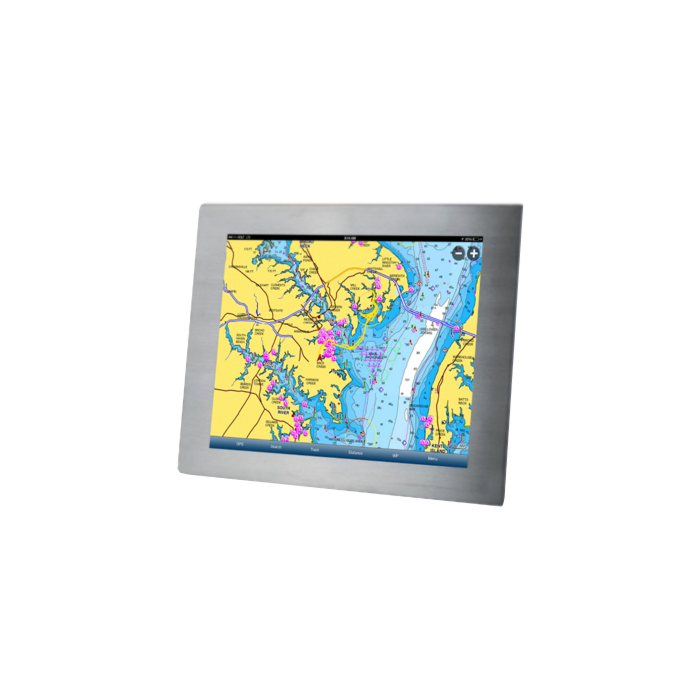

  • SRMHTRWP-15V | Sunlight Readable Waterproof Panel-Mount Touch Screen Monitor Image #1

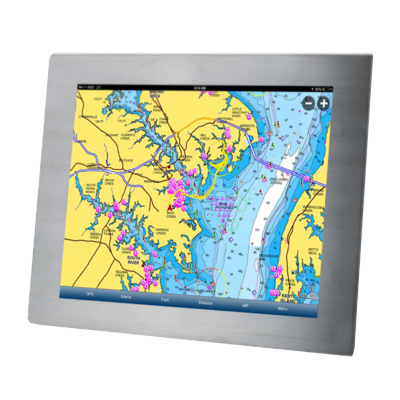

SRMHTRWP-15V (SRMHTRWP15V): TruVu 15” Sunlight Readable Waterproof Panel-Mount Touch Screen Monitor

Quick Overview

TRU-Vu Monitors, Inc. has announced the release of a new 15" Sunlight Readable touch screen monitor with a waterproof stainless steel panel-mount enclosure. It is 5 times brighter than a standard desktop monitor and highly resistant to dirt, dust or moisture which makes it ideal for use in direct sunlight and any environment where splashing or spraying water would damage a standard monitor.

Availability: In stock


The new SRMHTRWP-15V features a 15" screen with over 1,500 nits of brightness, with a 5-wire resistive touch screen that can be activated by a bare or gloved finger, pen, stylus or nearly any other object. The waterproof stainless steel panel-mount enclosure may be flush mounted into a wall, control panel or on a cabinet. The NEMA 4X water resistant front face withstands splashing or spraying water.




  • Produce Clear Sharp Images Even in Direct Bright Sunlight
  • 5-Wire Resistive or P-Cap Touch
  • 1,500 Nits Brightness
  • Optical Bonding for Improved Image Quality
  • Stainless Steel Panel-Mount Enclosure
  • NEMA 4X/IP65 Waterproof Front Face
  • Auto Re-Start After Power Loss
  • Lockable On-Screen Display Controls



  • marine
  • military
  • law enforcement
  • industrial
  • manufacturing
  • food processing
  • Specifications
    Model SRMHTRWP-15V
    LCD Panel 15” Color TN LCD Panel (LED Backlights)
    Touch Technology 5-Wire Resistive Touch
    Touch Interface USB
    Resolution 1024 x 768 (XGA)
    Viewable Area 11.97” (W) x 8.98” (H) (304.12 x 228.09 mm)
    Pixel Pitch 0.297mm
    Display Colors 16.2 M
    Aspect Ratio 4:3
    Brightness 1,500 nits
    Contrast Ratio 700:1
    Optical Bonding Optional
    Response Time 8 msec Trf
    Viewing Angle 170° (H) x 160° (W)
    Control OSD (On-Screen Display) via Rear Panel Pushbuttons
    Video Inputs VGA
    Power Requirement 12 VDC (2.1mm Barrel Plug);
    Power Consumption 48 Watts
    Enclosure Stainless Steel Panel-Mount (Rear Clamp)
    Rating NEMA 4X / IP65
    Operating Temperature 32˚ to 149˚F (0 to 65˚C)
    Humidity 8-90%RH
    Shock 50 G (20 msec, ½ sine)
    Vibration 1.5G RMS 10-200 HZ
    Dimensions 15.98” (W) x 12.39” (H) (405.80 x 314.60 mm)
    Warranty 3 Years
    No Video available

    SRMHTRWP-15V Waterproof Panel-Mount Touch Screen Monitor
