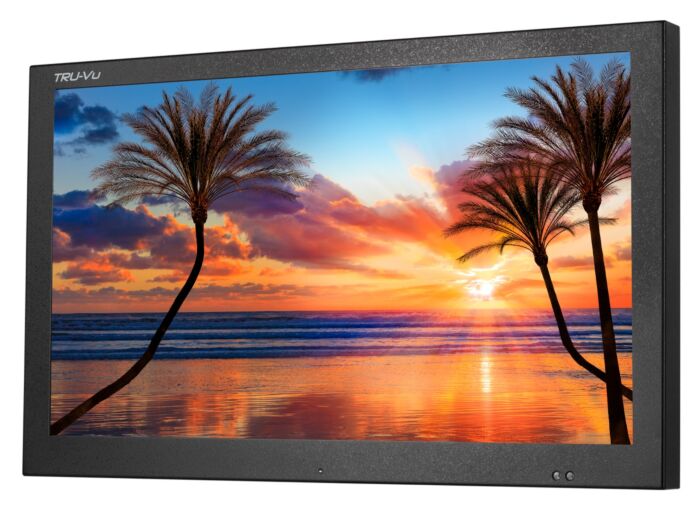

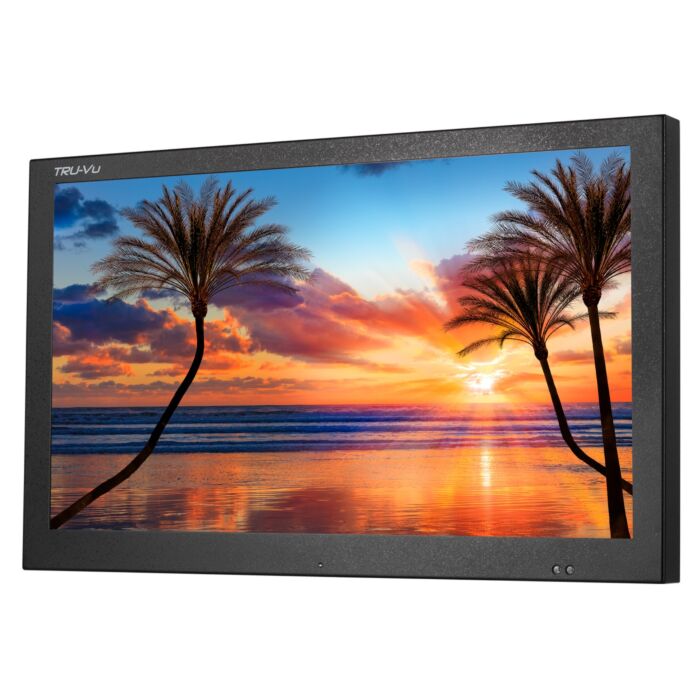

Tru-Vu SRM-21.5R-MV 21.5” Sunlight Readable HD LCD Monitor
*Product is discontinued, Replacement Option: SRMH-21.5Z
The SRM-21.5R-MV Sunlight Readable HD LCD monitors are designed to operate in direct bright sunlight, or in other high ambient-light conditions.
The SRM-21.5R-MV Series Sunlight Readable HD LCD monitors are designed to operate in direct bright sunlight, or in other high ambient-light conditions. These state-of-the-art monitors produce over 1,000/1,500 nits of brightness (vs. 250-300 nits for standard monitors). This results in amazingly bright, crystal-clear HD images, even with direct, bright sunlight on the face of the screen. The SRM-21.5 Series Sunlight Readable monitors are ideal for use in a wide range of industrial, law enforcement, aviation, marine, military, inspection, advertising and transportation applications where viewability in direct bright sunlight is crucial.
All Tru-Vu industrial LCD monitors are specifically designed for use in demanding applications. Every Tru-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability. Our 3-Year Warranty ensures you of reliable worry-free operation.
Features:
Applications:
|
SRM-21.5R-MV
|
|
| LCD Panel |
21.5” Color MVA Panel
|
| Resolution | 1920 x 1080 (1080p/60 Full HD) |
| Viewing Area |
18.76” x 10.55” (476.6 x 268.1 mm)
|
| Pixel Pitch |
0.248mm
|
| Display Colors |
16.7 Million
|
| Aspect Ratio |
16:9
|
| Brightness |
1,000 nits
|
| Contrast Ratio |
5,000:1
|
| Viewing Angle | 178° (H) x 178° (W) |
| Response Time | 16 msec Trf |
| Control |
OSD (On-Screen Display) via Pushbuttons
|
| Video Input |
VGA, HDMI, DisplayPort
|
| Video Inputs | VGA, HDMI, DisplayPort (DVI via optional HDMI to DVI adapter) |
| Power Requirement |
12 VDC / 90-240 VAC with included power brick
|
| Power Consumption | 45W |
| Enclosure |
Powder-Coated Steel
|
| Mounting | 100 x 100 mm VESA Mount Holes (Tabletop Base Optional) |
| Operating Temperature |
14° to 122° F (-10 to 50° C); Humidity: 5-90% Non-Condensing
|
| Dimensions |
20.90” (W) x 12.67” (H) x 2.16” (D) (531 (W) x 322.0 (H) x 55.0 (D) mm)
|
| Weight |
10.3 lbs (4.67 kg)
|
| Included Accessories | HDMI Cable, VGA Cable, HDMI-to-DVI Adapter, Remote Control |
| Options | Tabletop Base, Speakers |
| Warranty | 3 Years |
