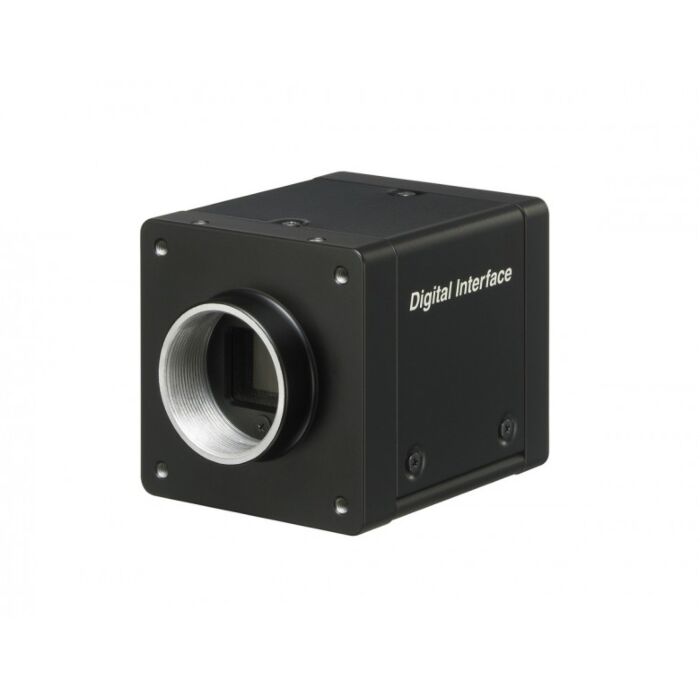

Sony XCL-S900 (XCLS900) 9M Progressive Scan Monochrome CameraLink Camera

High Resolution HAD CCD CameraLink Camera.
SKU
Sony XCLS900

A new top-of-the-line XCL CameraLink Camera Series in monochrome and color by Sony. With their superb resolution and high frame rates, these new cameras deliver a level of exceptional picture quality that analog cameras cannot achieve.

The new XCL-S Series cameras incorporate a 1/1-type EXview HAD CCD II™ sensor which provides extremely high sensitivity. In addition to inheriting many convenient functions from Sony’s XCL Series, such as Bulk Trigger and Sequential Trigger modes, these new cameras also incorporate some unique features including Shading Correction, Defect Correction, and Temperature Readout.

These new advanced features and benefits make XCL-S Series cameras ideal when the highest inspection quality is demanded for display panels, semiconductors, solar panels, PCBs (Printed Circuit Boards), and
pharmaceutical applications.

Image Device 1/1-type progressive scan IT CCD
Effective Pixels (H x V) 3388 x 2712
Cell size (H x V) 3.69 x 3.69 µm
Output Pixels (H x V) 3384 x 2704
Resolution 3388 x 2712
Frame Rate 18 fps (4ch), 9 fps (2ch), 5 fps (1ch)
Minimum Illumination 6 lux
Sensitivity F8 (400 lux, Gain: 0 dB)
S/N Ratio More than 50 dB
Gain Auto, Manual: 0 dB to +18 dB
Shutter Speed Auto, Manual: 2s to 1/1000,000s
Readout Modes Normal, Binning (2 x 1, 1 x 2, 2 x 2), Partial scan
Readout Features Binnarization, Gamma (variable), Built-in test pattern, LUT, 3 x 3 filter
Synchronization Hardware trigger, Software trigger
Trigger Modes

Edge detection, Pulse width detection, Bulk trigger, Sequential trigger

User Set 16 channels
User Memory 32 kbytes +64 bytes x 16ch
Other Features Shading correction, Defect correction, Temperature readout
Video Data Output Digital monochrome 8, 10, 12-bit, RGB color (8 bit x 3)
Digital Interface LVDS
Output Data Clock 4ch: --- (1 tap), 84 MHz (2 tap)
2ch: 84 MHz (1 tap), 42 MHz (2 tap)
1ch: 27 MHz (1 tap), 27 MHz (2 tap)
Digital Input/Output IN (x2), OUT (x2), IN/OUT (x2)
Lens Mount C mount
Power Requirements DC +12V (+10.5V to +15.0V)
Power Consumption 6.0W
Operating Temperature -10°C to +45°C (14°F to +113°F)
Performance Guarentee Temperature 0°C to 40°C (32°F to +104°F)
Storage Temperature -30°C to +60°C (-22°F to +140°F)
Operating Humidity 20% to 80% (no condensation)
Storage Humidity 20% to 95% (no condensation)
Vibration Resistance 10 G (20 Hz to 200 Hz)
Shock Resistance 70 G
Dimensions (W x H x D) 50 x 50 x 57.5 mm (2 x 2 x 2 3/8 inches) (excluding protrusions)
Mass 181g (5.4 oz)
Regulations UL60950-1, FCC Class A, CSA C22.2-No.1, IC Class A Digital Device, CE: EN61326 (Class A), AS EMC: EN61326, VCCI Class A, KCC
Supplied Accessories Lens mount cap (1), Operating Instructions (1)
