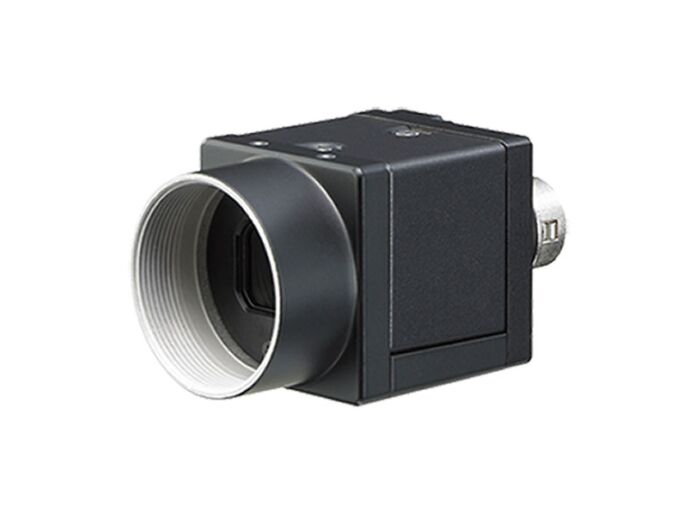

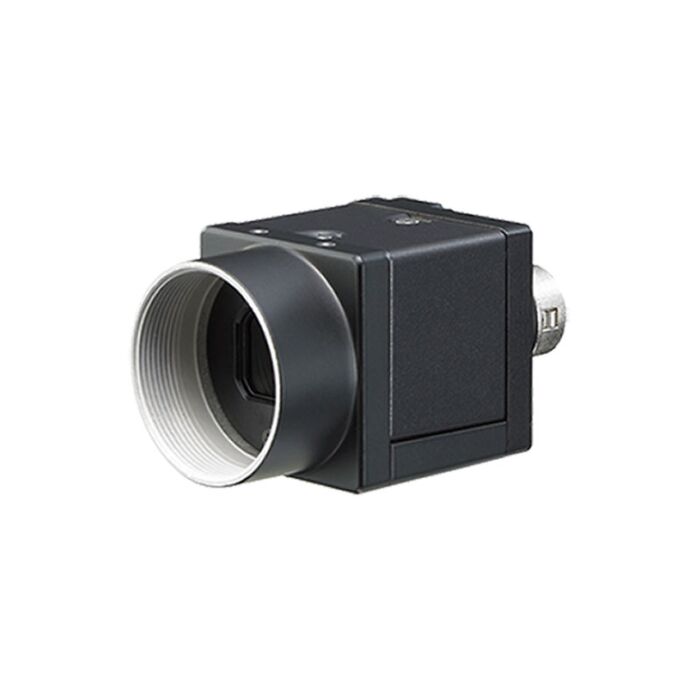

  • Sony XCL-C500C | CameraLink Camera Image #1
  • Sony XCL-C500C Back View Image

Sony XCL-C500C (XCLC500C) Color Progressive Scan CameraLink Video Camera

Quick Overview

2,456 pixels x 2,058, 2/3"-type progressive scan IT CCD Digital PoCL.

Sony has made it easier than ever for customers to migrate from analog to digital with the introduction of the new COLOR PoCL camera, the XCL-C500C. Featuring 5M resolution of 2,456 x 2,058 effective pixels, the XCL-C500C camera offers exciting new options for a wide array of applications, including Intelligent Transportation Systems, machine vision and sports shooting. The XCL-C500 camera is equipped with several unique features, including Shading Correction, Defect Correction and Temperature Readout.


  • Shading Correction: Minimizes uneven image intensity caused by lighting conditions.
  • Defect Correction: Automatically minimizes defective pixels directly inside the camera.
  • Temperature readout: Eliminates the need for a separate sensor and simplifies system configuration.
  • Memory Channel: Up to 16 sets of camera parameters can be stored in addition to the factory default settings.
  • Bulk Trigger Modes: Allows the camera to capture up to 16 images in rapid succession using a single hardware or software trigger.
  • Sequential Trigger Mode: Allows the camera to capture a single image using successive setups stored in the memory channel.
  • Specifications
    Image sensor 2/3-type progressive IT CCD
    effective pixels 2,456 x 2,058
    Cell size (H xV) 3.45 μm x 3.45 μm
    Output pixels (H xV) 2,448 x 2,048
    Sensitivity F8 (400 lx, Gain:0 dB)
    Lens Mount C mount
    Frame rate 15 fps
    Gain Auto, Manual: 0 dB to +18 dB
    Trigger Shutter 2 s to 1/100,000 s
    Partial Scan H: 16 to 2456 V: 480 to 2058 Steps of 2
    Binning 2 x 1, 1 x 2, 2 x 2
    White Balance One push WB. Manual
    Dimensions (W x H x D) 29 x 29 x 30 mm (1 3/16 x 1 3/16 x 1 3/16 in)
    Weight 56 g (2.0 oz)
    Operating Temperature -5°C to +45° C (23°F to +140°F)
    Storage Temperature -30°C to +60°C (22°F to +140°F)
    Operating Humidity 20% to 80% (no condensation)
    Storage Humidity 20% to 95% (no condensation)
    Vibration Resistance 10 G (20 Hz to 200 Hz)
    Shock Resistance 70 G
