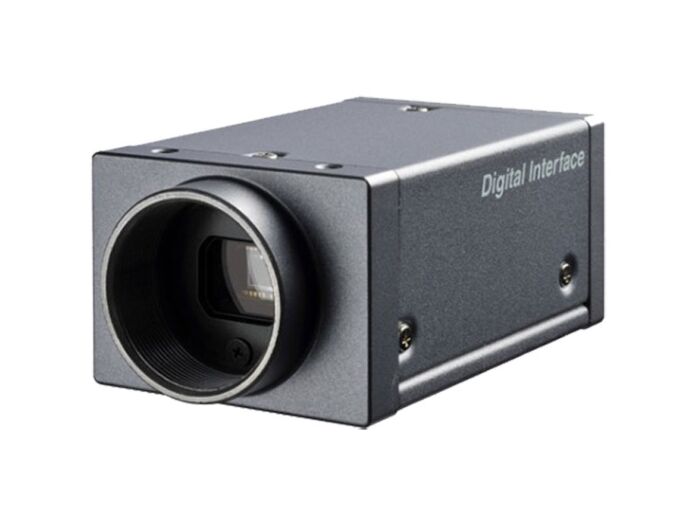

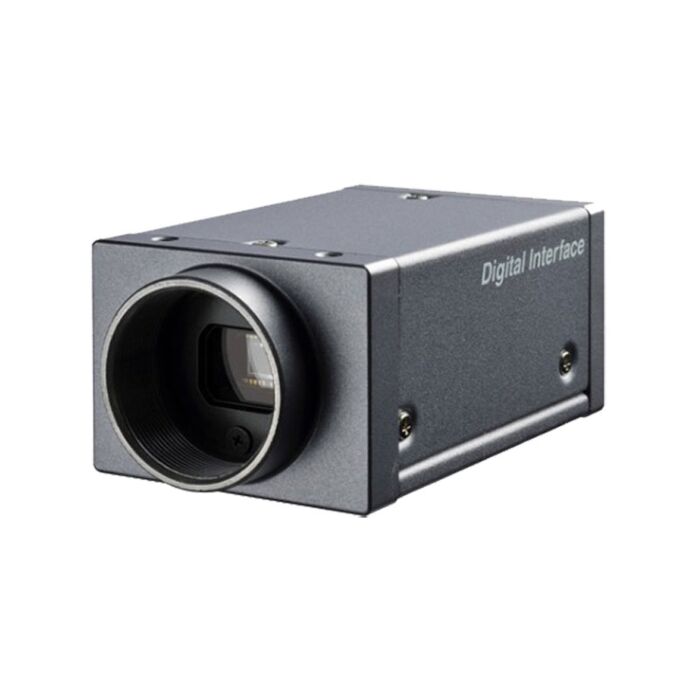

Sony XCG-U100E (XCGU100E) GigE Camera
1600 pixels x 1200 pixels, 1/1.8"-type PS IT CCD, 15 fps, Gigabit Ethernet Camera. Available in Monochrome (Black & White).
SKU
XCGU100E
Sony continues to be on the cutting edge of camera technology with the latest addition to its industrial camera line up. The UXGA monochrome GigE cameras incorporates the GigE Vision interface which is specifically standardized for machine vision applications based on Gigabit Ethernet technology. In accordance with the growing demand for large scale systems, this interface enables the cameras to transfer a large amount of data over long distances. The use of an Ethernet cable and availability of a wide variety of peripheral devices contribute to significant cost-cutting benefits when designing a complete vision system.
Features:
|
Image Device
|
1/1.8-type progressive scan IT CCD |
| Cell Size (H x V) | 4.4 x 4.4 μm |
| Std. Picture Size (H x V) | 1,600 x 1,200 |
| Resolution depth | 8/10/12 bits/pixel |
| Lens mount | C mount |
| Std. Frame Rate | 15 fps |
| Digital interface | 1000 BASE-T (GigE Vision compatible) |
| Sensitivity - 0dB | 400 lx at F5.6 |
| Min. Illumination F1.4 +18dB | 1 lx |
| Gain control | Manual 0 to +18dB, Auto gain |
| Readout mode | Normal/Binning/Partial scan |
| Binning | Vertical (1x2) |
| Partial scan | Vertical/Horizontal |
| Shutter speed | 2 to 1/100,000 s |
| External trigger shutter | Pulse-edge detection mode, Pulse-width detection mode, Special trigger mode (Bulk trigger mode/Sequential trigger mode) |
| Memory channel | 16 channels |
| Readout features | Binnarization, Gamma correction (LUT), Built-in test pattern |
| Power requirements | DC+10.5 to +15.0 V |
| Power consumption (Max.) | 3.1 W |
| Dimensions | 1 3/4 x 1 5/16 x 2 3/4 inches (44 x 33 x 67.5 mm) |
| Weight | Less than 5 3/4 oz (145 g) |
| Operating temperature | 23 to 113 °F (-5 to 45 °C) |
| Storage temperature | -22 to 140 °F (-30 to 60 °C) |
| Operating humidity | 20 to 80% (no condensation) |
| Storage humidity | 20 to 95% (no condensation) |
| Vibration resistance | 10 G (20 to 200Hz) |
| Shock resistance | 70 G |
| Supplied accessories | Lens mount cap, Operating instructions |
| Applications | Factory Automation |
