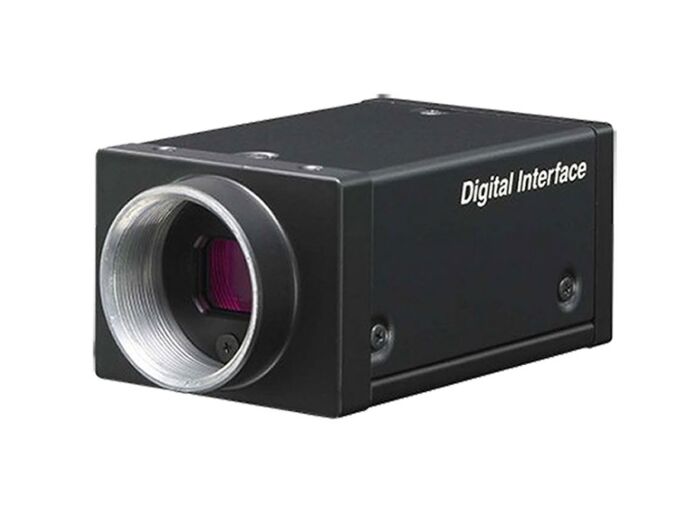

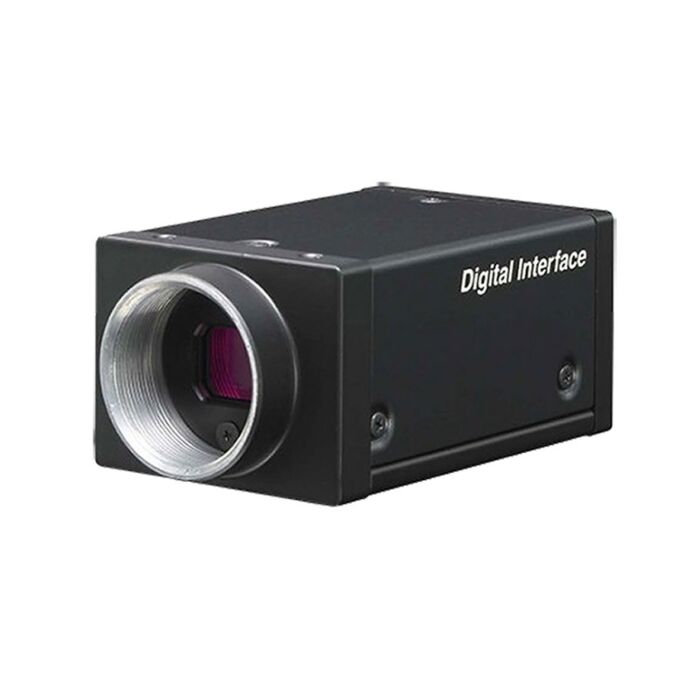

Sony XCG-5005CR (XCG5005CR) 5MP Raw Color GigE Camera
2448 pixels x 2048 pixels, 2/3"-type PS IT CCD, 15 fps, Gigabit Ethernet Camera. Available in Raw Color.
This camera is discontinued in June 2018! Call your Rep to get yours today.
The new XCG camera uses a CCD with a color mask (commonly called a "Bayer filter") and output the raw color pixel values in 8, 10 or 12 bit to be converted to a color image on a computer. The XCG-5005CR incorporates a 2/3-type progressive scan IT CCD image sensor, boasting approximately 5 million effective pixels for exceptional picture quality, at 15 fps.Other features, such as Partial Scan Readout and Bulk/Sequential Trigger modes make these new High Speed GigE cameras ideally suited for Intelligent Traffic and machine vision applications.
Featuring Full Progressive Scan, Complementary Color Mosaic Color Filter, and High Sensitivity, the new XCG-U5005CR high speed GigE camera is ideal for Intelligent Traffic, Machine Vision, and Industrial applications.
Features:
EIAJ -12 pin (power, trigger-in, strobe-out, isolated digital I/O)
| Image sensor | 2/3-type progressive scan IT CCD |
| Standard output pixels | 2,448H x 2,048V |
| Standard frame rate | 15 fps |
| Cell size (H x V) | 3.45 x 3.45 μm |
| Color filter | Complementary color mosaic |
| Minimum illumination | 1 lx (F1.4, +18 dB, Shutter:1/15s) |
| Sensitivity | 2000 lx at F8 (0 dB) |
| Gain | Auto/Manual (0 dB to +18 dB) |
| Shutter speed | 2 sec to 1/100,000 sec |
| Video output resolution depth | RAW 8: 8 bits/pixel RAW 10: 10 bits/pixel RAW 12: 12 bits/pixels |
| Readout modes | Normal, Partial scan |
| White balance | One Push WB, Manual |
| Readout features | Gamma (variable), Built-in test pattern |
| Synchronization | Hardware trigger / Software trigger, Trigger start / Trigger start and exposure duration, Bulk / Sequential trigger mode, Trigger inhibit setting, Trigger delay setting/Strobe controll |
| Memory channel | 16 channels for parameter settings |
| User memory | 64 Byte |
| Video output | Gigabit Ethernet(1000Base-T) |
| Digital I/Os | ISO IN (1x), ISO OUT (1x), TTL OUT (1x) |
| Lens mount | C mount |
| Power requirements | DC +12 V (+10.5 V to +15.0 V) |
| Power consumption | 4.3 W |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -30°C to +60°C (-22°F to +140°F) |
| Operating humidity | 20% to 80% (no condensation) |
| Storage humidity | 20% to 95% (no condensation) |
| Vibration resistance | 10 G (20 Hz to 200 Hz) |
| Shock registance | 70 G |
| Dimensions (W x H x D) | 44 x 33 x 67.5 mm (not including protruding parts) |
| Mass | 145 g |
| Regulations | UL2044, FCC Class A, CE: EN55022, AS/NZ: EN55022, VCCI: Class A |
