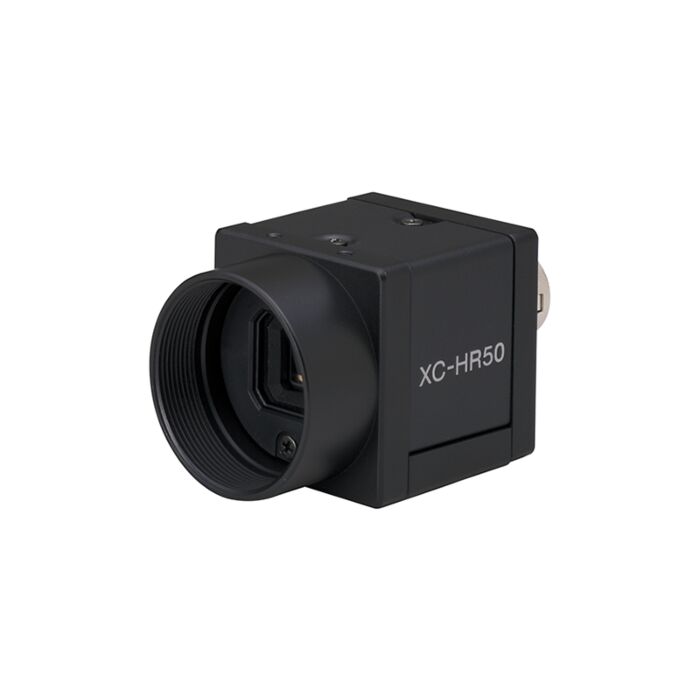

  • Sony XCHR50 | Progressive Scan Camera Image #1

Sony XC-HR50 Analog Camera

Quick Overview

659 x 494, 60 full fps, 1/3 type IT PS CCD, C-Mount Monochrome (Black & White) Analog Camera.
Overview

When high quality imaging and speed are of the essence, turn to the compact champion, XC-HR50, for the solution. The new XC-HR50 is a compact, lightweight, black and white video camera incorporating the latest 1/3 Type Interline Transfer (IT) Progressive Scan CCD with HAD technology providing 659 (H) x 494 (V) effective picture elements and incorporating a C-mount type lens mount. The XC-HR50 can capture high quality images at fast frame rates (twice the speed of Sony's popular XC-55 camera) and is ideal for demanding applications such as semiconductor production and high speed assembly line inspection.

Features:

  •  Compact and lightweight
     1 3/16 x 1 3/16 x 1 3/16 inches, 1.8 oz
     (29 (W) x 29 (H) x 30 (D) mm, 50 g)
  •  High frame rate
     60 full frames/s progressive scanning; continuous or trigger
  •  High-rate scanning for high vertical scanning
     frequency: Approx 200 frames/s
  •  Progressive scanning, square pixels
  •  Minimum illumination of 1 lux at F1.4
  •  High S/N ratio: 58 dB
  •  Electronic shutter function (Off to 1/30,000 s)
  •  External trigger shutter (1/4 to 1/100,000 s)
  • Specifications
    Image Device 1/3 type IT progressive scan CCD
    Effective Picture Elements 659 (H) x 494 (V)
    Scanning System 60 Hz Non-Interlaced
    Lens Mount C Mount
    Scanning System 60 Hz Non-Interlaced
    Sync. System Internal/External (auto)
    External Sync Signal HD/VD (2 to 5 Vp-p)
    Video Output 1 Vp-p, Sync negative, 75 ohms unbalanced
    Horizontal Resolution 500 TV lines
    Minimum Illumination 1 lx (F1.4, Manual Gain MAX)
    S/N Ratio 58 d
    Gain Control Fixed, Manual
    Shutter Normal: OFF to 1/30,000 s with switches Restart/Reset / Async External Trigger, Non-reset, reset, switches or with trigger pulse width (1/100,000 to 1/4 s)
    Gamma 1 (Fixed)
    Output Connector DC IN, SYNC, VIDEO: multi 12-pin
    Power Requirements DC + 12V (+10.5 V - + 15.0V)
    Power Consumption 1.8 W
    Operation Temperature -5° C to 45° C (23 to 113° F)
    Storage Temperature -30° C to 60° C (-22 to 140° F)
    Operating Humidity 20 to 80 % (no condensation)
    Storage Humidity 20 to 95% (no condensation)
    Vibration 10 G (20 ~ 200 Hz)
    Shock Resistance 70 G
    Dimensions 29 (W) x 29 (H) x 30 (D) mm / 1 -3/16 x 1 -3/16 x 1 -3/16 inches
    Weight 50 g / 1.8 oz
    Regulatory UL 6500, FCC Class A Digital Device, CE (EN61326/97+A1/98),AS4251.1+AS4252.1
    No Video available

    Sony XC-HR50 Spec Sheet
