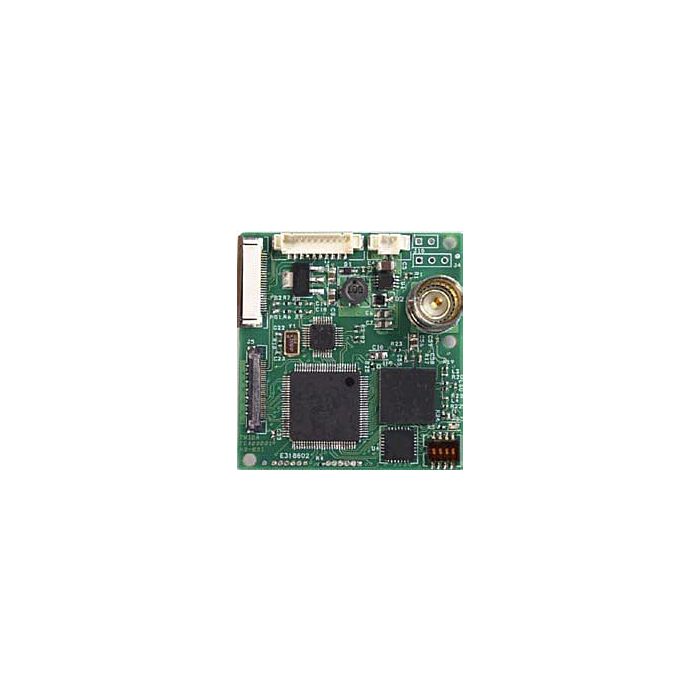

Aegis SDI/EH Interface Board

Sony SDI Interface
SKU
SDI/EH Interface Board

Features:

  • Interface Board for Sony FCBEH6300FCBEH3300FCBEH3400FCBEH3150FCBSE600 (requires 5V) cameras
  • SDI and HDSDI video output
  • TTL or RS232 VISCA Control
  • Video format selection by micro switch
  • 6 to 12 VDC protected power supply for interface and camera
Digital Video Output
SDI : 576i, 480i
HD-SDI: 1080 60i, 1080 50i, 720 60p, 720 50i
Analog Video Output
VBS : PAL, NTSC, YC
Video Output Configuration
Micro switch
Camera Setting
RS232 , RX , TX , VISCA
Power
6 to 12 VDC, 6 W ( including camera)
Environmental
0°C to 60°C
Storage
-20°C to 60°C
Dimensions
48 ( H)x 45 (L)x 20 ( P)
