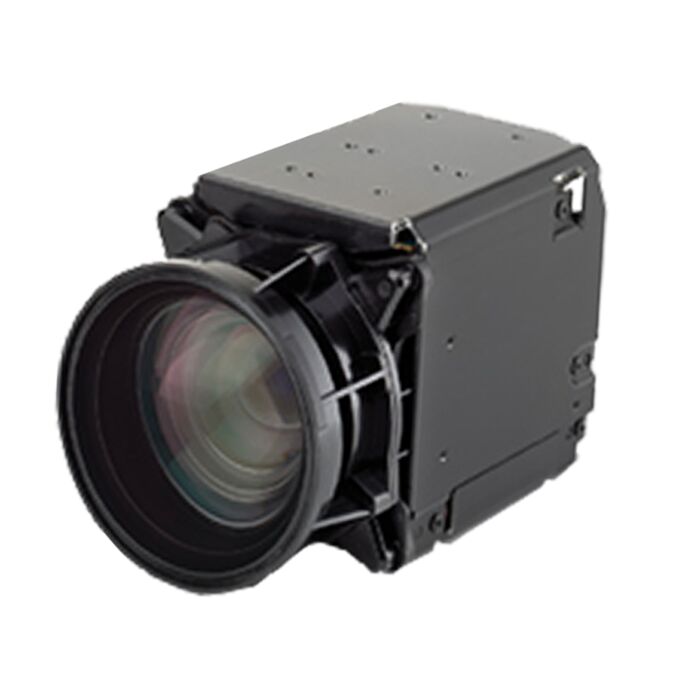

Sony FCB-ER8300 (FCBER8300) 12x Digital Zoom 4K HD Block Camera

*Product is discontinued, Replacement Option: Sony FCB-ER8530

The 4K Sony FCB-ER8300 block camera offers 4X the resolution of 1080 Full HD video with 73.4 degree horizontal field of view. A 20x optical zoom allows for recognition and identification. Sony FCB-ER8300 4K camera features include Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor/Auto).

SKU
FCBER8300

Sony has introduced the 4K FCBER8300 (FCB-ER8300). Designed for several applications including but not limited to drone camera, industrial applications, Pipe Inspection, and security. When shooting in broadcast environments the FCBER8300 (FCB-ER8300) delivers true 4k resolution measuring in at 3840 x 2160 pixels at 30 frames per second (fps).

Sony has brought the imaging industry a miniature behemoth of 4K filming. The compact form and low-power consumption allow for easy pan, tilt, zoom integration at four times the resolution of 1080 FHD videos.

Featuring full Sony’s latest 1/2.3-type Exmor R CMOS with QFHD (3,840 x 2160), 12x Optical Zoom (144x Digital Zoom w/SRZ), the new FCB-ER8300 (FCBER8300) model is a compact High Definition block camera which is ideal for applications requiring situational awareness when zoomed out and excellent detail for identification when zoomed in. This new block is also ideal for security surveillance in casinos, halls, airports and stadiums as well as Intelligent Traffic systems for railways, highways and parking. Key features include ePTZ, Super Resolution Zoom (SRZ), sharpness and color reproduction in low light and new Area Specific Noise Reduction.

Other FCB-ER8300 features include but are not limited to:

  • OEM color block camera with 1/2.3" CMOS sensor and 4K resolution
  • Integrated zoom lens (144x optical, 12x digital)
  • Programmable I/Os
  • ePTZ
  • Super Resolution Zoom (SRZ)
  • Advanced Noise Reduction
  • Auto ICR
  • Visibility Enhancer
  • Image processor for full integration with sensor and lens with numerous automatic features (e.g. distortion correction, shading correction, chromatic aberration correction, MTF compensation, adaptive noise reduction)


  • Applications:

  • Drone Camera
  • Pipe Inspection
  • Security
  • Underwater Applications
  • Medical Applications
  • Industrial
  • Broadcast Camera
  • Image Device
    Progressive scan CMOS Image Sensor 1/2.3 type "Exmor R"
    Effective Pixels
    Approx. 8.93 Mega Pixels
    Digital Zoom
    12x (144x with optical zoom)
    Horizontal Viewing Angle 73.4° (wide end) to 6.4° (tele end)
    Minimum Object Distance 10 mm (wide end) to 1,500 mm (tele end) (Default: 300 mm)
    Sync System Internal
    Electronic Shutter 1/1 s to 1/10,000 s, 22 steps
    White Balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor/Auto)
    Gain Auto/Manual (0dB to 33dB) Max. Gain Limit (9dB to 33dB)
    Wide Dynamic Range No
    Backlight Compensation Yes
    Privacy Zone Masking Yes
    Character Generator 20 characters/line, max. 11 lines
    Focus System Auto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF,Focus compensation in ICR on
    Camera Operation / Zoom Switch 12x (144x with optical zoom)
    Picture Effects E-Flip, Black & White, Mirror image, Color enhancement
    Exposure Control Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation
    Lens Value 12x optical zoom, f = 3.9 mm (wide) to 46.8 mm (tele), F1.8 to F2.0
    Minimum Illumination Color: 0.75 lx (F1.8, AGC on, 1/30 s) High Sensitivity Mode - Color: 3 lx (F1.8, AGC on, 1/30 s) Normal Mode
    Camera Control Interface VISCA (CMOS 3.1 V level) Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 57.6 Kbps, 115.2 Kbps, Stop bit: 1 bit
    Dimensions (W x H x D) 60mm x 64mm x 105mm
    Weight 385 grams
    Operating Temperature -5 to +60 (°C) / 20 (%) to 80 (%) Absolute Humidity: 36 (g/m3)
    Storage Temperature -20 to +60 (°C) / 20 (%) to 95 (%) Absolute Humidity: 36 (g/m3)
    Operating Humidity 20% to 80% Absolute humidity : 36[g/m3]
    Storage Humidity 20% to 95% Absolute humidity : 36[g/m3]
    Power Consumption 2.8W (Typ. DC IN 6 - 12V, steady state)
    Power Requirements 6.0V ~ 12.0V DC
