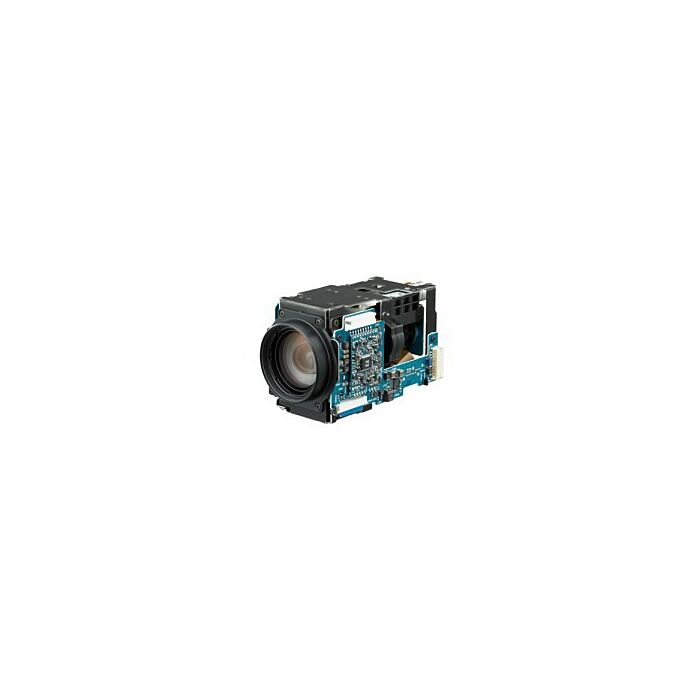

Sony FCB-IX45C (FCBIX45C) 18x Zoom Color Block Camera
Sony is expanding its comprehensive FCB camera family with the addition of its new FCB-IX "C version" cameras that combine renowned FCB picture quality, high sensitivity and an affordable price. The FCB-IX45C color block camera is equipped with a 1/4 type CCD featuring Sony's Super HAD® technology and incorporates the same specifications, features, dimensions, and mounting hole position of the FCB-IX45A/IX45AP and FCB-IX47A/IX47AP cameras
SKU
FCBIX45C-Repair Charge
Inheriting the outstanding features of Sony's previous FCB-IX A version cameras, the new FCB-IX45C block camera is ideal for numerous applications such as low vision systems, mobile police cars, pipe inspection, photo booths and document stands.
Features:
Applications:
| Camera Specifications | Detail: |
|---|---|
| Image Device | 1/4-type Super HAD CCD |
| Effective Pixels | Approx. 380000 |
| Digital Zoom | 4x (72x with optical zoom) |
| Horizontal Viewing Angle | 48° (wide end) to 2.8° (tele end) |
| Minimum Object Distance | 10 mm (wide end), 800 mm (tele end) |
| Sync System | Internal |
| Electronic Shutter | 1/60 to 1/10000 s |
| White Balance | Auto ATW Indoor Outdoor One-Push Manual |
| Gain | Auto / Manual (-3 to 28 dB 2 dB steps) |
| EV Compensation | -10.5 to +10.5 dB (1.5 dB steps) |
| Backlight Compensation | On/Off |
| Focus System | Auto (Sensitivity: normal and low) One-Push AF Manual Infinity Interval AF Zoom Trigger AF |
| Camera Operation / Zoom Switch | Zoom Tele Zoom Wide |
| Picture Effects | Neg. Art Black & White Mirror Image E-Flip |
| Exposure Control | Auto Manual Priority mode Bright EV compensation Backlight compensation |
| Video Output Specifications | Detail: |
|---|---|
| Lens Value | 18x |
| S/N Ratio | More than 50 dB |
| Minimum Illumination | 1.0 lux |
| Video Output | VBS: 1.0 Vp-p (sync negative) Y/C Output |
| Signal System | NTSC |
| Horizontal Resolution Value | 470 TV Lines |
| Interfaces Specifications | Detail: |
|---|---|
| Camera Control Interface | VISCA (TTL/RS-232C signal level) Baud rate: 9.6 Kb/s 19.2 Kb/s 38.4 Kb/s Stop bit: 1/2 selectable |
| General Specifications | Detail: |
|---|---|
| Dimensions (W x H x D) | 1 15/16 x 2 1/4 x 3 3/4 inches (48.2 x 56.6 x 92.3 mm) |
| Weight | 6.0 oz (170 g) |
| Operating Temperature | 32 to 122 °F (0 to 50 °C) |
| Storage Temperature | -4 to 140 °F (-20 to 60 °C) |
| Power Consumption | 1.5 W (motors inactive) 2.0 W (motors active) |
| Power Requirements | 6 to 12 V DC/ |
