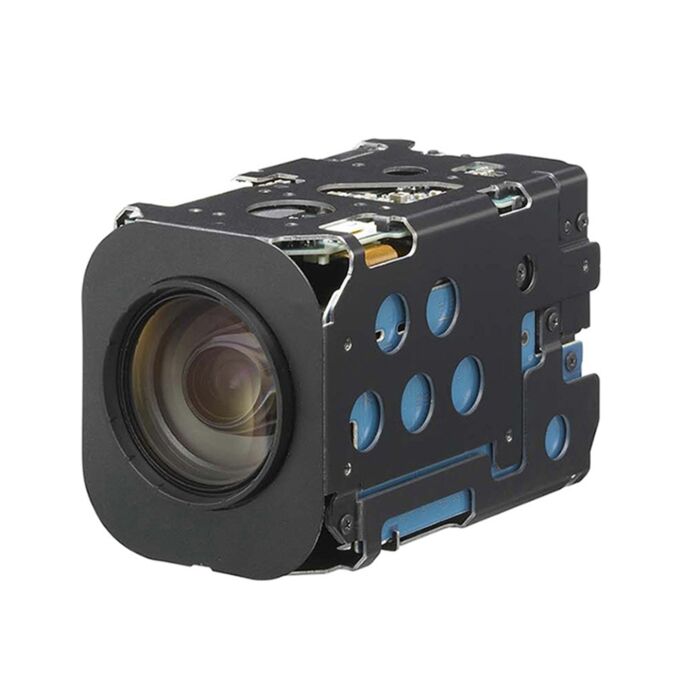

  • Sony | FCB-EX1020 | NTSC Camera Image #1

Sony FCB-EX1020 (FCBEX1020) NTSC 36x Zoom (768 x 494) Color Block Camera

Quick Overview

768 pixels x 494p, 1/4 type EXview HAD™ CCD (Progressive Scan), 36x zoom, NTSC Block Camera. This camera replaced the FCBEX1010.


The FCB-EX1020 (FCBEX1020) color block camera incorporates ¼ type ExView HAD™ CCD along with exceptional picture quality and high zoom capabilities (432x w/optical zoom). In addition, the new FCB-EX1010 is the first, in this exceptional camera series, to feature a 36x zoom lens with Wide-D, horizontal resolution of 530 TV lines, improved motion detection, spherical privacy zone masking with mosaic effect, and enhanced multi lines (more than two) for title. The FCB-EX1020 also features a slow AE Response Function that automatically slows the rate at which the exposure level changes. The rate can be set up to 32 times slower than when the Full Auto mode or Priority mode is selected. Ideally suited for military applications.

The FCBEX1020 is the replacement camera for the FCBEX1010. The user can zoom in on small or distant objects with exceptional clarity employing the Sony FCBEX1020 (FCB-EX1020) block camera. This camera allows users to maximize security/surveillance in professional and safe ways. Aegis offers all the interface boards, housings, cables necessary for complete integration.

Other FCB-EX1020 features include but are not limited to:

  • 1/4 type EXview HAD™ CCD
  • True Progressive Scan
  • IP-Ready Digital Output (ITU-R BT656)
  • Temperature readout
  • Color Enhancement
  • Auto Wide-D Mode
  • Stable Zoom
  • Outdoor Auto Mode
  • Sodium Vapor Lamp Mode
  • 2D/3D Noise Reduction
  • Auto ICR
  • Spherical Zone Masking
  • Motion Detection Alarm
  • Slow AE Response

  • Applications:

  • Traffic
  • Surveillance
  • Military Applications
  • Law Enforcement
  • Border Patrol
  • Monitoring
  • Video Conferencing
  • Low Vision Applications
  • Specifications
    Image Sensor
    1/4 type EXview HAD™ CCD (Progressive Scan)
    Signal system
    Number of total pixels
    380,000 pixels
    36x optical zoom, f=3.4 mm (wide) ~ 122.4mm (tele)
    Digital zoom
    12x (432x with optical zoom)
    Horizontal Resolution
    550 TV Lines
    Angle of view (H)
    57.8° (wide end) to 1.7° (tele end)
    Minimum Working Distance
    10 mm* (wide) ~ 1,500 mm (tele) *Default: 320 mm
    Video Output Analog: VBS: 1.0 Vp-p (sync negative), Y/C
    Digital: Y/Cb/Cr 4:2:2 (ITU-R BT656 Style)
    Sync system Internal / External (V-lock)
    Minimum illumination 1.4 lx (typical) (F1.6, 50 IRE)
    S/N ratio More than 50 dB
    Camera Control Interface VISCA (TTL signal level) Baud Rate: 96Kb/s, 19.2 Kb/s, 38.4
    Kb/s Stop bit: ½ bit selectable
    Electronic shutter 1/1 to 1/10,000 s, 22 steps
    White balance Auto, ATW, Indoor, Outdoor Auto, Sodium Vapor Lamp
    (fix/auto), One-push, Manual
    Gain Auto / Manual/Max. Gain Limit (-3 to 28 dB, 2 dB steps)
    AE control Auto, Manual, Priority mode (shutter priority & iris priority)
    Bright, EV compensation, Slow AE
    Wide-D Dynamic Range Auto Mode
    IS/PS Mode
    Focusing System Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity,
    Interval AF, Zoom trigger AF, Focus Compensation in ICR on
    Day/Night Auto/Manual
    Image Stabilization Yes/ StableZoom up to 43x
    Picture Effects E-Flip, Nega Art, Black & White, Mirror Image, Color
    Title Display 20 characters/line, max. 11 lines
    Camera Mode Display English (default)/ Chinese
    Camera Operation Switch Yes (Zoom Tele, Zoom Wide)
    Storage Temperature -40℃ ~ 60℃
    Operating Temperature -5℃ ~ 60℃
    Power Requirements 6.0 V ~ 12.0 V DC
    Power Consumption 22.6 W (motors active: 4.9 W)
    Weight 230 g
    Dimensions 50.0 (w) x 57.5 (h) x 87.9 (d) mm

    * Features and specifications subject to change without notice. Non-metric weights & measurements are approximate.
