  • Sony FCB-ES8230 | New 4K High Camera Image #1

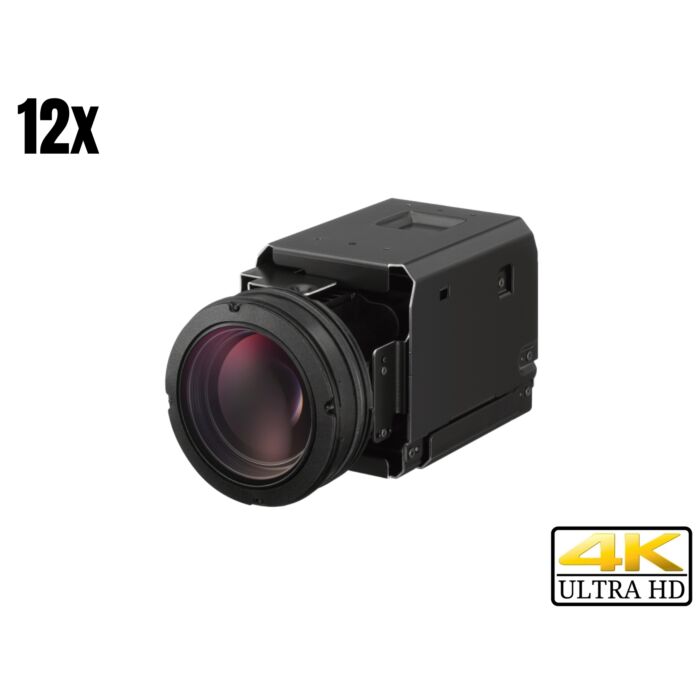

Sony FCB-ES8230 New 4K High Quality 12x Colour Camera Block

Quick Overview

The new FCB-ES8230 represents a new avenue of high quality and 'best in class' images in stunning 4K clarity thanks to the combination of Sony's 1-type Exmor R CMOS sensor, high-quality lens, and Sony unique ISP engine. The FCB-ES8230 is the latest edition to Sony's expanding range of 4K industrial cameras and compliments the recent launch of the FCB-ER8550 and FCB-ER8530 4K camera modules with a product primarily aimed at the broadcast / video industry due to special features such as a thin depth of field capability and - in a first for FCB technology - the incorporation of optical image stabilisation technology, to give rich, very high quality and stable images
Overview

The FCB-ES8230 offers 4K resolution at 30fps together with an integrated 12x Optical Zoom lens but with super-resolution zoom of up to 18x in 4K quality. Additional digital zoom of 12x is also included. The FCB-ES8230 inherits a multitude of features from Sony's world-renowned FCB Series including VISCA command protocol, Auto-ICR and a wide variety of Exposure, White Balance and Focus control functions. These market-leading features are suitable for a variety of demanding applications.



Features:



  • Capture high quality, crisp, clear 4K @30fps images
  • The high-performance 1-type Exmor R CMOS image sensor achieves superb 4K (QFHD) picture quality. Using the latest Sony sensor technology combined with the best optical zoom lens, the FCB-ES8230 produces high-quality images in excellent detail and clarity.
  • Fast, bright lens with rapid 12x optical zoom
  • The high-quality lens offers a bright F2.8 maximum aperture and 12x optical zoom range. Fast zoom operation (from wide end to tele) is ideal for smooth, rapid transitions from wide area coverage to detailed close-ups ensuring critical detail is not missed.
  • Get a steadier picture with optical image stabilization
  • In a first for FCB technology and inherited from our world-leading professional camcorder technology; the FCB-ES8230 comes with a built-in optical image stabilization capability, countering the effects of blurred, shaky images caused by low-frequency vibration and movement.
  • Advanced 2D/3D Noise Reduction
  • Advanced noise reduction technology filters noise from the image for clearer results, especially in low light conditions. Noise reduction can be selected from six steps to suit a wide range of operating environments.
  • Clear vision round the clock with Day/Night
  • Benefit from optimized picture quality in changing light conditions – a frequent challenge in round-the-clock operations. In high sensitivity mode the camera can operate effectively in lighting
  • levels as low as 2lx (50IRE, ICR off, Iris Open, ACG Max (36db, High sensitivity off)) and 0.5 lx (50IRE, ICR off, ACG Max (36db, High sensitivity on)).
  • See more clearly with Visibility Enhancer and De-fog
  • Picture quality is enhanced dynamically and adaptively on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range. There’s also a de-fog feature that allows clearer viewing in foggy or misty scenes.
  • Auto ICR (Auto IR-cut Filter Removal)
  • In low light conditions, the camera automatically switches from day to night mode, removing the IR-cut filter to boost sensitivity for clear pictures in near-darkness.
  • Wide range of features for versatile operation
  • Versatile operation is ensured by a wide range of functions and adjustments, including White Balance modes; Picture effects (E-Flip, Black & White, Mirror Image, Colour Enhancement, Gamma);
  • Privacy Zone Masking; Picture freeze; Shutter Priority; Iris Priority; Slow AE response etc.





Applications:



  • Broadcast
  • Conference
  • Houses of Worship
  • Surveillance
Specifications
Image Sensor Progressive Scan CMOS
Number of Total Pixels 5640x3710
Focal Length 9.3mm to 116mm
Magnification 12x
F-Value f2.8 to f4.5
Zoom Motor Stepping Motor
Focus Motor Moving Coil Linear Motor
Iris Stepping Motor
IRCF Stepping Motor
