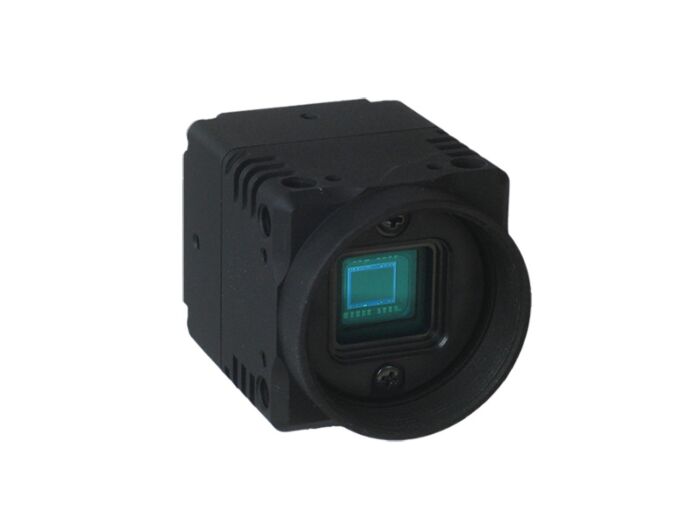

Omron STC-MC33USB Progressive Scan, VGA Color Camera

The STC-MC33USB is an ultra-compact, progressive scan, VGA, USB camera with a 1/3” color CCD.
SKU
STC-MC33USB

It features 60fps, hardware and software triggering image capture, digital zoom and a feature-rich user based menu setup and control.


Features:

  • 1/3" CCD Image Sensor, VGA (0.3 Megapixel)
  • Ultra-Compact Size
  • Hardware & Software Trigger
Image Sensor
1/3” Interline VGA color progressive CCD: ICX424AQ (Sony)
Total Picture Element
692 (H) x 504 (V)
Effective Picture Element
659 (H) x 494 (V)
Chip Size
5.79 (H) x 4.89 (V) mm
Cell Size
7.40 (H) x 7.40 (V) µm
Scanning System
Progressive
Resolution
640 (H) x 480 (V) (Full scanning) 640 (H) x 224 (V) (1/2 partial scanning) 640 (H) x 80 (V) (1/4 partial scanning)
Scanning Methods
Full scanning, 1/1 partial scanning, 1/2 partial scanning, 1/4 partial scanning, Variable partial scanning
Maximum Frame Rate
-
- Full Scanning
59.94 fps (Normal) / 29.97 fps (1/2 clock) / 14.98 fps (1/4 clock) / 89.91 fps (3/4 clock)
- 1/2 Partial Scanning
120.11 fps (Normal) / 60.05 fps (1/2 clock) / 30.02 fps (1/4 clock) / 180.165 fps (3/4 clock)
- 1/4 Partial Scanning
240.22 fps (Normal) / 120.11 fps (1/2 clock) / 60.055 fps (1/4 clock) / 360.33 fps (3/4 clock)
Pixel Frequency
24.5454 MHz (Normal) / 12.2727 MHz (1/2 clock) / 6.13635 MHz (1/4 clock) / 36.818 MHz (3/4 clock)
Video Output
8bit / 10bit / 12bit
Minimum Scene Illumination
18 Lux at F1.2
Sync System
Internal
Electronic Shutter
Auto / Manual (software selectable)
- Normal
1/24,545,455 to 1/59.94 seconds
- 1/2 Clock
1/12,272,727 to 1/29.97 seconds
- 1/4 Clock
1/6,136,364 to 1/14.99 seconds
- 3/4 Clock
1/36,818,181 to 1/89.91 seconds
Gain
Auto / Manual (software selectable)
Gamma
Manual (software selectable)
White Balance
Auto / Manual / One shot (software selectable)
Trigger Mode
Free-run / Edge preset trigger / Pulse width trigger / Start & stop trigger (software selectable)
Input / Output
USB 2.0 High Speed
Power
-
- Input Voltage
+5 Vdc through USB connector (+4.4 to +5.25V)
- Consumption
< 420 mA
Dimensions
28 (W) x 28 (H) x 37 (D) mm (excluding connector)
Lens Mount
CS mount
Weight
Approximately 45g
Interface Connector
USB: mini-B USB connector IO signal: 6pin connector (HR10A-7R-6PB or equivalent)
Temperature
-
- Operational
0 ~ 40 deg. C
- Storage
-30 ~ 65 deg. C
Vibration
20 Hz to 200 Hz to 20 Hz (5 min. /cycle), acceleration 10G, 3 directions 30 min. each
Shock
Acceleration 70G, half amplitude 6 ms, 3 directions 3 times each
Standard Compliancy
EMS: En61000-6-2, EMI: EN61000-6-3 (Class B)
RoHS
RoHS Compliant
